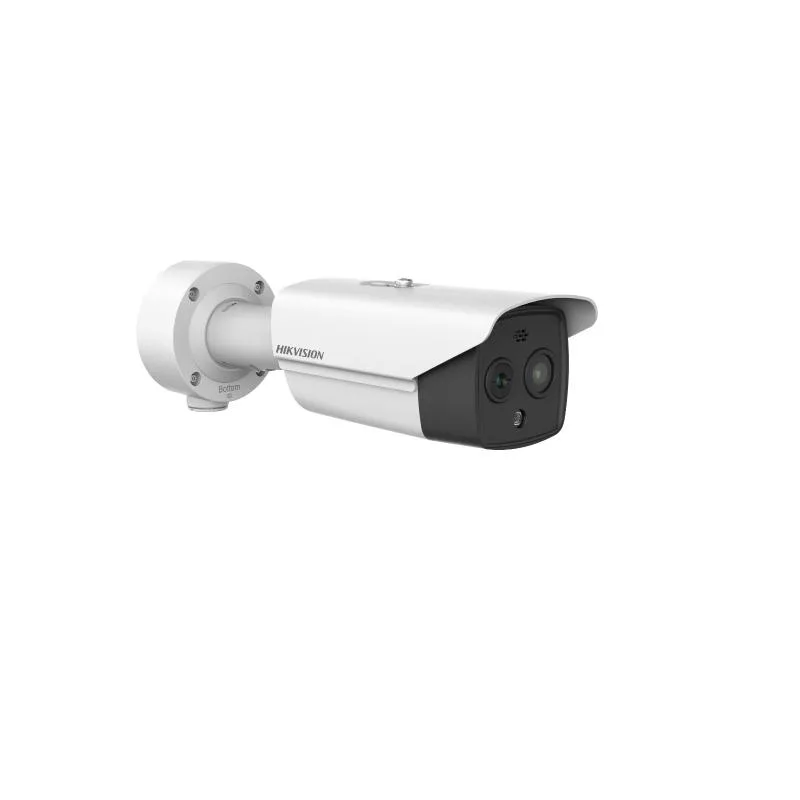

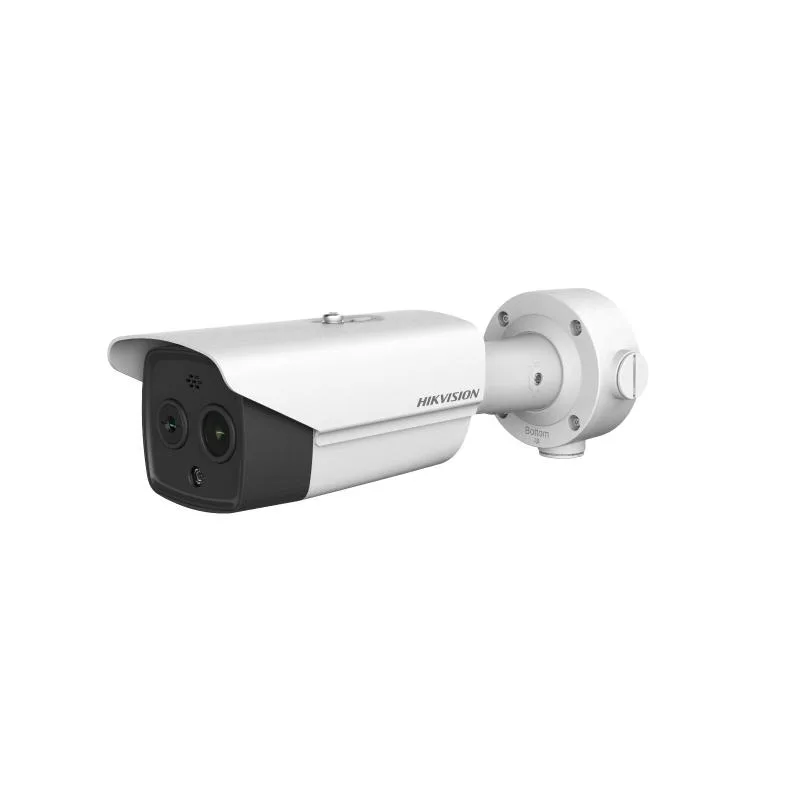

Hikvision DS-2TD2628T-7/QA - Bullet IP kamera
Hikvision

Hikvision DS-2TD2628T-7/QA - Bullet IP kamera

Model kodu
DS-2TD2628T-7/QA
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0). Video content analysis: vehicle/human classification. Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%). Support smoke detection algorithm. Support smoking detection algorithm. Support sun-reflection filter and forklift alarm filter algorithm. Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR. High quality detector with 10 years guarantee

Teknik özellikler

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 256 x 192
Pixel Pitch 12 μm
Spectral Range 8 μm to 14 μm
NETD ≤ 40 mK (@25° C,F# = 1.0)
Focal Length 6.9 mm
IFOV 1.74 mrad
Aperture F1.0
Field of View 24.9° × 18.7° (H × V)
Min. Focusing Distance 1 m
Digital Zoom ×2, ×4
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View 53.0° ×28.0° (H × V)
Focal Length 6.4 mm
Shutter Speed 1 s to 1/100,000 s
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Aperture F 1.6
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.
IR Distance Up to 30 m
IR Intensity and Angle Automatically adjusted
White Light Range Up to 30 m
Visual Alarm Yes. White light alarm with adjustable flashing frequencies
Audio alarm Yes, for three types of audible alarm (VCA and Temperature Exception) 3 preset voice alerts (one for each) 6 importable user-defined voice alerts (6 options shared in the two types)
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20°C to 550°C (-4°F to 1022°F);
Temperature Accuracy Max (±2°C, ±2 %)
General Function Fire detection, smoke detection, smoking detection, sun-reflection filter, forklift alarm filter
Main Stream Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-stream Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240) Optical: 50 Hz: 25 fps (704 × 576, 352 × 288) 60 Hz: 30 fps (704 × 480, 352 × 240)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTPP,TLS
Network Storage MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T)
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 24 VAC ± 25%, 12 VDC ± 25%, 24VDC ± 25%, two-core terminal block PoE (802.3af, class 3)
Power Consumption 24 VAC ± 25%: 0.8 A, Max.8.5 W 12 VDC ± 25%: 0.7 A, Max.8.5 W 24VDC ± 25%: 0.22A to 0.75 A, max. 18W PoE (802.3af, class 3): 36 V to 57 V, 0.24 A to 0.15 A, Max. 8.5 W
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
Protection Level IP67 Standard TVS 4000V lightning protection, surge protection, voltage transient protection IK10-rated housing
Dimensions 321.3 mm × 106.1 mm × 107.0 mm (12.65" × 4.18" × 4.21")
Weight 1550 g (3.41 lb)
VCA Range for Humans 56 m
VCA Range for Vehicles 168 m
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) FCC (ANSI C63.4;FCC Part15 sub B)
Safety CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
Environment CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
Protection IP67: IEC 60529-2013 IK10: IEC 62262-2002

Dokümanlar

Data Sheet - Bi-spectrum Thermography Network Bullet Camera Quick Start Guide - Bi-spectrum Thermography Network Bullet Camera User Manual - Bi-spectrum Thermography Network Bullet Camera General Firmware Update Release notes - Bi-spectrum Thermography Network Bullet Camera
