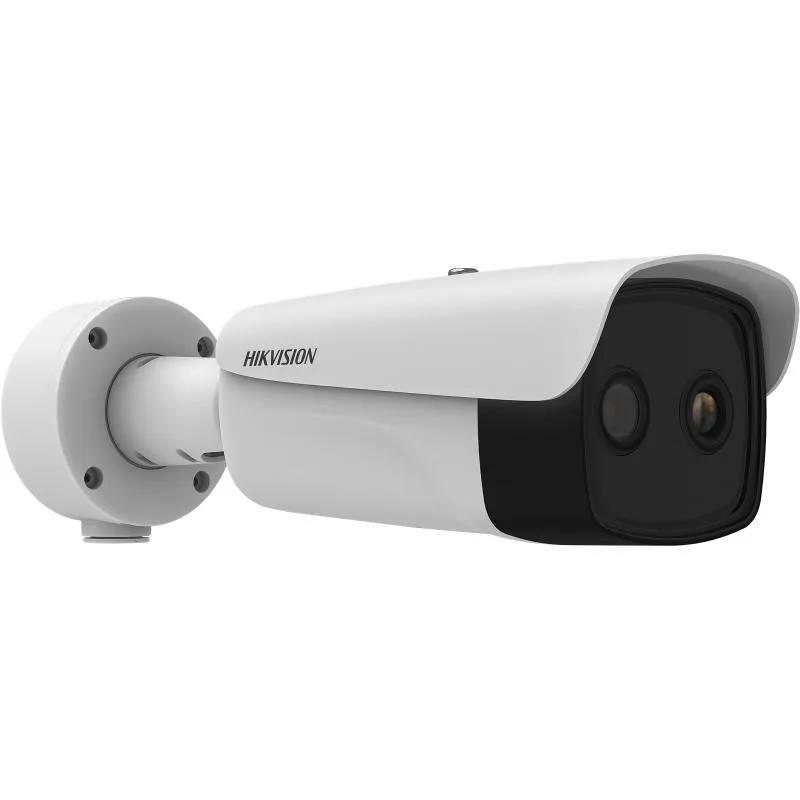

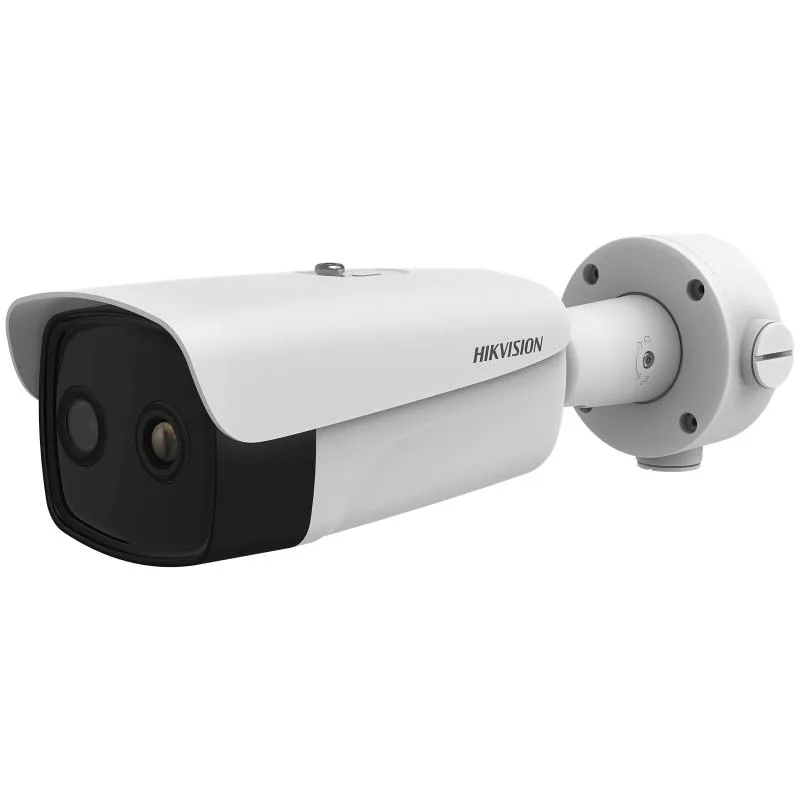

Hikvision DS-2TD2637-7/QY - Bullet IP kamera
Hikvision

Hikvision DS-2TD2637-7/QY - Bullet IP kamera

Model kodu
DS-2TD2637-7/QY
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

384 × 288 resolution, 17 μm, VOx UFPA, NETD ≤ 35 mK (25°C, F1.0). Video content analysis: vehicle/human classification. Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F). Fire detection and smoking detection Algorithm. Support sun-reflection filter algorithm. Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR. High quality detector with 10 years guarantee

Teknik özellikler

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays
Resolution 384 x 288
Pixel Pitch 17 μm
Spectral Range 8 μm to 14 μm
Focal Length 6.5 mm
IFOV 2.62 mrad
Aperture F1.0
Field of View 60° × 44.1° (H × V)
Min. Focusing Distance 0.6 m
Digital Zoom ×2, ×4
Image Sensor 1/2.7" Progressive Scan CMOS
Resolution 2688 × 1520
Min. Illumination 0.0089Lux @(F1.6,AGC ON) ,0 Lux with IR
Field of View 84.4° × 51.1° (H × V)
Focal Length 4 mm
Shutter Speed 1 s to 1/100,000 s
White Balance MWB/AWB1/Locked WB/Fluorescent Lamp/Incandescent Lamp/Warm Light Lamp/Natural Light
Day & Night Mode IR Cut Filter with Auto Switch
WDR 120 dB
Bi-spectrum Image Fusion Display the details of optical channel on thermal channel
Target Coloration Yes. Supported in white hot and black hot mode.
IR Distance Up to 30 m
IR Intensity and Angle Automatically adjusted
VCA 4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
Temperature Measurement 3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
Temperature Range -20 °C to 150 °C (-4 °F to 302 °F)
Temperature Accuracy ± 8 °C (±14.4 °F)
Main Stream Optical channel 50 HZ: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 HZ: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) Thermal channel 25 fps (1280×720P， 704×576， 352×288， 384×288)
Sub-stream Optical channel 50 HZ: 25 fps (704 × 576, 352 × 288) 60 HZ: 30 fps (704 × 480, 352 × 240) Thermal channel 25 fps (704 × 576, 352 × 288, 384 × 288)
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG
Audio Compression G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM
Color Palettes 17 types (White hot, Black hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice fire, Rain, Red hot, Green hot, Dark blue, Winter, Summer)
Protocols IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,SSL
Network Storage MicroSD/SDHC/SDXC card (up to 512 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
API ISAPI, ISUP, HIKVISION SDK, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G, Profile T), OTAP
Simultaneous Live View Up to 20 channels
User/Host level Up to 32 users, 3 levels: Administrator, Operator, User
Security User authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x access control, IP address filtering
Client iVMS-4200, Hik-Connect
Alarm Input 2, alarm input (0-5 VDC)
Alarm Output 2, alarm output (alarm response actions configurable)
Alarm Action SD recording/Relay output/Smart capture/FTP upload/Email linkage
Audio Input 1, 3.5 mm Mic in/Line in interface Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%
Audio Output Linear level, impedance: 600 Ω
Communication Interface 1, RJ45 10 M/100 M Self-adaptive Ethernet interface. 1, RS-485 interface (half duplex)
Analog Output 1.0V [p-p]/75Ω, PAL/NTSC/BNC
Menu Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
Power Supply 24 VAC ± 25%, 12 VDC ± 25%,24VDC two-core terminal block PoE (802.3af, class 3)
Power Consumption 24 VAC ± 25%: 0.8 A to 0.5 A, max. 9.5 W 12 VDC ± 25%: 0.63 A to 1.06 A, max. 9 W 24VDC: 0.4A, max 9.5W PoE (802.3af, class 3): 36 V to 57 V, 0.28 A to 0.17 A, max. 10 W
Working Temperature/Humidity Temperature: -40°C to 65°C (-40°F to 149°F) Humidity: 95% or less
Protection Level IP67 Standard IK10-rated housing TVS 4000V lightning protection, surge protection, voltage transient protection NEMA 4X anti-corrosion housing
Dimensions 376.1 mm × 119.1 mm × 118.1 mm (14.81" × 4.68" × 4.65")
Weight 1.82 kg (4.01 lb)
VCA Range for Humans 49 m
VCA Range for Vehicles 147 m
EMC CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7) KC (KSC9832: 2019; KSC9835: 2019) FCC (ANSI C63.4;FCC Part15 sub B)
Safety CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; UL: (CSA C22.2 No. 62368-1-14, 2nd Ed.)
Environment CE-RoHS：2011/65/EU, WEEE: 2012/19/EU, Reach：Regulation(EC) No 1907/2006
Protection IP67: IEC 60529-2013 IK10: IEC 62262-2002
Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - Thermal & Optical Bi-spectrum Network Bullet Camera Quick Start Guide - Thermal & Optical Bi-spectrum Network Bullet Camera User Manual - Thermal & Optical Bi-spectrum Network Bullet Camera General Firmware Update Release notes - Thermal & Optical Bi-spectrum Network Bullet Camera
