Hikvision DS-2XC6745G0-IZHS - Dome IP kamera
Hikvision

Hikvision DS-2XC6745G0-IZHS - Dome IP kamera

Model kodu
DS-2XC6745G0-IZHS
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

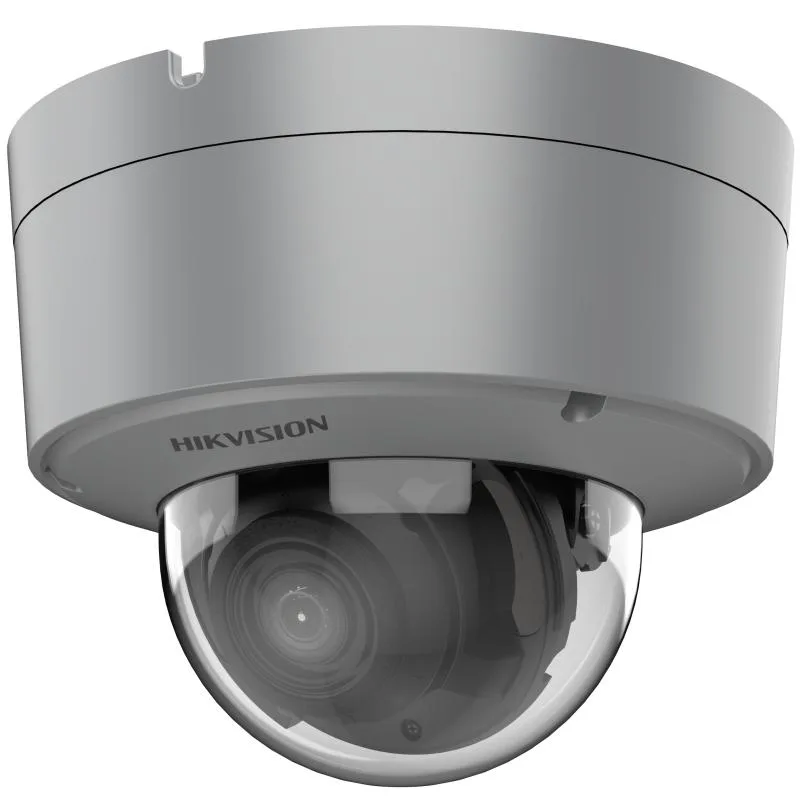

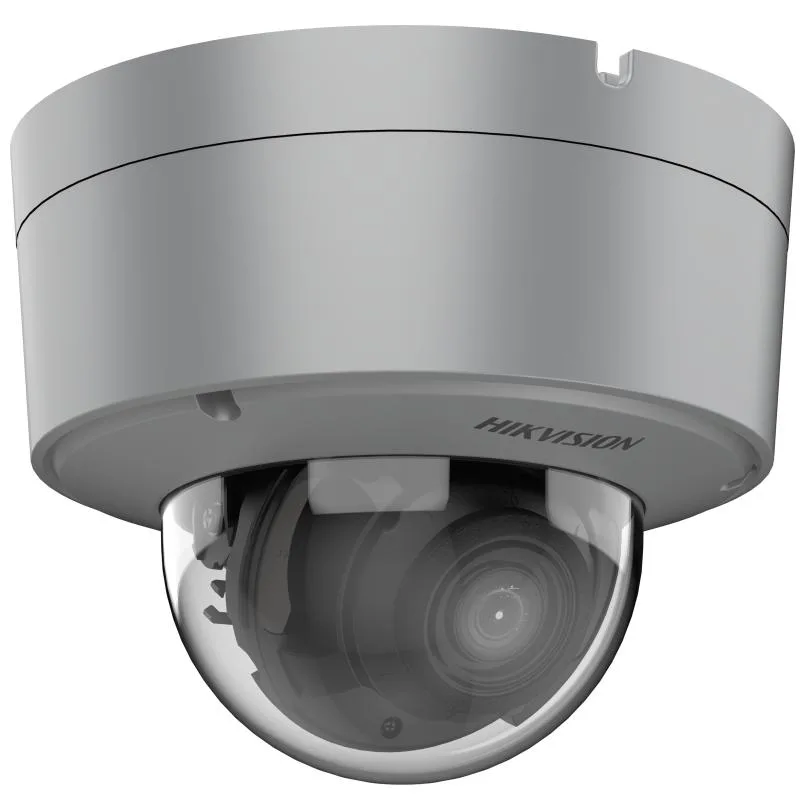

316L stainless steel enclosure, protecting cameras to be used in corrosive environments, providing reliability and longevity compared to standard cameras. A built-in heater allows for start-up in ultra-low temperatures to -40 °C. Water and dust resistant (IP68) and vandal resistant (IK10). DarkFighter technology enables the capture of high quality color images in even the dimmest lighting environments

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.002 Lux @ (F1.4, AGC ON),B/W: 0.001 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Shutter Time 1 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
Aperture Max. F1.3
DORI Wide: D: 60 m, O: 23.8 m, R: 12 m, I: 6 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m
Supplement Light Type IR
Supplement Light Range Up to 50 m
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 704 × 576) 60 Hz: 30 fps (640 × 480, 704 × 480)
Third Stream Independent with Main Stream and Sub Stream, up to: 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 640 × 480, 704 × 480)
Video Compression H.264/H.265/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 5 fixed regions for each stream
Target Cropping Yes
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC/MP3
Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)/8 to 160 Kbps (MP3)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/48 kHz
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
API ONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200,Hik-Connect
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 12+, Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule,Alarm Trigger,Video Trigger
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC,HLC,3D DNR,Defog
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Video Output 1 Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB
Audio 1 input (line in), 1 output (line out)
Alarm 1 input, 1 output (max. 24 VDC, 1 A/110 VAC, 500 mA)
RS-485 1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Reset Key Yes
Basic Event Motion detection,video tampering alarm,alarm input and output,exception
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)), unattended baggage detection,object removal detection, scene change detection,audio exception detection,defocus detection
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,audible warning
Power 12 VDC ± 10%, 1 A, max. 10 W, 24 VAC ± 10%, 0.7 A, max. 10 W, PoE: IEEE 802.3af, Class 3
Material 316L and anti-corrosion coating
Dimension Ø166.7 mm × 133.2 mm (Ø6.6" × 5.2")
Package Dimension 245 mm × 215 mm × 230 mm (9.6" × 8.5" × 9.1")
Weight Approx. 3995 g (8.8 lb.)
With Package Weight Approx. 4944 g (10.9 lb.)
Storage Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Heartbeat,mirror,flash log,password reset via email,password protection,one-key reset
Heater Yes
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
Safety UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, UKCA: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU
Protection IK10: IEC 62262:2002,IP68: IEC 60529-2013
Anti-Corrosion Protection NEMA 4X (NEMA 250-2018)

Dokümanlar

Data Sheet - 316L 4MP Anti-Corrosion Vari-focal Dome User Manual - 316L 4MP Anti-Corrosion Vari-focal Dome G5_IPCH_H V5.7.64_260810 Release Note - 316L 4MP Anti-Corrosion Vari-focal Dome
