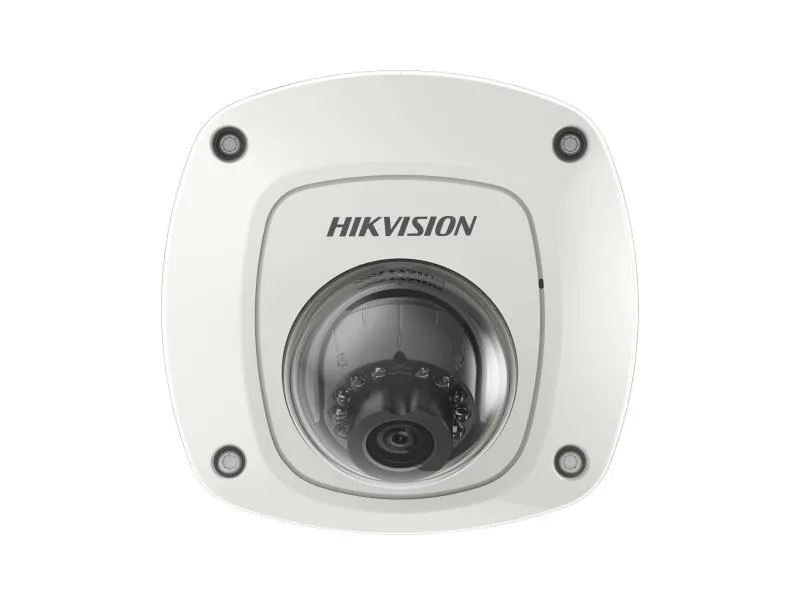

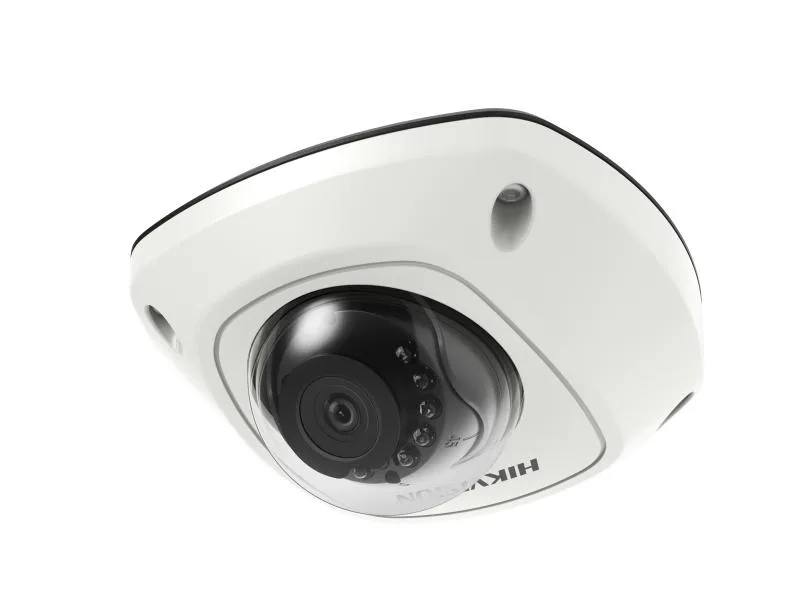

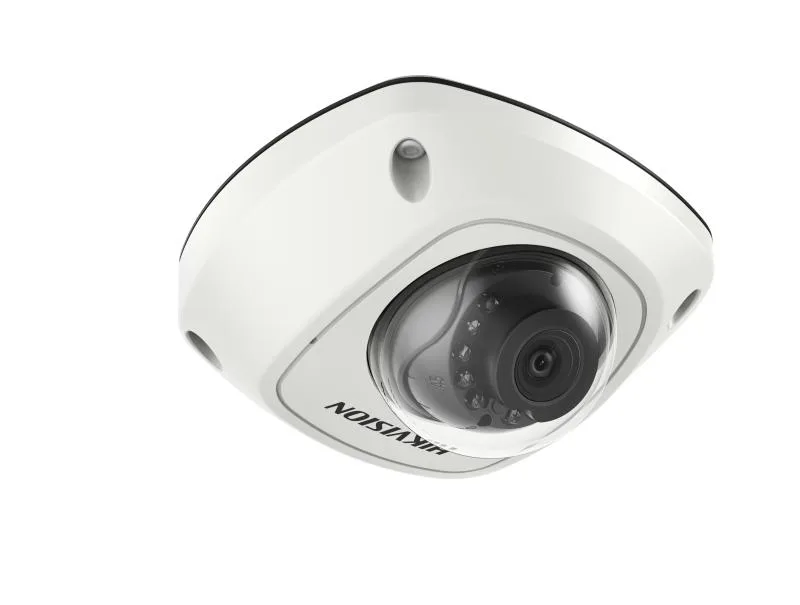

Hikvision DS-2XM6112G0-I(D)(M)(/ND) (C) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2XM6112G0-I(D)(M)(/ND) (C) - Dome IP kamera
Hikvision

Hikvision DS-2XM6112G0-I(D)(M)(/ND) (C) - Dome IP kamera

Model kodu
DS-2XM6112G0-I(D)(M)(/ND) (C)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 1.3 MP resolution. Clear imaging against strong back light due to 120 dB true WDR technology. Efficient H.265+ compression technology. Water and dust resistant (IP66) and vandal proof (IK08). Advanced streaming technology that enables smooth live view and data self-correcting in poor network. 3D DNR technology delivers clean and sharp images. Hik-Connect cloud service and APP for remote management and views of devices

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120dB
Day & Night IR cut filter
Power-off Memory Yes
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Focus No
Lens Type & FOV 2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Aperture 2.8 mm: F2.0 4 mm: F2.0 6 mm: F1.6
Lens Mount M12
IR Range Up to 10 m
Wavelength 850 nm
Smart Supplement Light Yes
Max. Resolution 1536 × 864
Main Stream 50Hz: 50 fps (1536 × 864, 1280 × 720, 704 × 576, 640 × 480) 60Hz: 60 fps (1536 × 864, 1280 × 720, 704 × 480, 640 × 480)
Sub Stream 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Third Stream 50Hz: 25fps (1536 × 864, 1280 ×720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60Hz: 30fps (1536 × 864, 1280 ×720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Fourth Stream No
Fifth Stream No
Custom Stream No
Video Compression Main Stream: H.265/H.264 Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264
Video Bit Rate 32 Kbps to 16Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main Stream supports
H.265+ Main Stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 support
Stream Type Main Stream/Sub-Stream/Third Stream
Region of Interest (ROI) 4 fixed regions for each stream, and dynamic object tracking
Environment Noise Filtering Yes
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Type Mono sound
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Smooth Streaming Yes
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Network Storage microSD/SDHC/SDXC card (128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51
Smart IR The IR LEDs on camera should support Smart IR function to automatically adjust power to avoid image overexposure.
Day/Night Switch Day, Night, Auto, Schedule
Target Cropping Yes
DNR 3D DNR
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR > 50dB
Privacy Mask 4 regions of privacy mask
Alarm No
Audio 1 built-in microphone
RS-485 No
Video Output 1 Vp-p Composite Output (75Ω/CVBS)
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware Reset Yes
Communication Interface Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug
Power Output No
Heater No
Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Object detection: detects objects and upload images Scene change detection, defocus detection, audio exception detection
Online Upgrade Yes
Dual Backup Yes
Firmware Version 5.5.85
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Software Reset Yes
Embedded Open Platform No
Linkage Method Upload to FTP/NAS/memory card, notify monitoring center, send email
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply -ID, -IDM: 24 VDC -I/ND, -IM/ND: PoE (802.3af, 36 V to 57 V)
Power Consumption and Current -ID, -IDM: 24 VDC, 0.2 A, 5 W -I/ND, -IM/ND: PoE(802.3af, 36 V to 57 V), 0.2 A to 0.1 A, class 3
Power Interface -I/ND: RJ45 interface, PoE power supply -ID: Ø5.5 mm coaxial power plug, DC power supply -IDM: two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug, PoE power supply
Material ADC12/PC
Screw Material SUS
Camera Dimension 99.3 × 96.7 × 52.8 mm (3.9″ × 3.8″ × 2.1″)
Package Dimension 252 × 160 × 95mm (9.9″ × 6.3″ × 3.7″)
Camera Weight 430 g (0.9 lb.)
With Package Weight 780 g (1.7 lb.)
Class Class B

Dokümanlar

Data Sheet - 1.3MP Mobile Dome Camera User Manual - 1.3MP Mobile Dome Camera
