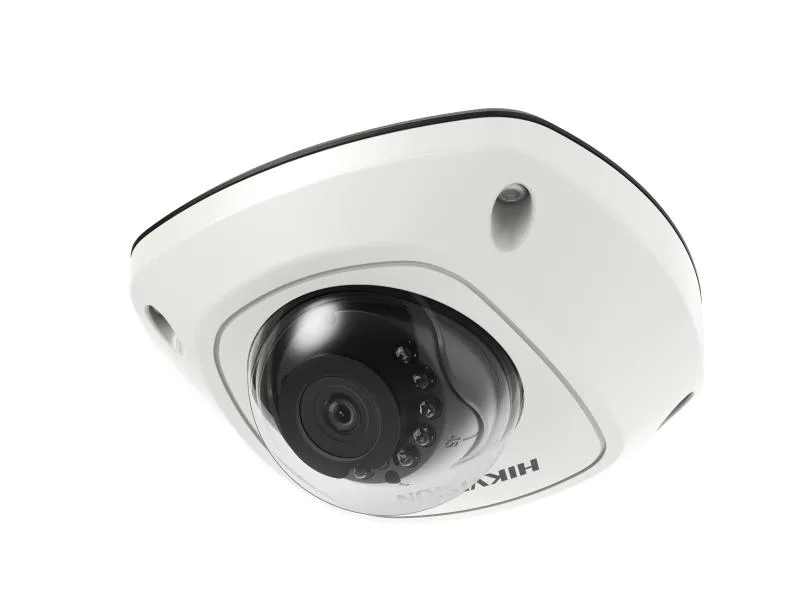

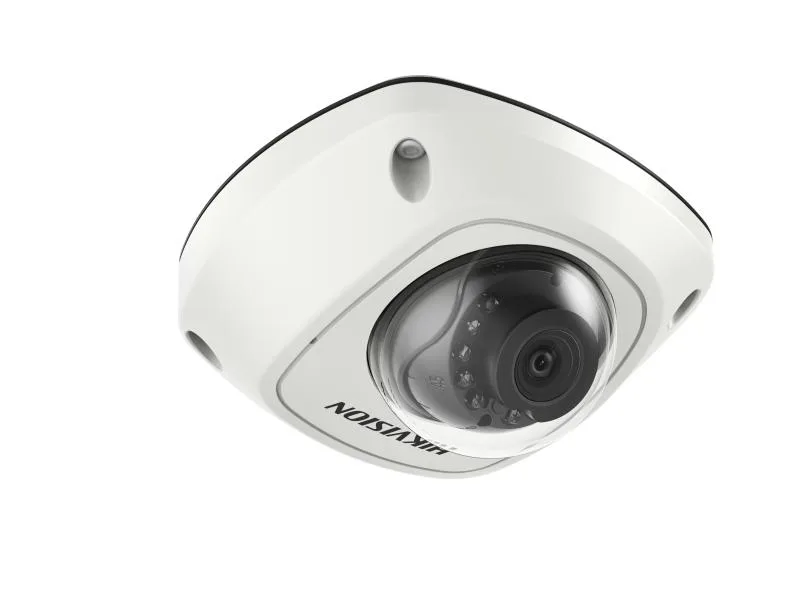

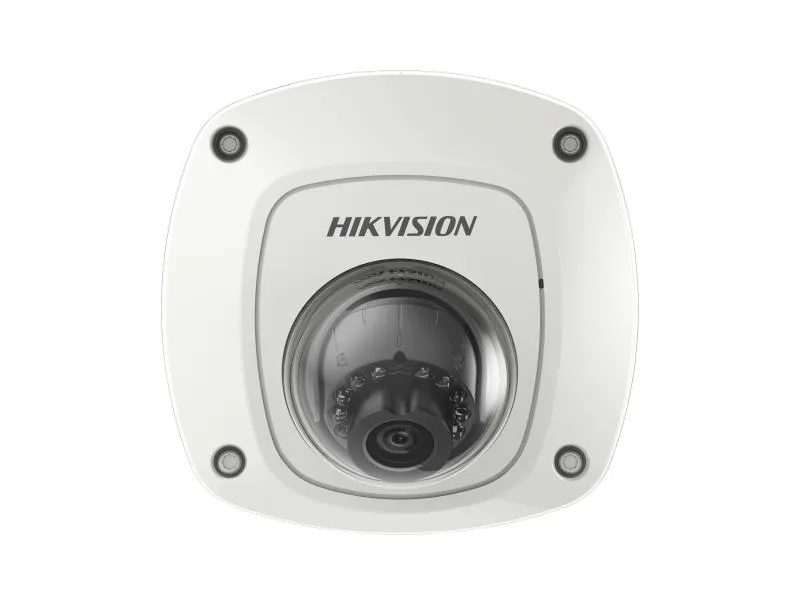

Hikvision DS-2XM6122G0-I(D)(M)(/ND) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2XM6122G0-I(D)(M)(/ND) - Dome IP kamera
Hikvision

Hikvision DS-2XM6122G0-I(D)(M)(/ND) - Dome IP kamera

Model kodu
DS-2XM6122G0-I(D)(M)(/ND)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Clear imaging against strong back light due to 120 dB true WDR technology. Efficient H.265+ compression technology. Water and dust resistant (IP66) and vandal proof (IK08). Advanced streaming technology that enables smooth live view and data self-correcting in poor network. 3D DNR technology delivers clean and sharp images. Hik-Connect cloud service and APP for remote management and views of devices

Teknik özellikler

Image Sensor 1/2.8" Progressive Scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Time 1 s to 1/100, 000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Focal Length & FOV 2.8 mm: horizontal FOV 102°, vertical FOV 54°, diagonal FOV 118° 4 mm: horizontal FOV 77°, vertical FOV 42°, diagonal FOV 91° 6 mm: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 59°
Lens Mount M12
Focus No
Aperture 2.8 mm: F2.0 4 mm: F2.0 6 mm: F1.6
Supplement Light Type IR
Supplement Light Range Up to 10 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Third Stream 50 Hz: 25 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240) 60 Hz: 30 fps(1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Video Compression Main Stream: H.265/H.264/H.264+/H.265+ Sub-Stream: H.265/H.264/MJPEG Third Stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type BaseLine Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 4 fixed regions for each stream, and dynamic face tracking
Target Cropping Yes
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G), ISAPI
Smooth Streaming Yes
User/Host Up to 32 users 3 levels: Administrator, Operator and User
Network Storage microSD/SDHC/SDXC card (128 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11; Local service: Chrome 41.0+, Firefox 30.0-51
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120dB
SNR > 50dB
Image Enhancement BLC, HLC, 3D DNR, Defog, EIS
Privacy Mask 4 regions of privacy mask
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Video Output 1 Vp-p Composite Output(75Ω/CVBS)
Ethernet Interface Without -M: 1 RJ45 10M/100M self-adaptive Ethernet port -M: 1 four-core M12 aviation plug
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio 1 built-in microphone
Alarm No
RS-485 No
Reset Key Yes
Power Output No
Smart Event Line crossing detection, up to 4 lines configurable Intrusion detection, up to 4 regions configurable Region entrance detection, up to 4 regions configurable Region exiting detection, up to 4 regions configurable Unattended baggage detection, up to 4 regions configurable Object removal detection, up to 4 regions configurable Face detection: detects faces and upload images Scene change detection, defocus detection, audio exception detection
Linkage Linkage Method
Power -I/ND: RJ45 interface PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A -ID: 24 VDC, 0.2 A, 5 W, Ø5.5 mm coaxial power plug, DC power supply -IDM: 24 VDC, 0.2 A, 5 W, two-core Molex connector, DC power supply -IM/ND: four-core M12 aviation plug PoE: 802.3af, class 3, 36 V to 57 V, 0.2 A to 0.1 A
Dimension 99.3 × 96.7 × 52.8 mm (3.9" × 3.8" × 2.1")
Package Dimension 252 × 160 × 95mm (9.9" × 6.3" × 3.7")
Weight 430 g (0.9 lb.)
With Package Weight 780 g (1.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Embedded Open Platform No
General Function Anti- flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP66 (IEC 60529-2013), IK08(IEC 62262:2002)
Automotive and Railway EN50155-2017(EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 61373:2010); EN45545 (EN 45545-2:2013+A1:2015); E-MARK (ECE R10)

Dokümanlar

User Manual - Mobile Indoor Mini Dome Network Camera 【Release Note】Mobile IPC V5.5.91_210429 - Mobile Indoor Mini Dome Network Camera
