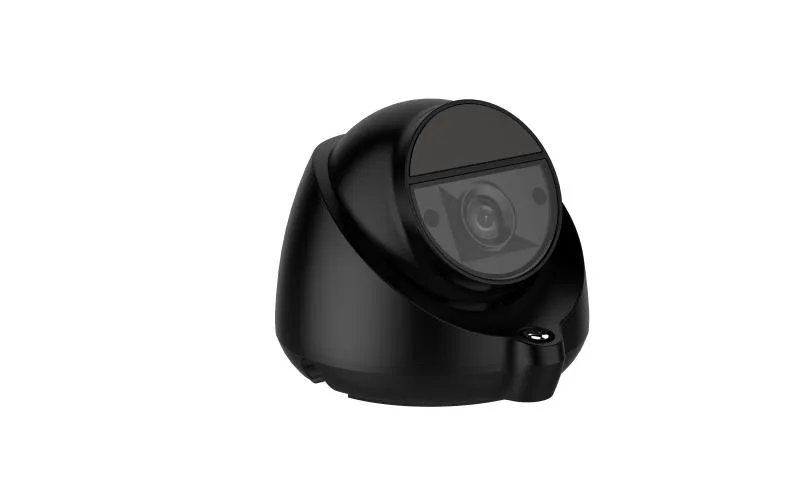

Hikvision DS-2XM6425G0/F-XX

Model kodu: DS-2XM6425G0/F-XX
Sistem: Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 2 MP resolution. Face capture by deep-learning technology. Audio and alarm interface available. Built-in Micro SD / SDHC / SDXC card slot, up to 128GB. 6 behavior analyses, 3 exception detection, and face detection

Teknik özellikler

Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.001 Lux @ (F1.2, AGC ON), 0.002 Lux @ (F1.6, AGC ON) B/W: 0.0007 Lux@(F1.2, AGC ON), 0.001 Lux@(F1.6, AGC ON), 0 Lux with IR
Shutter Time	Channel 1: 1/25 s to 1/100,000 s Channel 2: 1 s to 1/100,000 s
Day & Night	IR Cut Filter
Angle Adjustment	L80 IR Dome Lens: pan: -30 to 30, tilt: 0° to 75° (2 mm 0° to 60°), rotate: -180° to 180° L90 IR Turret Lens: tilt: 0° to 75°, rotate: -180° to 180°
Focal Length & FOV	L32/L90: 2 mm/2.8 mm/4 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° L80: 2 mm/2.8 mm/4 mm/6 mm/8 mm 2 mm @ F2.0: horizontal FOV 132.8°, vertical FOV 77.5°, diagonal FOV 153° 2.8 mm @ F1.6: horizontal FOV 110.5°, vertical FOV 60°, diagonal FOV 130° 4 mm @ F1.6: horizontal FOV 86°, vertical FOV 45°, diagonal FOV 102° 6 mm @ F1.6: horizontal FOV 52.7°, vertical FOV 30.3°, diagonal FOV 60.3° 8 mm @ F1.6: horizontal FOV 40.5°, vertical FOV 22.4°, diagonal FOV 46.8°
Lens Mount	M12, pin hole
Aperture	F1.6, F2.0
Main Stream	50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream	50Hz: 25fps (704 × 576, 640 × 480) 60Hz: 30fps (704 × 480, 640 × 480)
Video Compression	Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Region of Interest (ROI)	Channel 1: 4 fixed regions for each stream Channel 2: No
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Simultaneous Live View	Up to 20 channels
API	ONVIF (PROFILE S, PROFILE G), CGI, ISAPI
User/Host	Up to 32 users,3 levels: Administrator, Operator and User
Client	iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web Browser	IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Day/Night/Auto/Schedule/Triggered by Alarm in
Wide Dynamic Range (WDR)	120 dB
Image Enhancement	BLC, HLC, 3D DNR, Defog, EIS
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Ethernet Interface	1 10M/100M Ethernet port, built-in RS232
On-Board Storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Audio	1 input (line in), 1 output (line out), mono sound
Alarm	2 inputs, 2 outputs (up to 12 VDC, 30mA)
RS-485	Yes
Reset Key	Yes
Basic Event	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Smart Event	Channel 1: Scene change detection, defocus detection, audio exception detection, face detection, line crossing detection, intrusion detection, region entrance, region exiting, unattended baggage, object removal Channel 2: No
Face Capture	Channel 1: Yes Channel 2: No
Power	24 VDC, 0.7 A, max. 15 W, 8 VDC to 36 VDC, two-core aviation plug, aviation plug adapter cable to 3.5 mm power M8 PoE: 802.3at, 42.5 V to 57 V, 0.4 A to 0.3 A, max. 16 W
Dimension	Main body: 135 × 107.8 ×30.4 mm (5.3" × 4.3" × 1.2")
Weight	Main body: approx. 450 g (1 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
With Package Weight	With package: approx. 920 g (2 lb.) if-you-use-RJ45-cable, NVR-cannot-supply-power-through-POE
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity 5% to 95% or less (non-condensing)
General Function	One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Wiper	Camera: Plastic,Lens: Metal
Protection	L80: IP66, IK10 L32: IP66 (2 mm: No)
