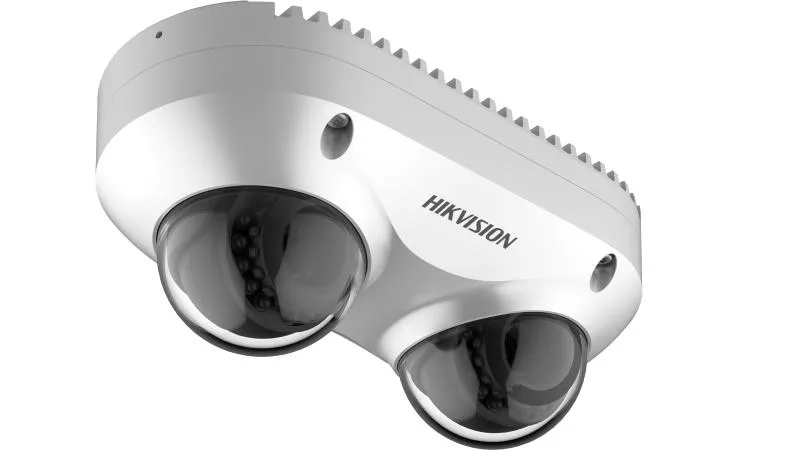

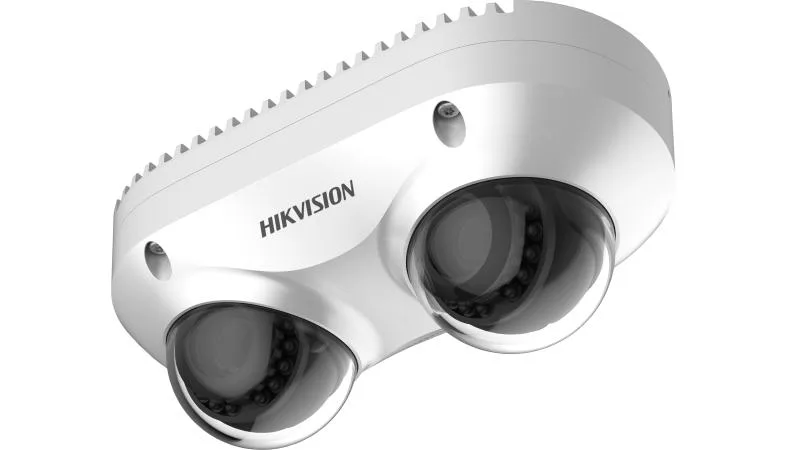

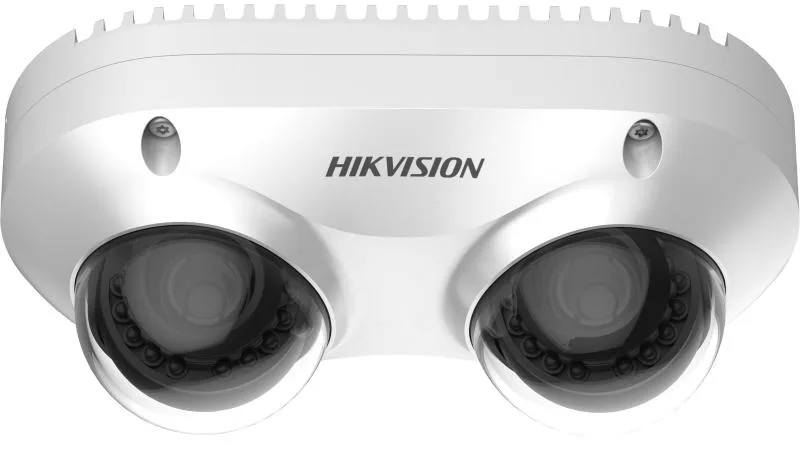

Hikvision DS-2XM6D52G0-I(M)(S)(/ND) - Dome IP kamera

Markaya göre filtrele

Hikvision DS-2XM6D52G0-I(M)(S)(/ND) - Dome IP kamera
Hikvision

Hikvision DS-2XM6D52G0-I(M)(S)(/ND) - Dome IP kamera

Model kodu
DS-2XM6D52G0-I(M)(S)(/ND)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 5 MP resolution. Dual lens, dual CPU. Flexible Lens: P: -90 to 90°, T: 0 to 60° (2.8 mm), 0 to 70° (4/6 mm), R: 0 to 355°. Efficient H.265+ compression technology. Built-in micro SD/SDHC/SDXC card slot, up to 256 GB. Clear imaging against strong back light due to 120 dB true WDR technology. Water and dust resistant (IP67) and vandal proof (IK10)

Teknik özellikler

Image Sensor 1/2.7" Progressive Scan CMOS
Max. Resolution 2560 × 1920
Min. Illumination Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Time 1s to 1/100, 000 s
Day & Night ICR Cut
Angle Adjustment P: -90° to 90°; T: 0° to 60° (2.8mm), 0° to 70° (4/6mm); R: 0° to 355°
Focal Length & FOV 2.8mm @ F1.6: horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6: horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6: horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
Lens Mount M12
Aperture F1.6
Supplement Light Range Up to 10m
Smart Supplement Light Yes
IR Wavelength 850nm
Main Stream 50 Hz: 25 fps ((2560 × 1920, 2048 × 1536); 60 Hz: 30 fps (2560 × 1920, 2048 × 1536)
Sub-Stream 50 Hz: 25 fps (640 × 480, 704 × 576); 60 Hz: 30 fps (640 × 480, 704 × 480)
Third Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 4 fixed regions for each stream
Audio Type Stereo
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
User/Host Up to 32 users3 levels: Administrator, Operator and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
Network Storage NAS(NFS, SMB/ CIFS)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+
Image Parameters Switch Yes
Image Settings Saturation||brightness||contrast||sharpness||white balance
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120dB
Image Enhancement BLC||HLC||Defog||EIS||3D DNR
Privacy Mask Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Ethernet Interface -I, -IS, -I/ND: 1 RJ45 10M/100/100M self-adaptive Ethernet port -IM, -IM/ND: 1 M12 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Audio Without -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line out
Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
RS-485 -S: 1 RS-485 interface, half duplex
Reset Key Yes
Smart Event No
Linkage Linkage Method
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Power 12 VDC, 0.9A, max. 10 W, Φ5.5 mm coaxial power plug POE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 10 W
Dimension 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
Weight 770g (1.7 lb.)
With Package Weight 1053g (2.3 lb.)
Storage Conditions -30° to 60° (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30° to 60° (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function mirror||privacy mask||anti-flicker||heart
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
EMC FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67(IEC 60529-2013), IK10(IEC 62262:2002)
Automotive and Railway EN50155-2017 (EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 60068-2-64:1993, IEC 61373:1999 ), EN45545 (EN 45545-2:2013+A1:2015), E-MARK (ECE R10)
Other R118
