Hikvision DS-2XM6D82G0-I(M)(S)(/ND) - Dome IP kamera

Markaya göre filtrele

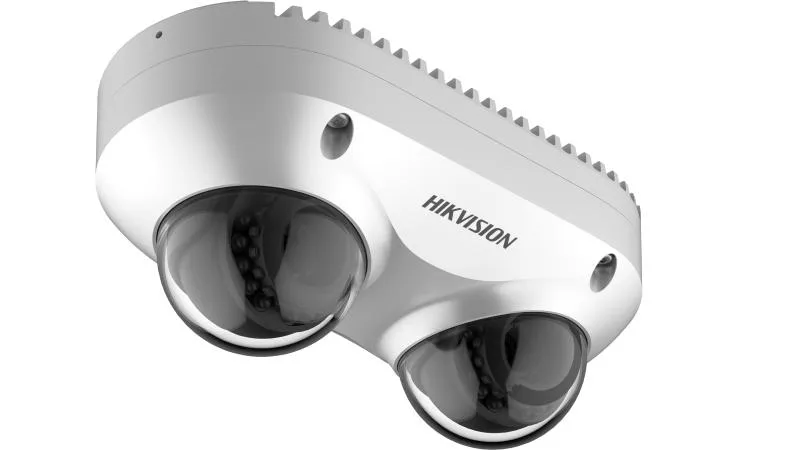

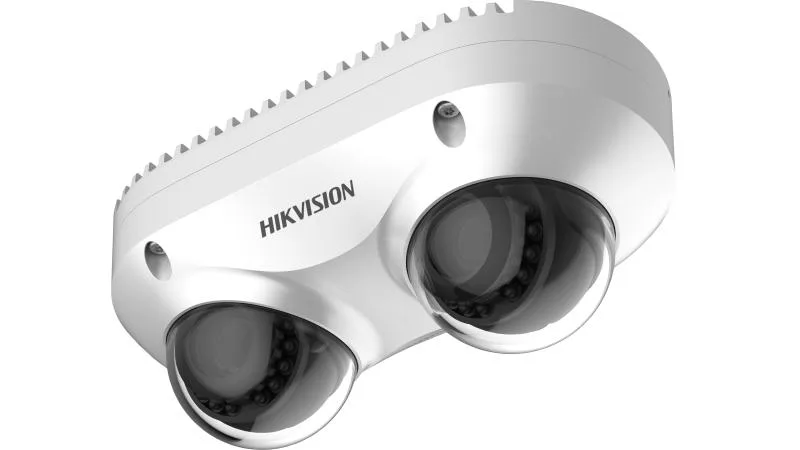

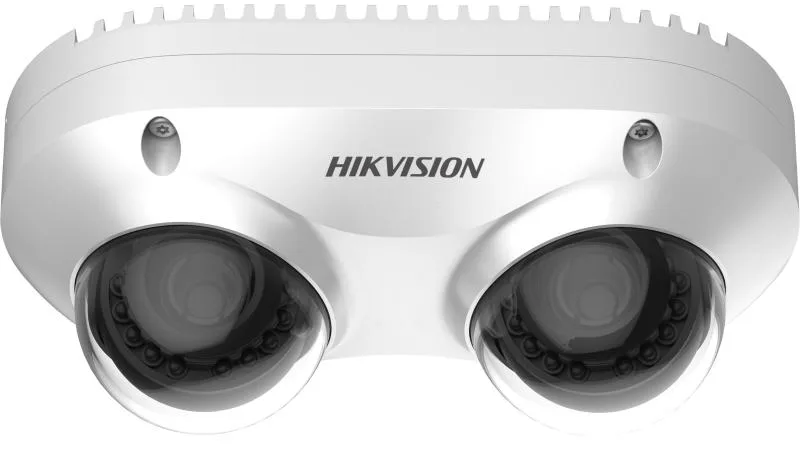

Hikvision DS-2XM6D82G0-I(M)(S)(/ND) - Dome IP kamera
Hikvision

Hikvision DS-2XM6D82G0-I(M)(S)(/ND) - Dome IP kamera

Model kodu
DS-2XM6D82G0-I(M)(S)(/ND)
Sistem
Kamera sistemi
Kategori
Dome IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High quality imaging with 8 MP resolution. Dual lens. Flexible Lens: P: -90 to 90°, T: 0 to 60° (2.8 mm), 0 to 70° (4/6 mm), R: 0 to 355°. Efficient H.265+ compression technology. Clear imaging against strong back light due to 120 dB true WDR technology. Built-in micro SD/SDHC/SDXC card slot, up to 256 GB. Water and dust resistant (IP67) and vandal proof (IK10)

Teknik özellikler

Image Sensor 1/2.5" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.056 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time 1s to 1/100, 000 s
Day & Night ICR Cut
Angle Adjustment P: -90° to 90°; T: 0° to 60° (2.8mm), 0° to 70° (4/6mm); R: 0° to 355°
Focal Length & FOV 2.8mm @ F2.0: horizontal FOV 103°, vertical FOV 53°, diagonal FOV 124°; 4 mm @ F2.0: horizontal FOV 79°, vertical FOV 41°, diagonal FOV 94°; 6 mm @ F2.0: horizontal FOV 50°, vertical FOV 27°, diagonal FOV 58°
Lens Mount M12
Aperture F2.0
Supplement Light Range Up to 10m
Smart Supplement Light Yes
IR Wavelength 850nm
Main Stream 50 Hz: 25 fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 24fps (3840 × 2160, 3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (640 × 480, 704 × 576); 60 Hz: 24fps (640 × 480, 704 × 480)
Video Compression H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 and H.264 support
Region of Interest (ROI) 4 fixed regions for each stream
Audio Type Stereo
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Audio Sampling Rate 8 kHz/16 kHz/32kHz/44.1kHz/48kHz
Environment Noise Filtering Yes
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live View Up to 20 channels
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
User/Host Up to 32 users3 levels: Administrator, Operator and User
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2
Network Storage NAS(NFS, SMB/ CIFS)
Client iVMS-4200, Hik-Connect
Web Browser Plug-in required live view: IE8+; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+; Local service: Chrome 41.0+, Firefox 30.0+
Image Parameters Switch Yes
Image Settings Saturation||brightness||contrast||sharpness||white balance
Day/Night Switch Day, Night, Auto, Schedule, Triggered by Alarm In (-S)
Wide Dynamic Range (WDR) 120dB
Image Enhancement BLC||HLC||Defog||EIS||3D DNR
Privacy Mask Yes
Picture Overlay LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Ethernet Interface -I, -IS, -I/ND: 1 RJ45 10M/100/100M self-adaptive Ethernet port -IM, -IM/ND: 1 M12 10M/100M self-adaptive Ethernet port
On-Board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Audio Without -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line out
Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
RS-485 -S: 1 RS-485 interface, half duplex
Reset Key Yes
Smart Event No
Linkage Linkage Method
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Power 12 VDC, 0.9 A, max. 10 W, Φ5.5 mm coaxial power plug POE: 802.3af, 36 V to 57 V, 0.3 A to 0.2 A, max. 10 W
Dimension 164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension 227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
Weight 770g (1.7 lb.)
With Package Weight 1053g (2.3 lb.)
Startup and Operating Conditions -30° to 60° (-22 °F to 140 °F), humidity 95% or less (non-condensing)
General Function mirror||password protection||watermark||IP address filter||one-key reset||anti-flicker||heart
Web Client Language 32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
EMC FCC(47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection Ingress protection: IP67(IEC 60529-2013), IK10(IEC 62262:2002)
Automotive and Railway EN50155-2017 (EN 50155:2017, EN 50121-3-2:2016, IEC 60068-2-1:2007, IEC 60068-2-2:2007, IEC 60068-2-30:2005, IEC 60068-2-64:1993, IEC 61373:1999 ), EN45545 (EN 45545-2:2013+A1:2015), E-MARK (ECE R10)
Other R118
