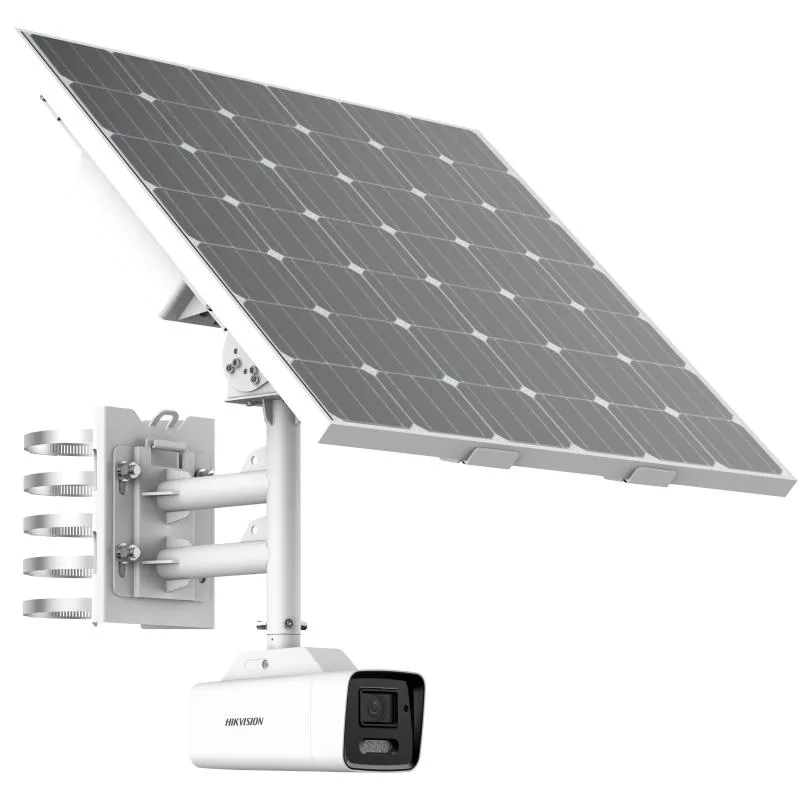

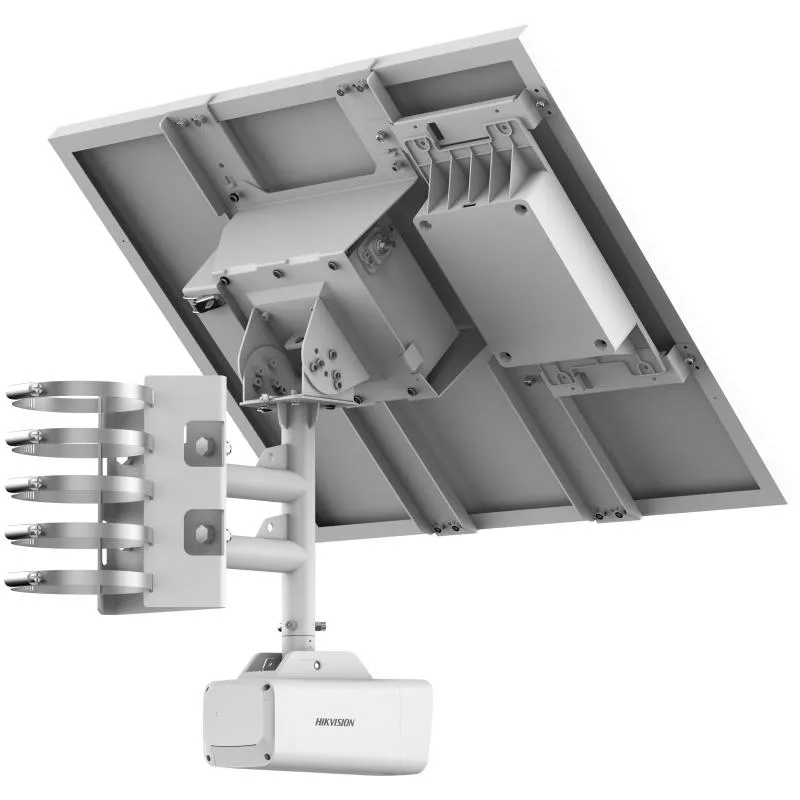

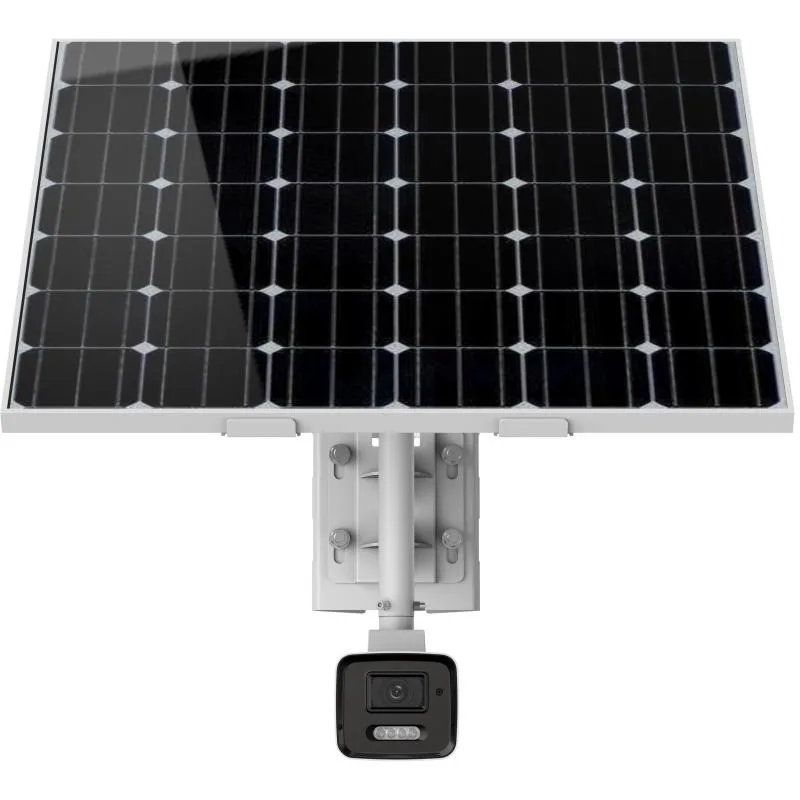

Hikvision DS-2XS6A46G1/P-IZS/C36S80 - Plaka tanıma (ANPR) kamera

Markaya göre filtrele

Hikvision DS-2XS6A46G1/P-IZS/C36S80 - Plaka tanıma (ANPR) kamera
Hikvision

Hikvision DS-2XS6A46G1/P-IZS/C36S80 - Plaka tanıma (ANPR) kamera

Model kodu
DS-2XS6A46G1/P-IZS/C36S80
Sistem
Kamera sistemi
Kategori
Plaka tanıma (ANPR) kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

80 W photovoltaic panel, 360 Wh chargeable lithium battery. Clear imaging against strong back light due to 120 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning. Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup. LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card. Water and dust resistant (IP66)

Teknik özellikler

Image Sensor 1/1.8" Progressive Scan CMOS
Max. Resolution 2560 × 1440
Min. Illumination Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light
Shutter Time 1 s to 1/100,000 s
Focal Length & FOV 2.8 to 12 mm, horizontal FOV 107.4° to 39.8°, vertical FOV 56° to 22.4°, diagonal FOV 130.1° to 45.7° 8 to 32 mm, horizontal FOV 40.3° to 14.5°, vertical FOV 22.1° to 8.2°, diagonal FOV 46.9° to 16.5°
Lens Type Auto, Semi-auto, Manual
Iris Type Auto-iris
Aperture 2.8 to 12 mm: F1.2, 8 to 32 mm: F1.6
Lens Mount All In One Lens
DORI 2.8 to 12 mm: Wide: D: 60.0 m, O: 23.8 m, R: 12.0 m, I: 6.0 m Tele: D: 149.0 m, O: 59.1 m, R: 29.8 m, I: 14.9 m 8 to 32 mm: Wide: D: 150.3 m, O: 59.7 m, R: 30.1 m, I: 15.0 m Tele: D: 400 m, O: 158.7 m, R: 80 m, I: 40 m
Supplement Light Type IR
Supplement Light Range 2.8 to 12 mm: Up to 30 m 8 to 32 mm: Up to 50 m
Smart Supplement Light Yes
Main Stream Performance mode: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720) Proactive mode: 50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream Performance mode: 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360) Proactive mode: 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
Video Compression Main stream: H.264/H.265 Sub-stream: H.264/H.265/MJPEG Third Stream: H.265/H.264 *Performance mode: main stream supports H.264+, H.265+
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 4 fixed regions for main stream
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP, OTAP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Hik-Connect (proactive mode also supports), Hik-central Professional
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
SIM Card Type MicroSIM
Frequency LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800 MHz
Standard LTE-TDD/LTE-FDD/WCDMA/GSM
Wide Dynamic Range (WDR) 120 dB
Day/Night Switch Day, Night, Auto, Schedule, Video Trigger
Image Enhancement BLC, HLC, 3D DNR, Defog
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
Satellite Positioning Detection GPS
Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 12 VDC, 1 A)
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB, Built-in 8 GB eMMC storage
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Wiegand 1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72 bit)
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Road Traffic and Vehicle Detection Blocklist and allowlist: up to 10,000 records Vehicle attribute detection: Not supported Support license plate recognition of vehicles and motorcycles (only in checkpoint scenario) LPR Countries/Regions: 4 areas (Europe, Middle East, Asia-Pacific, Africa) and more than 124 countries/regions（Some areas need to be upgraded to a special program.） License plate recognition rate ≥97% Capture rate ≥95% Vehicle Capture Speed: Front installation in checkpoint scenario: up to 100 km/h; Side installation: up to 60 km/h Capture Mode: License Plate and Vehicle Mode, Vehicle Priority Mode
Power 12 VDC ± 20%, 4-pin M8 waterproof connector 1. Standby power consumption: 45 mW 2. The average power consumption of 24 hours: 3.5 W (4G transmission is excluded). 3. The max. power consumption: 7 W
Material Front cover: metal, body: metal, bracket: metal
Dimension 816.2 mm × 735.9 mm × 760 mm (32.1" × 28.9" × 29.9") (Max. size of the camera after it is completely assembled)
Package Dimension 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
Weight Approx. 31.885 kg (70.3 lb.)
With Package Weight Approx. 25.650 kg (56.5 lb.)
Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
