Hikvision DS-2XS6A87G1-LS/C36S80 - Bullet IP kamera

Markaya göre filtrele

Hikvision DS-2XS6A87G1-LS/C36S80 - Bullet IP kamera
Hikvision

Hikvision DS-2XS6A87G1-LS/C36S80 - Bullet IP kamera

Model kodu
DS-2XS6A87G1-LS/C36S80
Sistem
Kamera sistemi
Kategori
Bullet IP kamera

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

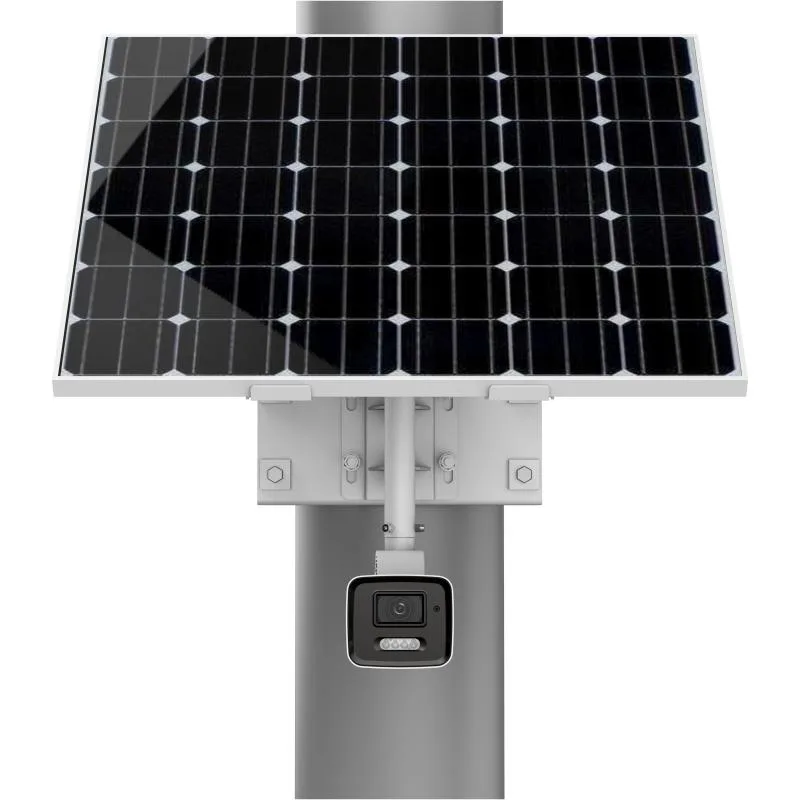

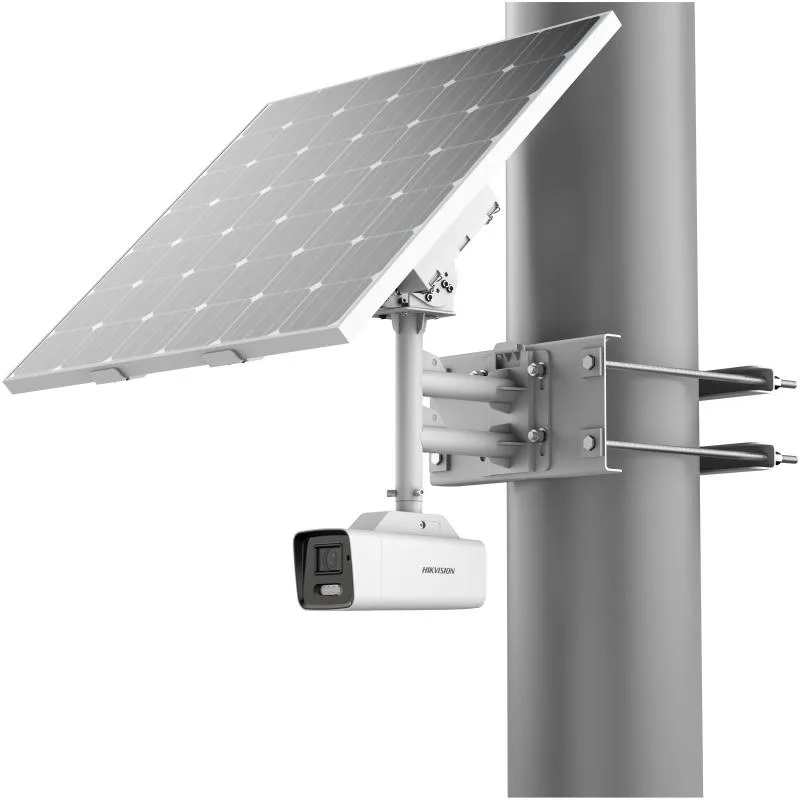

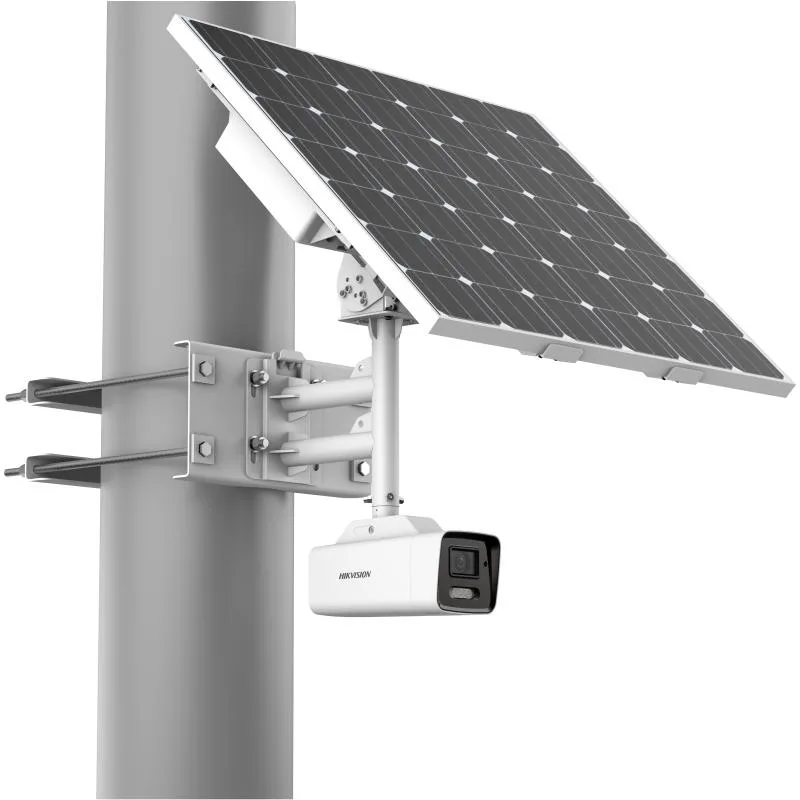

High quality imaging with 3840 × 2160@ 15 fps resolution. 24/7 Colorful imaging. Clear imaging against strong back light due to 130 dB true WDR technology. Focus on human and vehicle targets classification based on deep learning. 80 W photovoltaic panel, 360WH chargeable lithium battery. Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup. LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card. Camera: Water and dust resistant (IP67). Built-in 64 GB eMMC storage

Teknik özellikler

Image Sensor 1/1.2" Progressive Scan CMOS
Max. Resolution 3840 × 2160
Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time 1 s to 1/100,000 s
Focal Length & FOV 2.8 mm, horizontal FOV: 101.6°, vertical FOV: 52.4°, diagonal FOV: 124° 4 mm, horizontal FOV: 88.0°, vertical FOV: 47.0°, diagonal FOV: 104.3°
Lens Type Fixed focal lens, 2.8 and 4 mm optional
Iris Type Fixed
Aperture F1.0
Lens Mount M22
DORI 2.8 mm: D: 96 m, O: 38 m, R: 19m, I: 9.5 m 4 mm: D: 107 m, O: 42 m, R: 21 m, I: 10 m
Supplement Light Type White Light
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
Main Stream 50 Hz: 12.5 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (3840 × 2160, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 15 fps (640 × 480, 640 × 360)
Third Stream 50 Hz: 1 fps (1280 × 720, 640 × 480) 60 Hz: 1 fps (1280 × 720, 640 × 480)
Video Compression Main stream: H.265 Sub-stream: H.265/MJPEG Third Stream: H.265 *Performance mode: main stream supports H.265+
Video Bit Rate 32 Kbps to 16 Mbps
H.265 Type Main Profile
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.265 encoding
Region of Interest (ROI) 4 fixed regions for main stream
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP,UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, WebSocket, WebSockets
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, TLS 1.2, TLS 1.3
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client Hik-Connect (proactive mode also supports), Hik-central Professional
Web Browser Plug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
SIM Card Type MicroSIM
Frequency DS-2XS6A87G1-LS/C32S80: LTE-TDD: Band38/40/41 LTE-FDD: Band1/3/5/7/8/20/28 WCDMA: Band1/5/8 GSM: 850/900/1800MHz DS-2XS6A87G1-LS/C32S80 (US): LTE-FDD: Band2/4/5/12/13/66/71 WCDMA: Band2/4/5 DS-2XS6A87G1-LS/C32S80 (LA): LTE-TDD: Band38/40 LTE-FDD: Band1/2/3/4/5/7/8/12/17/28/66 WCDMA: Band1/2/3/4/5/8 GSM: 850/900/1800/1900MHz DS-2XS6A87G1-LS/C32S80 (JP): LTE-TDD: Band41 LTE-FDD: Band1/3/8/11/18/19/21/26/28 WCDMA: Band1/6/8/19
Standard DS-2XS6A87G1-LS/C32S80: LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A87G1-LS/C32S80 (US): LTE-FDD/WCDMA DS-2XS6A87G1-LS/C32S80 (LA): LTE-TDD/LTE-FDD/WCDMA/GSM DS-2XS6A87G1-LS/C32S80 (JP): LTE-TDD/LTE-FDD/WCDMA
Wide Dynamic Range (WDR) 130 dB
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR, Defog
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
SNR ≥ 52 dB
Privacy Mask 4 programmable polygon privacy masks
RS-485 1 RS-485 (half duplex, connect to external battery)
Audio 1 input (line in), max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input(s), 1 output(s) (max. 12 VDC, 1 A)
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB; Built-in 64 GB eMMC storage
Reset Key Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Power Output 12 VDC, max. 1000 mA
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD error)
Smart Event Line crossing detection, intrusion detection, region entrance detection, region exiting detection, scene change detection, face detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Power 12 VDC ± 20%, 4-pin M8 waterproof connector 1. Standby power consumption: 53 mW 2. The average power consumption of 24 hours: 2 W (4G transmission is excluded). 3. The max. power consumption: 3.2 W
Material Front cover: metal, body: metal, bracket: metal
Dimension 882.6 mm × 706.3 mm × 760 mm (34.8" × 27.8" × 29.9") (Max. size of the camera after it is completely assembled)
Package Dimension 862 mm × 352 mm × 762 mm (33.9" × 13.9" × 30.0")
Weight Approx. 30.2 kg (66.5 lb.)
With Package Weight Approx. 36.3 kg (80.0 lb.)
Storage Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
Battery Type Lithium
Capacity 360 WH (90 WH for each battery)
Battery Voltage 10.8 V
Max. Output Voltage 12.6 V
Operating Temperature Charging: -20 °C to 45 °C (-4 °F to 113 °F) Discharging: -20 °C to 60 °C (-4 °F to 140 °F)
