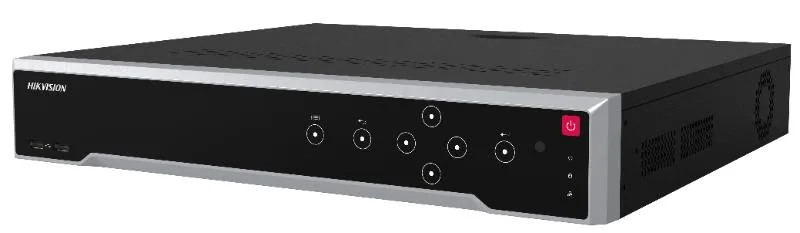

Hikvision DS-8632NI-K8 - NVR kayıt cihazı

Markaya göre filtrele

Hikvision DS-8632NI-K8 - NVR kayıt cihazı
Hikvision

Hikvision DS-8632NI-K8 - NVR kayıt cihazı

Model kodu
DS-8632NI-K8
Sistem
Kamera sistemi
Kategori
NVR kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Up to 32 channel IP cameras can be connected. Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats. Up to 4K high-definition live view, storage and playback. Up to 160 Mbps high incoming bandwidth ensures IP cameras can be connected. 2 HDMI (different source) and 2 VGA (different source) interfaces. 8 HDD can be used for continuous video recording. Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera

Teknik özellikler

IP Video Input 32-ch Up to 8 MP resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 160 Mbps
HDMI 1 Output 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
HDMI 2 Output 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA 1 Output 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA 2 Output 1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
Video Output Mode HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
Audio Output 2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format H.265+/H.265/H.264+/H.264/MPEG4
Recording Resolution 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback 16-ch
Decoding Capability 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)
Stream Type Video, Video & Audio
Audio Compression G.711ulaw/G.711alaw/G.722/G.726
Remote Connection 128
Network Protocol TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface 2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Serial Interface RS-232, RS-485, keyboard
SATA 8 SATA interfaces
eSATA 1 eSATA interface
Capacity Up to 8 TB capacity for each disk
Alarm In/Out 16/4
USB Interface Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Power Supply 100 to 240 VAC, 50 to 60 Hz
Consumption ≤ 30 W (without HDD)
Working Temperature -10 °C to 55 °C (14 °F to 131 °F)
Working Humidity 10 to 90 %
Dimension (W × D × H) 445 × 470 × 94 mm (17.5"× 18.5" × 3.7")
Weight ≤ 8 kg (17.6 lb)
Obtained Certification CE, FCC, CB, IC, RCM, KCC, ICE-003
FCC Part 15 Subpart B, ANSI C63.4-2014
CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4

Dokümanlar

Quick Start Guide - 32-ch 2U 4K NVR User Manual - 32-ch 2U 4K NVR Communication Matrix - 32-ch 2U 4K NVR NVR_V4.51.025 build210927_Release Notes - 32-ch 2U 4K NVR
