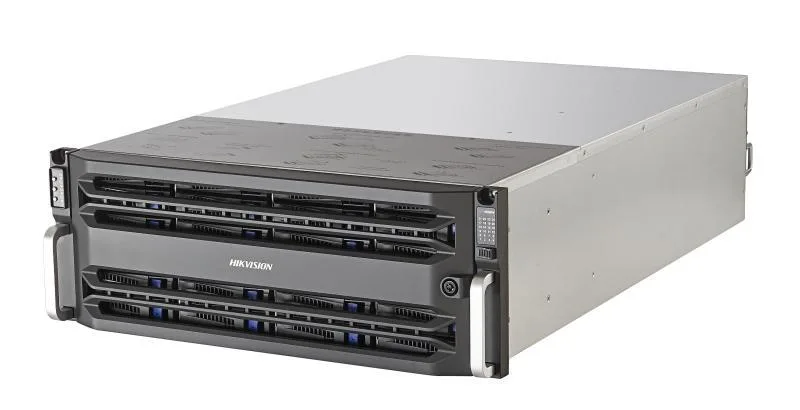

Hikvision DS-A71024R/192 - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-A71024R/192 - Hibrit kayıt cihazı
Hikvision

Hikvision DS-A71024R/192 - Hibrit kayıt cihazı

Model kodu
DS-A71024R/192
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Economical and stable hardware platform. HDD detection and repair/RAID optimization. Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode). Advanced data protection (synchronous backup of key information in system disks). Energy efficient and user-friendly UI

Teknik özellikler

Protocol iSCSI, RTSP, ONVIF, PSIA
USB 4
Data network interface 2, 1000M Ethernet interface(4 × GbE or 2 × 10GbE is extendable)
MiniSAS interface Supported
COM 1
Management network interface 1, 1000M Ethernet interface
HDD slot 24
Interface/capacity SATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8 TB, 10 TB, 12 TB, 14 TB, 16 TB
Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50,JBOD, Hot-Spare
Direct Streaming Mode: video (2 Mbps) + picture 320-ch recording + playback
IPSAN Mode 180-ch recording + playback
Video performance 320
Picture performance 320
Structure Server Structure
Processor 64-bit multi-core processor
Cache 4 GB (extendable to 64 GB)
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download on web page
HDD Model Hikvision,HK728TAH,8T;
Power supply Redundant
Chassis 4U (19-inch height)
Consumption(with HDDs) Working: ≤ 479(1633 BTU with 24 HDDs);Rated: ≤ 875 W
Environment temperature Working: +5 °C to +40 °C (41 °F to 104 °F);Storing: -40 °C to +55 °C (-104 °F to +131 °F)
Humidity Working: 20% to 80%RH (non-condensing/frozen); Storing: 5% to 90%RH (non-condensing/frozen)
Dimensions(W × D × H) 484 x 684 x 174 mm (19.1 x 26.9 x 6.9 in)
Weight (without HDDs) ≤ 40kg

Dokümanlar

Data Sheet - 24-slot Storage with 24 pcs 8TB SATA IOT HDD
