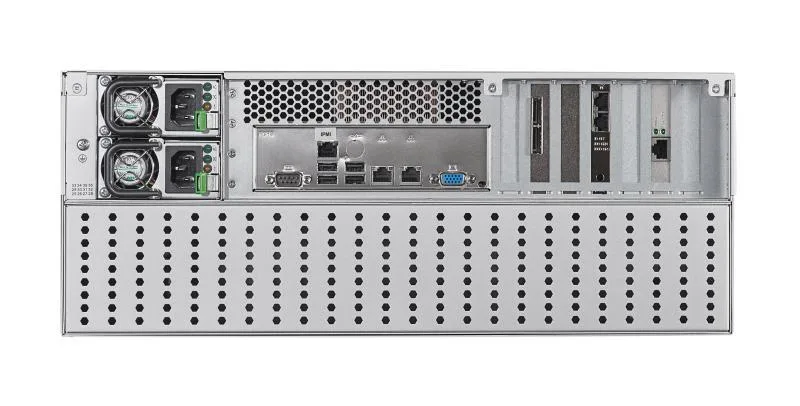

Hikvision DS-A72024R - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-A72024R - Hibrit kayıt cihazı
Hikvision

Hikvision DS-A72024R - Hibrit kayıt cihazı

Model kodu
DS-A72024R
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High-performance, scalable hardware platform. HDD detection and repair/RAID optimization. Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode). Advanced data protection (synchronous backup of key information in system disks). Energy efficient and user-friendly UI.

Teknik özellikler

Structure Server
Cache 8 GB (extendable to 128 GB)
Processor Dual 64-bit multi-core processor
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Downloading mode Quick download, batch download, download by segment, download by merging
Searching mode Search by time and event
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download no web page
Protocol iSCSI;RTSP;ONVIF;PSIA
USB 4
VGA 1
Data network interface 4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)
MiniSAS interface Supported
Controller parameters SAS Interface (Upper-level)
COM 1, for HyperTerminal or UPS
HDMI 1
Management network interface 1, 100M Ethernet interface
Direct streaming mode: video (2 Mbps) + picture 820-ch recording + playback
HDD model Hikvision,HK7216AH,16T; Hikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK726TAH,6T; Hikvision,HK724TAH,4T; Seagate,ST16000NM000J,16T; Seagate,ST10000NM017B,10T; Seagate,ST8000NM017B,8T; Seagate,ST6000NM019B,6T; Seagate,ST4000NM000B,4T
HDD slot 24
Interface/capacity SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare

Dokümanlar

Data Sheet - 24-slot High-performance Storage
