Hikvision DS-A72072R - Hibrit kayıt cihazı

Markaya göre filtrele

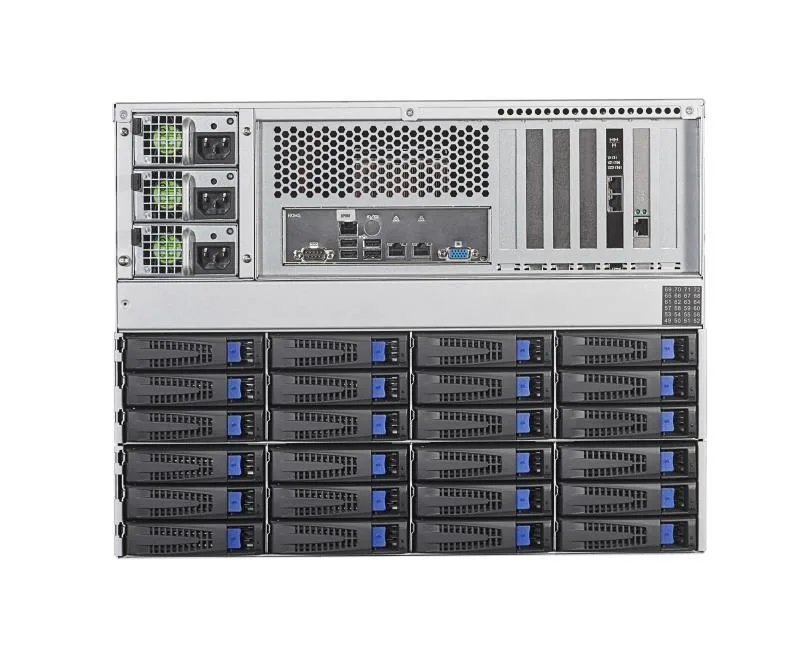

Hikvision DS-A72072R - Hibrit kayıt cihazı
Hikvision

Hikvision DS-A72072R - Hibrit kayıt cihazı

Model kodu
DS-A72072R
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High-performance, scalable hardware platform. HDD detection and repair/RAID optimization. Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode). Advanced data protection (synchronous backup of key information in system disks). Energy efficient and user-friendly UI

Teknik özellikler

Protocol iSCSI, RTSP, ONVIF, PSIA
USB 4
VGA 1
Data network interface 4, 1000M Ethernet interface
MiniSAS interface Supported
Controller Parameters SAS Interface (Upper-level)
COM 1, for HyperTerminal or UPS
HDMI 1
Management network interface 1, 100M Ethernet interface
HDD slot 72
Interface/capacity SATA/1 TB, 2 TB, 3 TB, 4 TB, 6 TB, 8TB,10TB,12TB,14TB,16TB
Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, hot spare
Direct Streaming Mode: video (2 Mbps) + picture 820-ch recording + playback
Video performance 820
Picture performance 820
Structure Server
Processor Dual 64-bit multi-core processor
Cache 8 GB (extendable to 128 GB)
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download no web page
HDD Model Hikvision,HK7216AH,16T; Hikvision,HK7210AH,10T; Hikvision,HK728TAH,8T; Hikvision,HK726TAH,6T; Hikvision,HK724TAH,4T; Seagate,ST16000NM000J,16T; Seagate,ST10000NM017B,10T; Seagate,ST8000NM017B,8T; Seagate,ST6000NM019B,6T; Seagate,ST4000NM000B,4T;
Power supply Redundancy (2 + 1)
Chassis 19-inch 8U
Consumption(with HDDs) Operating: ≤ 850 W (2899 BTU with 72 HDDs);Rated: ≤ 1360 W
Environment temperature Operating: 5 °C to 35 °C (41 °F to 95 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Humidity Operating: 20% to 80% RH (non-condensing/frozen) Storing: 5% to 90% RH (non-condensing/frozen)
Dimensions(W × D × H) 445 × 860 × 345 mm (17.5 × 33.9 × 13.6 in)
Weight (without HDDs) ≤ 52 kg (114.6 lb)

Dokümanlar

User Manual - 72-slot High-performance Storage
