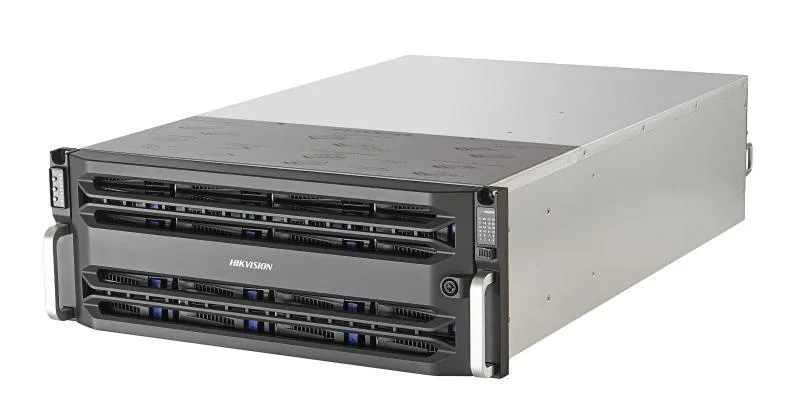

Hikvision DS-A82024D/192 - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-A82024D/192 - Hibrit kayıt cihazı
Hikvision

Hikvision DS-A82024D/192 - Hibrit kayıt cihazı

Model kodu
DS-A82024D/192
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Dual controller and real-time cache, optional BBU (Backup Battery Unit), one multi-core processor, 8 GB cache extendable to 32 GB per controller. High-performance, extendable hardware platform. HDD detection and repair/RAID optimization. Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode). Advanced data protection (synchronous backup of key information in system disks). Energy efficient and user-friendly UI

Teknik özellikler

Protocol iSCSI, RTSP, ONVIF, PSIA
USB 3
VGA 1
Data network interface 4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)/Controller
MiniSAS interface Supported
Management network interface 1, 1000M Ethernet interface/Controller
HDD slot 24
Interface/capacity SSD (optional), SAS/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping Supported
HDD support Single, RAID(Enterprise Hard Disk)
RAID RAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare
Direct Streaming Mode: video (2 Mbps) + picture 448-ch (recording + playback)
IPSAN Mode 256-ch (recording + playback)
Video performance 448
Picture performance 448
Structure Dual controller
Processor 64-bit multi-core processor
Cache 8 GB (extendable to 32 GB)/controller
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download no web page
HDD Model Seagate,ST8000NM018B,8T;
Power supply Redundant
Chassis 19-inch 4U
Consumption(with HDDs) Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W
Environment temperature Working: +5 °C to +35 °C (41 °F to 95 °F); Storing: -20 °C to +70 °C (-4 °F to 158 °F)
Humidity Working: 20% to 80%RH (non-condensing/frozen);   Storing: 5% to 90%RH (non-condensing/frozen)
Dimensions(W × D × H) 447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in)
Weight (without HDDs) ≤ 33.5 Kg (73.9 lb)

Dokümanlar

Data Sheet - 24-slot Storage with 24 pcs 8TB SAS IOT HDD Quick Start Guide - 24-slot Storage with 24 pcs 8TB SAS IOT HDD
