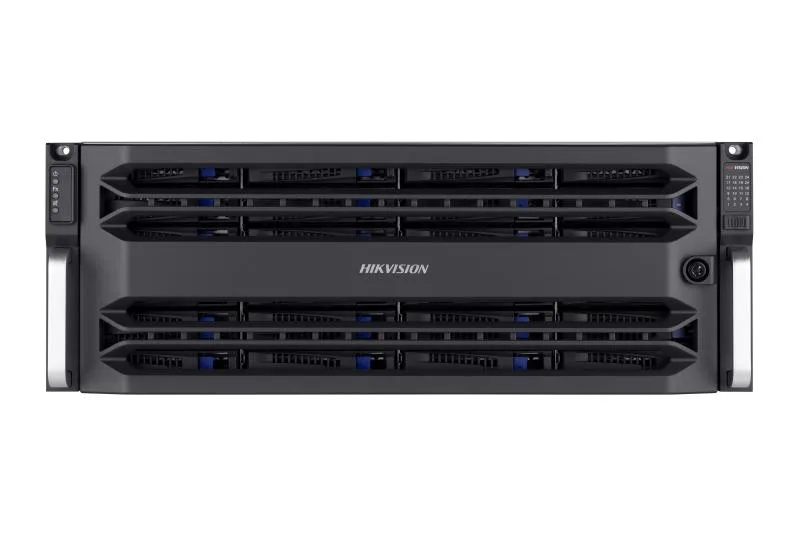

Hikvision DS-A83024S - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-A83024S - Hibrit kayıt cihazı
Hikvision

Hikvision DS-A83024S - Hibrit kayıt cihazı

Model kodu
DS-A83024S
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Economical and stable hardware platform. HDD detection and repair/RAID optimization. Surveillance-specialized direct storage (Direct Streaming mode+IP SAN mode). Advanced data protection (synchronous backup of key information in system disks). Energy efficient and user-friendly UI

Teknik özellikler

Recording mode: video (2 Mbps) + picture 1024-ch
Picture performance 200
Video performance 1024
Protocol iSCSI, RTSP, ONVIF, PSIA
USB 2*USB3.0，1*USB2.0
Data network interface 4, 1000M Ethernet interface (4 × 1GbE or 2 × 10GbE is extendable)
MiniSAS interface Supported
Controller Parameters SAS Interface (Upper-level)
COM 1, for HyperTerminal or UPS
Management network interface 1, 100M Ethernet interface
HDD slot 24
Interface/capacity SATA/1TB, 2TB, 3TB, 4TB, 6TB,8TB,10TB,12TB,14TB,16TB
Hot-swapping Supported
HDD support RAID(Enterprise Hard Disk)
RAID RAID 0, 1, 3, 5, 6, 10, 50, JBOD, hot spare
Structure Controller
Processor Dual 64-bit multi-core processor
Cache 16 GB (extendable to 384 GB)
Disk management Disk inspection, alarm and repair
Logical volume management iSCSI volume, video volume management
Recording mode Timing recording, manual recording, dual-stream recording, alarm recording
Video protection Lock key video, N+1 service protection, ANR, video loss detection and alarm
Searching mode Search by time and event
Downloading mode Quick download, batch download, download by segment, download by merging
Management mode Web-based GUI, serial port CLI, centralized management of multiple devices
Alarm mode Sound, light, email, message, web page
Log downloading Download no web page
HDD Model Hikvision,DS40HKAI-VX1,4T; Hikvision,DS60HKAI-VX1,6T; Hikvision,DS80HKAI-VX1,8T; Hikvision,DS100HKAI-VX1,10T; Hikvision,DS160HKAI-VX1,16T;
Power supply Redundancy (1 + 1)
Chassis 19-inch 4U
Consumption(with HDDs) Operating: ≤ 410 W (1398 BTU with 24 HDDs Rated: ≤ 875 W
Environment temperature Operating: 5 °C to 35 °C (41 °F to 95 °F) Storing: -20 °C to +70 °C (-4 °F to +158 °F)
Humidity Operating: 20% to 80% RH (non-condensing/frozen) Storing: 5% to 90% RH (non-condensing/frozen)
Dimensions(W × D × H) 484 x 724 x 174 (19.1 x 28.5 x 6.9 in)
Weight (without HDDs) ≤ 40 kg (88.2 lb)

Dokümanlar

Data Sheet - 24-slot Single Controller High-performance Storage
