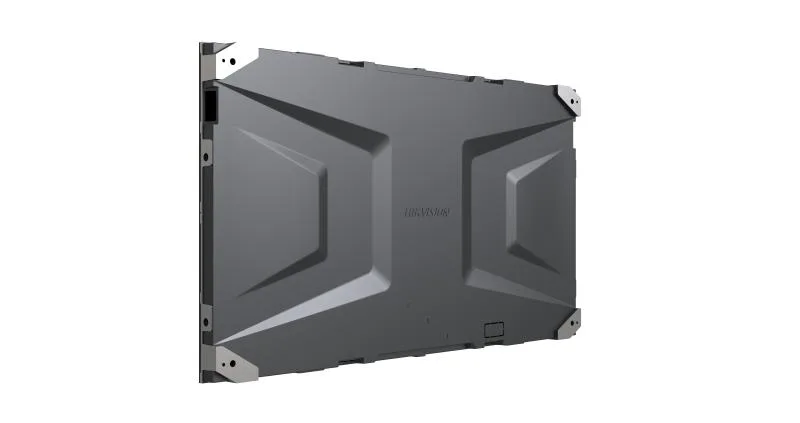

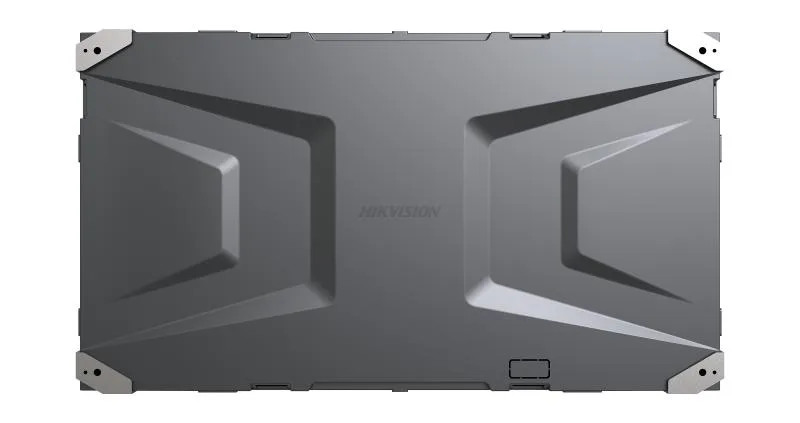

Hikvision DS-D4012BW-2FC/V1.0

Markaya göre filtrele

Hikvision DS-D4012BW-2FC/V1.0
Hikvision

Hikvision DS-D4012BW-2FC/V1.0

Model kodu
DS-D4012BW-2FC/V1.0
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

This Micro LED display and control system is wholly self-developed, which is stable, safety and controllable.. Highly integrated and compatible cabinet with simple and lightweight design.. Easy to disassemble lamp board, power supply, and receiving card on the front side with high- precision aluminum die casting cabinet design.. The solders are made of lead-free and non-toxic solder paste materials, which will not cause harm to human body and the environment.. Automatically identify high-brightness and harsh picture details and adjust the brightness of the partial zones with dynamic engine algorithms adopted. The image is soft and comfortable to view and its quality is enhanced when unnecessary power consumption is reduced.. Automatically remove moisture to protect lamp board from water damage when the device is kept in a humid environment or left unused for a long time.. Support multiple ways to adjust screen parameters via remote control, tablet, and platforms.

Teknik özellikler

Product Model DS-D4012BW-2FC
Product Type Fine Pixel Pitch Indoor Full-color LED Display
Pixel Configuration Flip-chip COB
Pixel Pitch 1.25 mm (0.049" )
Pixel Pitch Category P1.2
Pixel Density 640000 dots/㎡
Modules Component 2 × 2
Dimensions (W × H × D) 600 mm × 337.5 mm × 29.3 mm (23.622" × 13.287" × 1.154")
Resolution 480 × 270
Area 0.2025 ㎡
Weight 3.4 kg
Cabinet Material Aluminium die casting
Maintenance Method Front maintenance for all components
Dimensions 300 × 168.75 mm
Module Resolution 240 × 135
White Balance Brightness 600 cd/㎡
Color Temperature 3000-10000 K adjustable
Viewing Angle 160°(H)/160°(V)
Contrast Ratio 15000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Scanning Amount 60
Frame Frequency 60 Hz
Refresh Rate 3840 Hz
Grey Level 16 bit
Max. Consumption ≤ 300 W/㎡ （600nits）
Average Consumption ≤ 100 W/㎡
Input Voltage 100~240 VAC ± 10％
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 90% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 90% RH (without condensation)
Package Dimensions (W × H × D) 722 (W) mm × 438 (H) mm × 193 (D) mm (28.425 '' × 17.244 '' × 7.598 '')
Packing List Regulatory Compliance and Safety Information × 1 Several connecting screws, light beads, driver IC, iron sheets
G.W. 4.56 kg（1 package in 1 box）
Net Weight 3.4 kg
Modular Bracket DS-DL116033W 1*1;DS-DL126033W 1*2;DS-DL226033W 2*2

Dokümanlar

Data Sheet - DS-D4012BW-2FC/V1.0 600*337.5/mm (Stock)
