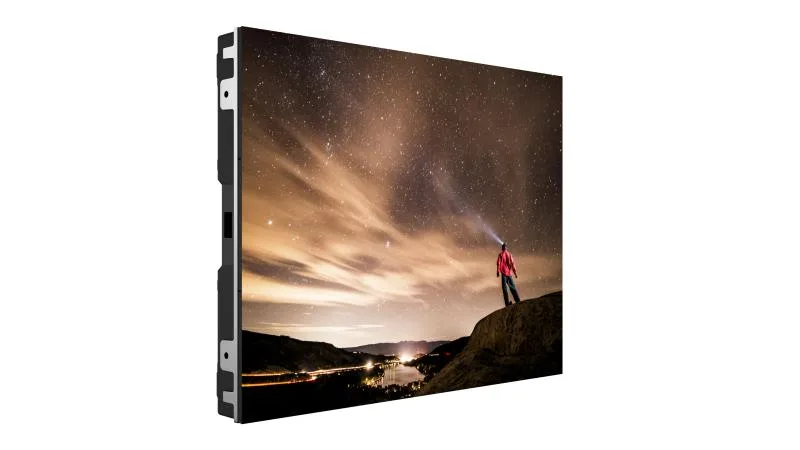

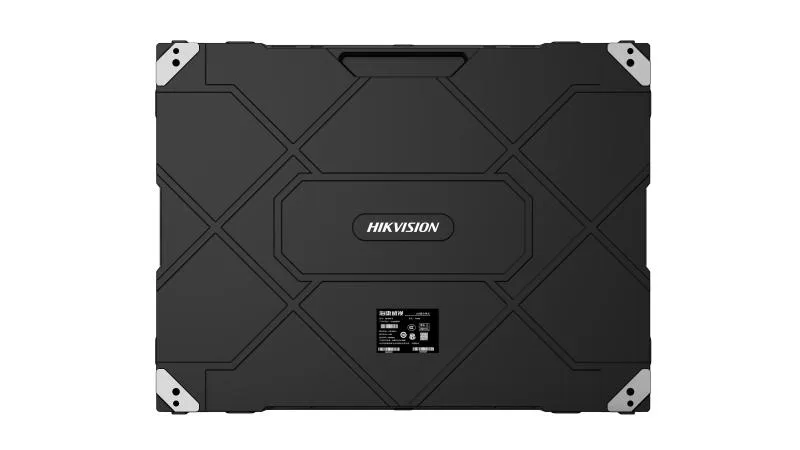

Hikvision DS-D4020CS-1F
Hikvision

Hikvision DS-D4020CS-1F

Model kodu
DS-D4020CS-1F
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Module cable-free design for easier installation. Ultra-thin backshell, excellent flatness. C13 power connector, global standard. Ultra-high contrast ratio, excellent color performance. 4:3 ratio cabinet, best choice for retail scene. Modular structure design, support module, power supply, receiver card front maintenance

Teknik özellikler

Product Model DS-D4020CS-1F
Product Type Indoor small pitch full color LED
Pixel Configuration SMD Triad LED
Pixel Pitch 2.0mm
Pixel Pitch Category P2.0
Pixel Density 250000 dots/m²
Modules Component 2 × 3
Dimensions (W × H × D) 640 mm × 480 mm × 58.6 mm (25.197 '' × 18.898 '' × 2.307 '')
Resolution 320 × 240
Area 0.3072㎡
Weight 7.55 kg (16.64lb.)
Cabinet Material Die cast aluminum
Maintenance Method Complete front maintenance
Dimensions 320×160mm
Module Resolution 160 × 80
White Balance Brightness 600 cd/㎡
Color Temperature 3000-10000 K adjustable
Viewing Angle 160°(H)/160°(V)
Contrast Ratio 5000:1
Color Uniformity ≤ ± 0.003Cx,Cy
Brightness Uniformity ≥ 97%
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate 3840 Hz
Grey Level Up to 16 bit
Max. Consumption ≤450W/㎡
Average Consumption ≤150W/㎡
Input Voltage 200~240 VAC ± 10%
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 60% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 85% RH (without condensation)
Package Dimensions (W × H × D) 758 (W) mm × 606 (H) mm × 442 (D) mm (29.843 '' × 23.858 '' × 17.402 '')
Packing List Qualification Card × 1 Warranty Card × 1 RoHS × 1 Several Joint pieces,Fixing screws and Signal cables
Net Weight 4 cabinets in 1 box: 19.3 kg ;24 lamp boards in 1 box: 12.0 kg
Modular Bracket DS-DL116448W 1*1;DS-DL126448W 1*2;DS-DL226448W 2*2
