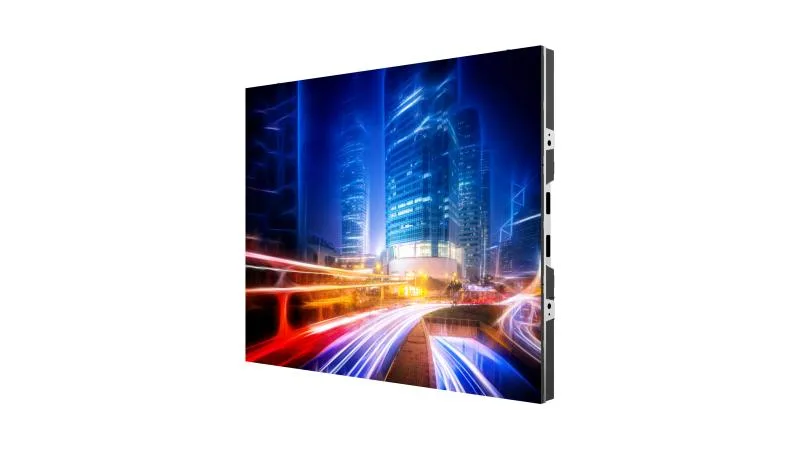

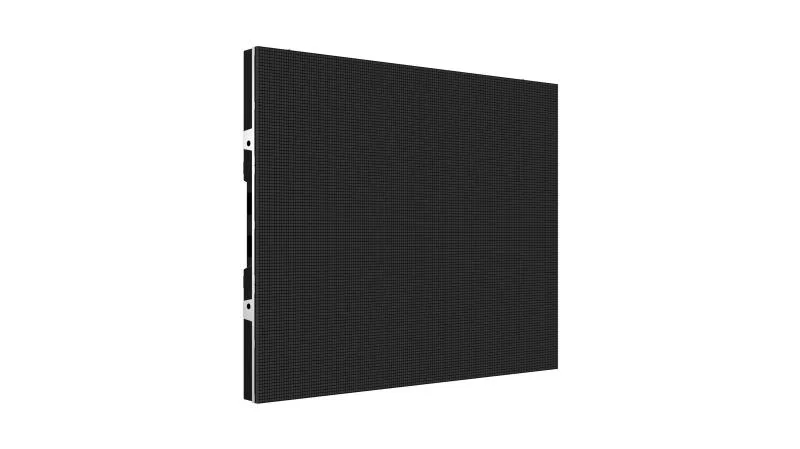

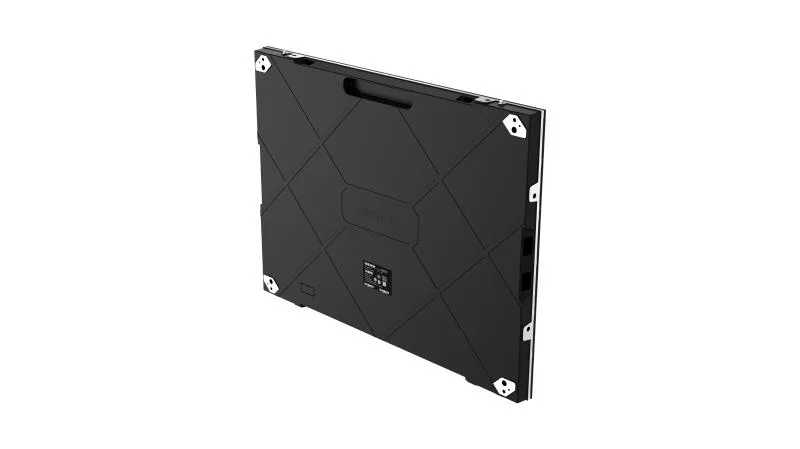

Hikvision DS-D4025CS-2F

Markaya göre filtrele

Hikvision DS-D4025CS-2F
Hikvision

Hikvision DS-D4025CS-2F

Model kodu
DS-D4025CS-2F
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

High refresh rate and Ultra-high contrast ratio, more delicate and smooth video , and more realistically image with excellent color performance. 4:3 ratio cabinet, best choice for high cost performance. Highly integrated and compatible cabinet with simple and lightweight design. Cable-free design and Ultra-thin backshell for easier installation, easier to level the lamp boards, and make the splicing more flat. Modular structure design, support module, power supply, receiver card front maintenance

Teknik özellikler

Product Model DS-D4025CS-2F
Product Type Indoor small pitch full color LED
Pixel Configuration SMD Triad LED
Pixel Pitch 2.5mm
Pixel Pitch Category P2.5
Pixel Density 160000 dots/m²
Modules Component 2 × 3
Dimensions (W × H × D) 640 (W) mm × 480 (H) mm ×36 (D) mm (25.197'' × 1.898'' × 1.42'')
Resolution 256 × 192
Area 0.3072 ㎡
Weight 5.5 kg (12.13 lb.)
Cabinet Material Die cast aluminum
Maintenance Method Complete front maintenance
Dimensions 320×160mm
Module Resolution 128 × 64
White Balance Brightness 600 cd/㎡
Color Temperature 3000-10000 K adjustable
Viewing Angle 160°(H)/160°(V)
Contrast Ratio 5000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate 3840 Hz
Grey Level Up to 16 bit
Max. Consumption ≤450W/㎡
Average Consumption ≤150W/㎡
Input Voltage 100~240 VAC ± 10％
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 60% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 85% RH (without condensation)
Package Dimensions (W × H × D) 758 (W) mm × 606 (H) mm × 442 (D) mm (29.843 '' × 23.858 '' × 17.402 '')
Packing List Regulatory Compliance and Safety Information × 1 Several Joint pieces,Fixing screws and Signal cables Several LED lamp beads and IC components
Gross Weight 6.5 kg (14.3 lb.)
Net Weight 5.5 kg (12.13 lb.)
Modular Bracket DP-D40XXCA23-1X1-Q0.3-NW-Q0.3-HC 1*1;DP-D40XXCA23-2X2-Q1-NW-Q1-HC 2*2
