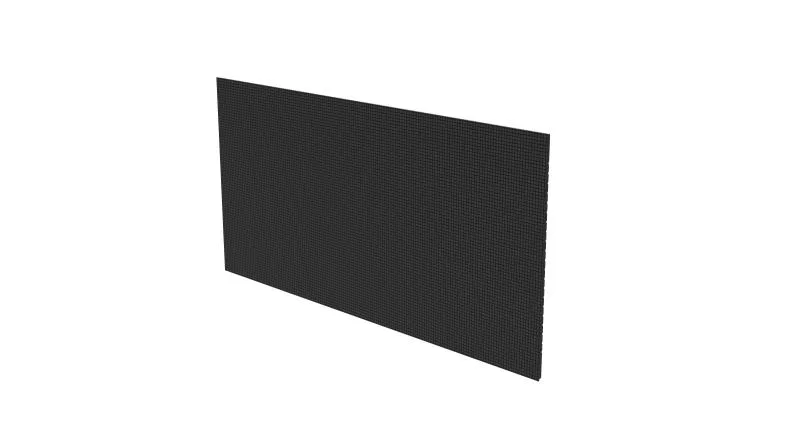

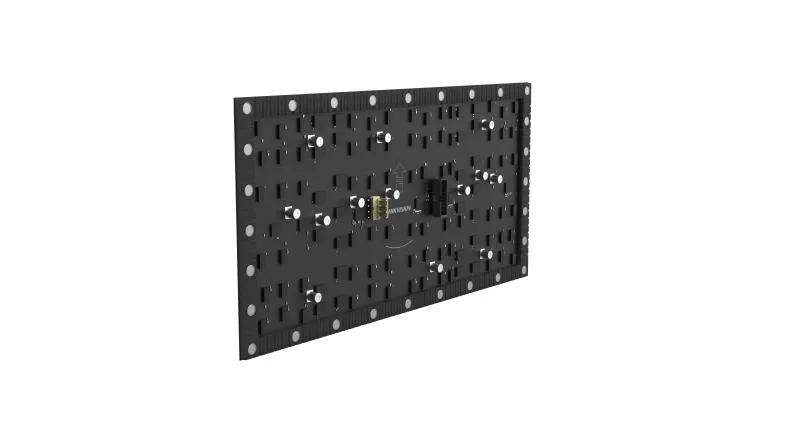

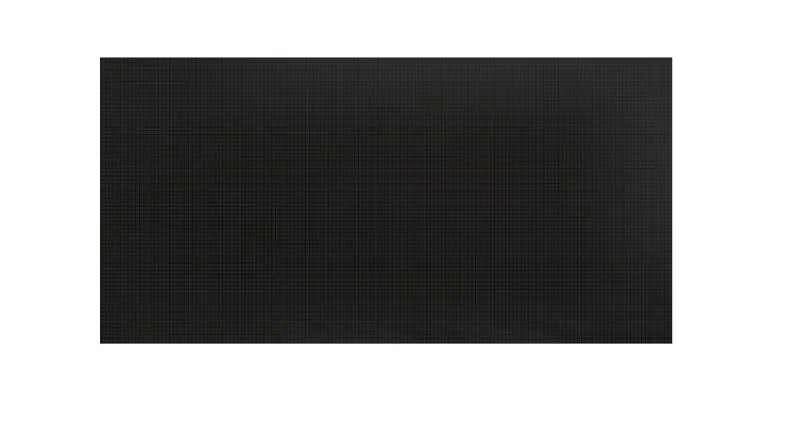

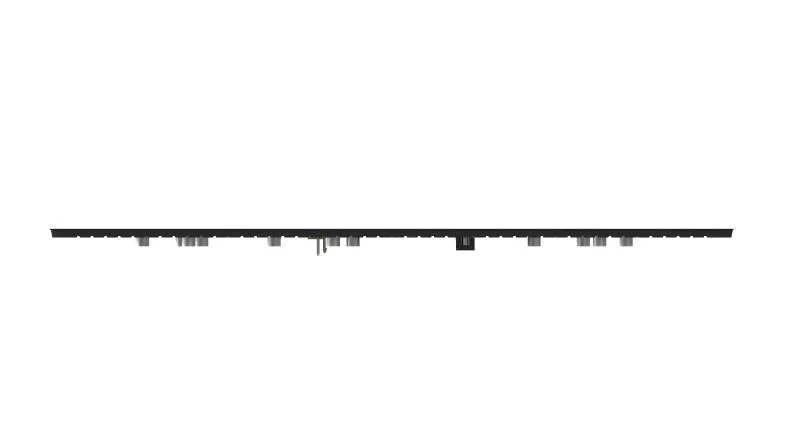

Hikvision DS-D41Q12CA-1GS

Markaya göre filtrele

Hikvision DS-D41Q12CA-1GS
Hikvision

Hikvision DS-D41Q12CA-1GS

Model kodu
DS-D41Q12CA-1GS
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Flexible and malleable: Select the flexible multi-layer PCB soft board, and silicon soft panel with a special texture structure design. Optimized circuit layout can ensure that the soft module is flexible to design various shapes.. Stable and citable: Fully tested and optimized magnet size and distribution structure design, cutting-edge magnetic suction density configuration can ensure a better fit of the soft module to the cabinet frame without seam.. Ultra-thin and lightweight: Advanced ultra-thin design, space-saving characteristic can help to design diverse shapes.. Fine pixel pitch: High-quality lamp beads, intelligent production line process to ensure that the high consistency of display effect of overall lamp beads with good quality, high contrast ratio, and high refresh rate.. Soft image: Hikvision’s self-developed control system and dynamic engine algorithm can help to automatically identify and handle the harsh images to realize senseless regulation and control. The image is soft and comfortable to view and its quality is enhanced while unnecessary power consumption is reduced, which is more energy saving.. Easy to install: The soft module is installed by strong magnetic adsorption, which is convenient to use and firmly adsorbed to the cabinet frame. It can be flexibly adjusted and meet the requirements of front maintenance, modular maintenance, and single-point maintenance with specific tools.. Environmentally friendly: Preferred PCB and silicone materials make soft modules more environmentally friendly and durable. The soft modules are produced from Hikvision's self-developed and self-produced lead-free production line, and strictly comply with the requirements of ROSH2.0 standards, which are safe and trustworthy.. Widely applied: Soft modules can be designed at will to easily create curved screens, cylindrical screens, ribbon screens, wave screens, etc. in various scenarios including shopping malls, retail stores, museums, corporate pavilions.

Teknik özellikler

Product Model DS-D41Q12CA-1GS
Pixel Configuration SMD Triad LED
Pixel Pitch Category P1.2
Pixel Pitch 1.25
Lamp Bead Dimensions 1010
Dimensions (W × H × D) 320 mm × 160 mm × 13 mm (12.60" × 6.30" × 0.51") (connectors contained)
Resolution 256 × 128
Weight 0.26 kg
Pixel Density 640000 dot/m²
Maintenance Method Front and Rear Maintenance
Signal Source Interface HUB320
Module Flatness ≤ 0.3 mm
Waterproof Level IP30
Component Material Silicon soft panel
Curvature Out Arc & Inner Arc ≥ 157°
White Balance Brightness 600cd/㎡
Color Temperature 3000 K to 10000 K adjustable
Viewing Angle 160°(H)/160°(V)
Brightness Uniformity ≥ 97%
Color Uniformity ≤ ± 0.003Cx，Cy
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
Optimal View Distance 1.6 m to 4.2 m
Blind Spot Rate < 0.0003, 0 by default
Power Interface VH4PIN
Driving Method Constant current driving
Scanning Amount 64S
Frame Frequency 60 Hz
Grey Level Up to 16 bit
Max. Consumption 450W/m²
Average Consumption 150W/m²
Input Voltage AC 100 V to 240 V~
Working Voltage DC 4.5 V to 5 V
Modular Max. Consumption 23 W
Modular Max. Current 5 A
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 80% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 85% RH (without condensation)
Package Dimensions (W × H × D) 634 (W) mm × 410 (H) mm × 380 (D) mm (24.96 '' × 16.14 '' × 14.96 '')
Packing Method 48 modules in 1 package
Packing List Lamp beads, Driver IC, signal cables, 5 V power cables，protective sticker
Gross Weight 0.32 kg (0.71 lb)
Net Weight 0.26 kg (0.57 lb)
Min. Diameter 815 mm
