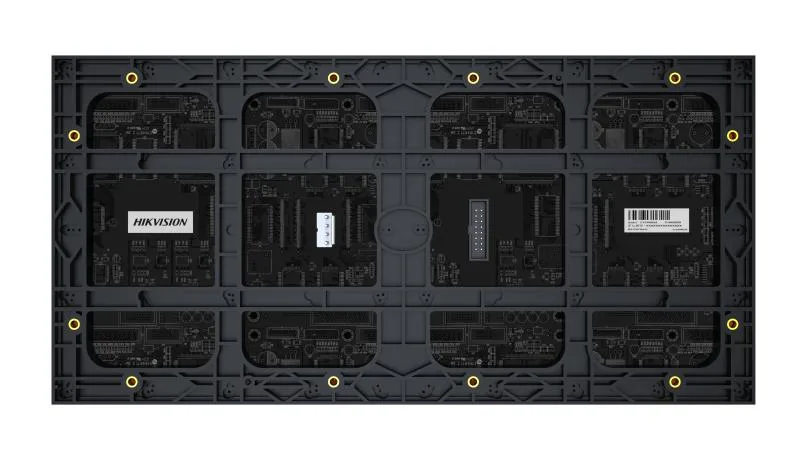

Hikvision DS-D41Q20CA-1PH

Markaya göre filtrele

Hikvision DS-D41Q20CA-1PH
Hikvision

Hikvision DS-D41Q20CA-1PH

Model kodu
DS-D41Q20CA-1PH
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines. Uses the ultra-high refresh rate to display delicate and smooth video images. Uses the broadcast grayscale processing to show more image details. High brightness and high contrast

Teknik özellikler

Product Model DS-D41Q20CA-1PH
Pixel Configuration SMD Triad LED
Pixel Pitch Category P2.0
Pixel Pitch 2 mm
Lamp Bead Dimensions 1515
Dimensions (W × H × D) 320 mm × 160 mm × 17 mm
Resolution 160 × 80
Pixel Density 250000
Signal Source Interface HUB75E
White Balance Brightness 600cd/㎡
Color Temperature 3000—10000K adjustable
Viewing Angle 160°(H)/160°(V)
Brightness Uniformity ≥97%
Color Uniformity ≤ ± 0.003Cx，Cy
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
Scanning Amount 40
Grey Level Up to 16 bit
Max. Consumption ≤ 470 W/㎡
Average Consumption ＜ 270 W/㎡
Input Voltage DC：4.5~5V
Working Temperature -10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
Working Humidity 10% to 80% RH (without condensation)
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Storage Humidity 10% to 85% RH (without condensation)
Package Dimensions (W × H × D) 673 (W) mm × 453 (H) mm × 390 (D) mm（40 cabinets in 1 box）
Packing List Several high magnetic brackets Several LED lamp beads and IC components Several signal cables and power cables
Gross Weight 0.61 Kg
Net Weight 0.48 Kg
Weight 0.48 Kg

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
