Hikvision DS-D4229FO-CLFS

Name: Hikvision DS-D4229FO-CLFS
Brand: Hikvision

Markaya göre filtrele

ABB Absen Ajax APart Audio Aruba Aselsan AselsanNET Astor Şarj ASUS Atlas Turnike Bawcon Biwin Bosch Bticino BULLWARK CamBox CAME Cenova Commax Dahua Dayline Dayzip Decon Dell DSC Alarm EATON Endikal Eşarj EZVIZ FAAC Fanvil Finder Formrack Fujitron Gigaset Global GVD Hikvision HiLook Hochiki HP Imou Inform Inter-M Jabra Kamera Kutusu Karel Lande Legrand Leyard LifeSmart Mavili Multitek Netelsan NETGEAR Neutron Nice Notifier Omada Osram Özak Panasonic Paradox Philips Proxsen QNAP Rapoo Reyee Ruijie Schneider Electric Seagate Suprema Teknim Teknosec Teletek Tenda Tescom Tiandy TOA Toshiba TP-Link Ttec Ubiquiti Unilumin Uniwiz UNV Vestel vGUARD Westa Western Digital Wisetech ZES ZKTeco ZYXEL

Hikvision

Hikvision DS-D4229FO-CLFS

Model kodu: DS-D4229FO-CLFS
Sistem: Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

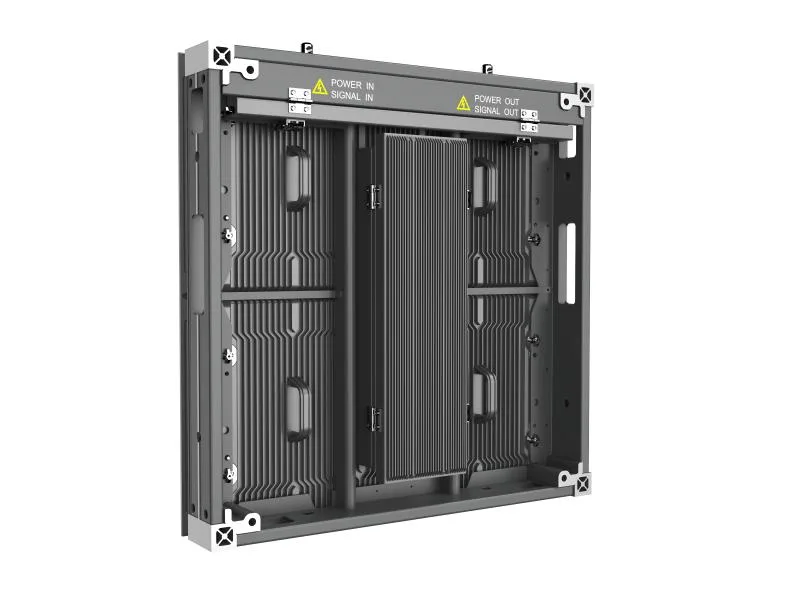

Support front and rear maintenance. Using aluminum chassis with good heat dissipation, workable under 60 °C. All series aluminum profile cabinets support IP67(F)/IP66(R). Apply unique technology, maximally saving 30% energy. Various cabinet sizes, applying to diverse scenes. The cabinets support customized 45° corner cut to realize 90° right-angle splicing

Teknik özellikler

Pixel Configuration	SMD Triad LED
Pixel Pitch Category	P2.9
Pixel Pitch	2.97 mm
Modules Component	Aluminum Shell
Dimensions (W × H × D)	500 mm × 500 mm × 97 mm (19.7" × 19.7" × 3.82")
Resolution	168 × 168
Area	0.25
Weight	9.5KG/PCS
Pixel Density	112896 dots/m²
Lamp Board Housing	YES
Cabinet Material	Aluminum Profile
Maintenance Method	Front/Back Maintenance
Cabinet Flatness	0.8mm
Protection Level	IP67(F)/IP66(R)
White Balance Brightness	4500 cd/㎡
Color Temperature	3000K-10000K
Viewing Angle	160°（H）/80°（V）
Contrast Ratio	5000:1
Color Uniformity	≧95%
Brightness Uniformity	≧95%
Driving Method	Constant Current
Frame Frequency	50/60HZ
Refresh Rate	3840
Grey Level	14bit
Display Color	DCI-P3 ＞85%
Power Supply	110-220
Max. Consumption	560
Average Consumption	180
Working Temperature	-40~+60℃
Working Humidity	10% to 95% RH (non-condensing)
Storage Humidity	10% to 95% RH (non-condensing)
Storage Temperature	-40~+60℃
Gross Weight	129 kg
Package Dimensions (W × H × D)	730 (W) mm × 580 (H) mm × 670 (D) mm (28.74 '' × 22.83 '' × 26.37 '')
Lifespan	100000 Hours

Dokümanlar

Data Sheet - P2.9 Outdoor Fixel LED Display Unit
