Hikvision DS-D4248CD-1AAB

Markaya göre filtrele

Hikvision DS-D4248CD-1AAB
Hikvision

Hikvision DS-D4248CD-1AAB

Model kodu
DS-D4248CD-1AAB
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

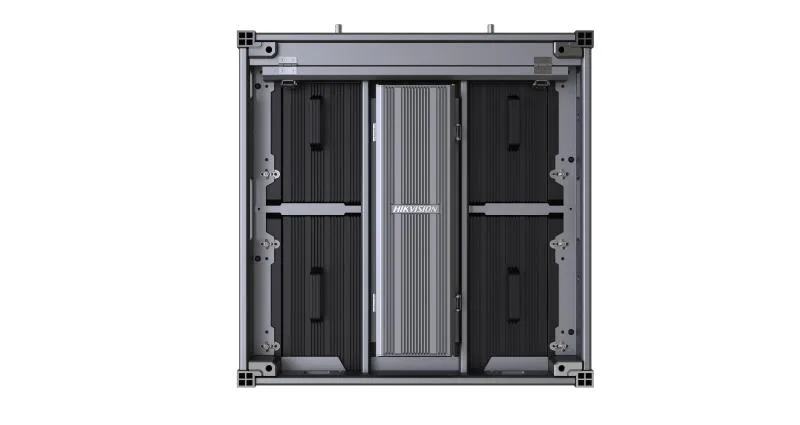

Aluminum box structure design, box light, high flatness, support IP66 protection level, support front and back maintenance two maintenance methods. Aluminum profile + aluminum shell, all metal aluminum box configuration, high heat dissipation efficiency. Support automatic dehumidification, effective protection of long time or humid environment lamp bead. Support wall type, floor type and other installation methods. Adopt aviation plug design, installation and construction is simple and efficient. Solder joint using lead-free non-toxic solder paste material, will not cause harm to human body and environment

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P4.8
Pixel Pitch 4.81mm
Modules Component 1 × 2
Dimensions (W × H × D) 500 mm × 500 mm × 97 mm
Resolution 104×104
Area 0.25 m²
Weight 9.12 Kg
Pixel Density 43264 dots/m²
Lamp Board Housing With housing
Cabinet Material Aluminum Profile
Maintenance Method Front and Rear maintenance
Cabinet Flatness 0.8 mm
Protection Level IP66
White Balance Brightness 4500 nit (Factory preset brightness) 5000 nit (Peak)
Color Temperature 9300K adjustable
Viewing Angle Horizontal 160°, vertical 128°
Contrast Ratio ≥ 5000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 95％
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate Up to 3840 Hz
Grey Level Up to 14 bit
Lamp Encapsulation 1921
Control System Hikvision
Power Supply 110~220 VAC ± 15%
Max. Consumption ≤ 650W/㎡ （4500nits）
Average Consumption ≤ 210 W/㎡ （4500nits）
Working Temperature -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity 10%~80%RH
Storage Humidity 10%~90%RH
Storage Temperature -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
Gross Weight 10.85KG/1 in 1
Package Dimension (W × H × D) 610mm x 165mm x 606mm
Lifespan Lamp 100,000 hours

Dokümanlar

Data Sheet - P4.8 Outdoor LED Display Unit
