Hikvision DS-D4248CF-1AAB

Markaya göre filtrele

Hikvision DS-D4248CF-1AAB
Hikvision

Hikvision DS-D4248CF-1AAB

Model kodu
DS-D4248CF-1AAB
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

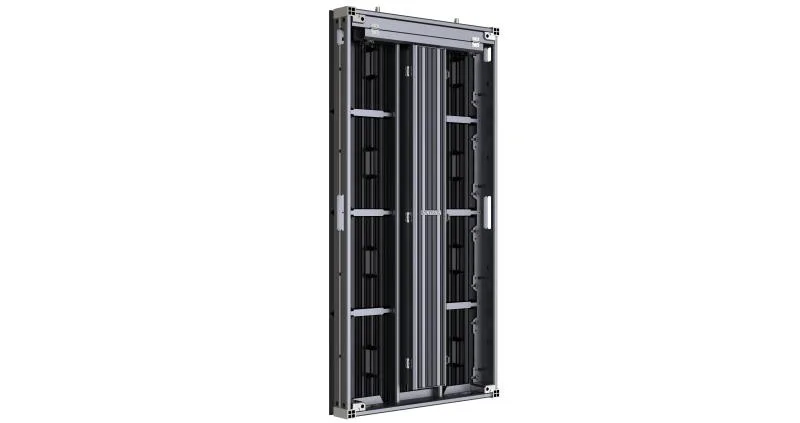

The luminaire is designed with an aluminum cabinet structure, which is lightweight, flat, and has high flatness. It supports IP66 protection level and can be maintained from the front or rear.. The luminaire is equipped with an aluminum profile and an aluminum cabinet, which has a high heat dissipation efficiency.. It supports wall-mounted and ground-mounted installation methods.. Support wall type, floor type and other installation methods. The luminaire uses aviation plug design, which makes installation and construction simple and efficient.. The solder joints use lead-free and non-toxic solder paste materials, which do not harm the human body or the environment.

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P4.8
Pixel Pitch 4.8 mm
Modules Component 1 × 4
Dimensions (W × H × D) 500 mm × 1000 mm × 97 mm （19.69" × 39.37" × 3.82"）
Resolution 104 × 208
Area 0.5 m²
Weight 18.24 kg
Pixel Density 43264 dots/m²
Lamp Board Housing With housing
Cabinet Material Aluminum Profile
Maintenance Method Front and Rear maintenance
Cabinet Flatness 0.8 mm
Protection Level IP66
White Balance Brightness 4500 nit (Factory preset brightness) 5000 nit (Peak)
Color Temperature 9300K adjustable
Viewing Angle Horizontal 160°, vertical 128°
Contrast Ratio ≥ 5000:1
Color Uniformity ≤ ± 0.004Cx，Cy
Brightness Uniformity ≥ 95％
Driving Method Constant current driving
Frame Frequency 50/60 Hz
Refresh Rate Up to 3840 Hz
Grey Level 14 bit adjustable
Control System Hikvision
Power Supply 110 to 220 VAC ± 15%
Max. Consumption ≤ 521 W/㎡ （5000nits）
Average Consumption ≤ 174 W/㎡ （5000nits）
Working Temperature -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity 10%~95%RH (No condensation)
Storage Humidity 10%~95%RH (No condensation)
Storage Temperature -40 ℃ to +60 ℃ (-40 ℉ to +140 ℉)
Gross Weight 20.6 kg/1 in 1
Package Dimension (W × H × D) 1108 mm x 165 mm × 606 mm（38.25" × 6.50" × 23.86"）
Packing List Three-in-one document (Certificate of Conformity / Warranty Card / Material Safety Data Sheet), accessory list × 1
Lifespan Lamp 100,000 hours

Dokümanlar

Data Sheet - P4.8 Outdoor LED Display Unit
