Hikvision DS-D4248FO-CLFS

Markaya göre filtrele

Hikvision DS-D4248FO-CLFS
Hikvision

Hikvision DS-D4248FO-CLFS

Model kodu
DS-D4248FO-CLFS
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

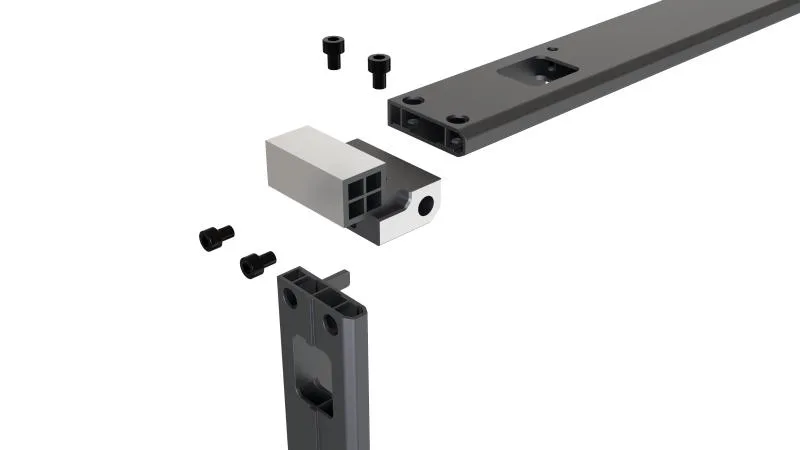

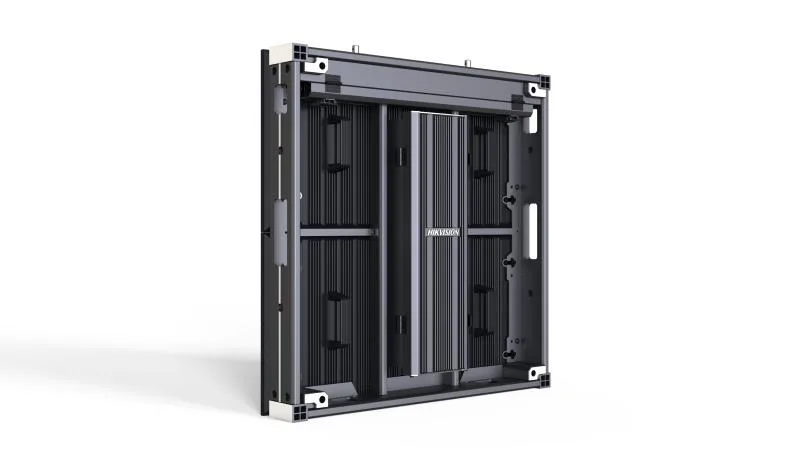

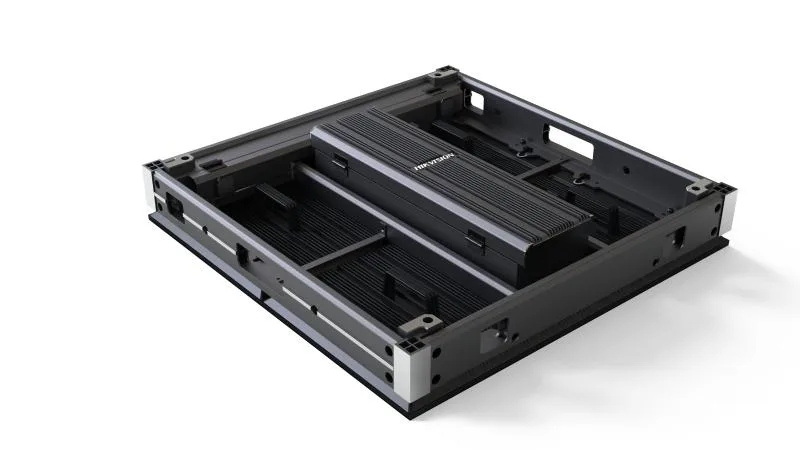

Support front and rear maintenance. Using aluminum chassis with good heat dissipation, workable under 60 °C. All series aluminum profile cabinets support IP67(F)/IP66(R). Apply unique technology, maximally saving 30% energy. Various cabinet sizes, applying to diverse scenes. The cabinets support customized 45° corner cut to realize 90° right-angle splicing

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P4.8
Pixel Pitch 4.81 mm
Modules Component Aluminum Shell
Dimensions (W × H × D) 500 mm × 500 mm × 97 mm (19.7" × 19.7" × 3.82")
Resolution 104 × 104
Area 0.25
Weight 9.12KG/PCS
Pixel Density 43264 dots/m²
Lamp Board Housing Yes
Cabinet Material Aluminum Profile
Maintenance Method Front/Back Maitenance
Cabinet Flatness 0.8mm
Protection Level IP67(F)/IP66(R)
White Balance Brightness 4500 cd/㎡
Color Temperature 3000K-10000K
Viewing Angle 160°（H）/80°（V）
Contrast Ratio 5000:1
Color Uniformity ≧95%
Brightness Uniformity ≧95%
Driving Method Constant Current
Frame Frequency 50/60HZ
Refresh Rate 3840
Grey Level 14bit
Display Color DCI-P3 ＞85%
Lamp Encapsulation Nationstar Copper
Control System Novastar A5S+
Power Supply 110-220
Max. Consumption 650
Average Consumption 210
Working Temperature -40~+60℃
Working Humidity 10% to 95% RH (non-condensing)
Storage Humidity 10% to 95% RH (non-condensing)
Storage Temperature -40~+80℃
Gross Weight 75
Package Dimension (W × H × D) 730X580X680
Lifespan 100000 Hours

Dokümanlar

Data Sheet - P4.8 Outdoor Fixel LED Display Unit
