Hikvision DS-D4266CO-2APA

Markaya göre filtrele

Hikvision DS-D4266CO-2APA
Hikvision

Hikvision DS-D4266CO-2APA

Model kodu
DS-D4266CO-2APA
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

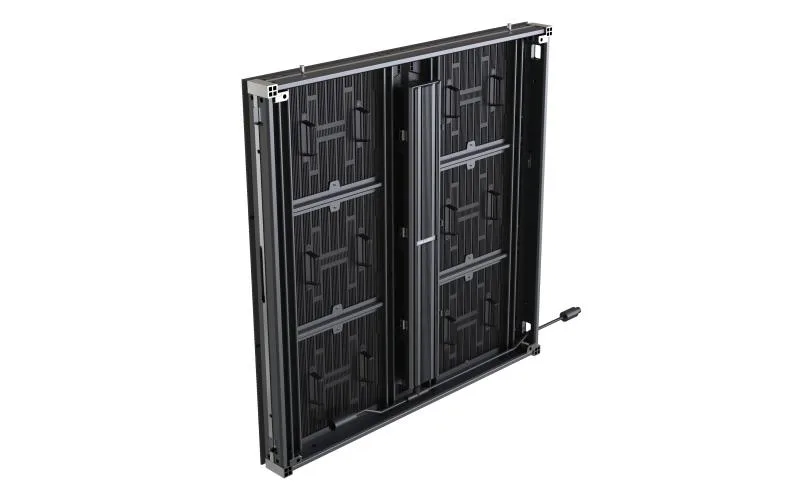

Adopt energy-saving scheme, RGB LED IC power supply accurate distribution, energy consumption reduced by 40%+. Well-designed heat dissipation scheme, no air conditioning can deal with high temperature weather *. Use aviation plug to transmit power and signal between the box, with excellent sun protection and corrosion resistance. Adopt aluminum cabinet, splicing flatness is high, weight only 24kg/pcs. Meet CE/CB and other international certification standards, stable and reliable quality

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P6.6
Pixel Pitch 6.67 mm
Modules Component 3 × 2
Dimensions (W × H × D) 960 mm × 960 mm × 100 mm
Resolution 144 × 144
Area 0.9216 m²
Weight 24 Kg
Pixel Density 22500 dots/m²
Lamp Board Housing With housing
Cabinet Material Aluminum Profile
Maintenance Method Front/Rear maintenance
Protection Level IP66
White Balance Brightness 6500 nit (Factory preset brightness) 7000 nit (Peak)
Color Temperature 9300K adjustable
Viewing Angle Horizontal 160°, vertical 130°
Contrast Ratio ≥ 8000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Frame Frequency 50/60 Hz
Refresh Rate Up to 7680 Hz
Grey Level 14~16 bit adjustable
Lamp Encapsulation 2727(Copper)
Control System Hikvision
Power Supply 110~220 VAC ± 15%
Max. Consumption ≤490 W/m² （6500nits）
Average Consumption ≤160 W/m² (6500nits)
Working Temperature -40 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Working Humidity 10%~95%RH (No condensation)
Storage Humidity 10%~95%RH (No condensation)
Storage Temperature -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Gross Weight 27.8kg /1 in 1
Package Dimension (W × H × D) 1140 (W) mm × 244 (H) mm × 1068 (D) mm
Lifespan Lamp 100,000 hours

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
