Hikvision DS-D42A0CO-1BAB

Markaya göre filtrele

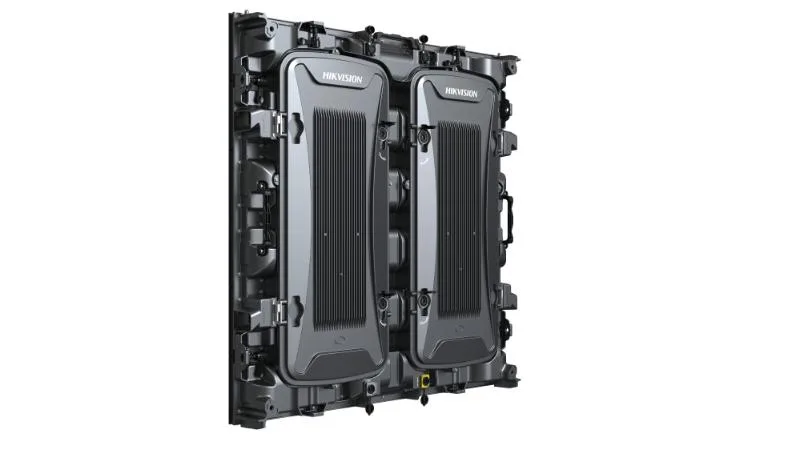

Hikvision DS-D42A0CO-1BAB
Hikvision

Hikvision DS-D42A0CO-1BAB

Model kodu
DS-D42A0CO-1BAB
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Widely applied in outdoor permanent advertising scenes. Thin and light cabinet with the die-casting aluminum design. IP45 rating for both front and back. Free of air conditioners with multiple ventilation modes working together inside the cabinets. Standing, wall mount, and lifting available for installation. Customizable as stadium LED screens

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P10
Pixel Pitch 10 mm
Modules Component 3 × 6
Dimensions (W × H × D) 960 mm × 960 mm × 94 mm
Resolution 96 × 96
Area 0.9216 m²
Weight 32.95 kg
Pixel Density 10000 dots/m²
Lamp Board Housing With housing
Cabinet Material Diecasting Aluminium
Maintenance Method Back maintenance
Cabinet Flatness 0.2 mm
Protection Level IP45
Lamp Encapsulation 2727 (Copper)
Control System DS-D42C04-H
White Balance Brightness 4500 nit (Factory preset brightness) 5000 nit (Peak)
Color Temperature 12000K～14000K adjustable
Viewing Angle Horizontal 160°, vertical 140°
Contrast Ratio ≥ 5000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Frame Frequency 50/60 Hz
Refresh Rate Up to 3840 Hz
Grey Level 13bit~15bit adjustable
Power Supply 110~220 VAC ± 15%
Max. Consumption ≤ 538 W/m² (4500nits)
Average Consumption ≤ 179 W/m² (4500nits)
Working Temperature -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity 10%~90%RH (No condensation)
Storage Humidity 10%~90%RH (No condensation)
Storage Temperature -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Gross Weight 150 kg /4 in 1
Package Dimension (W × H × D) 1108mm x 703mm x 1194mm
Lifespan Lamp 100,000 hours
