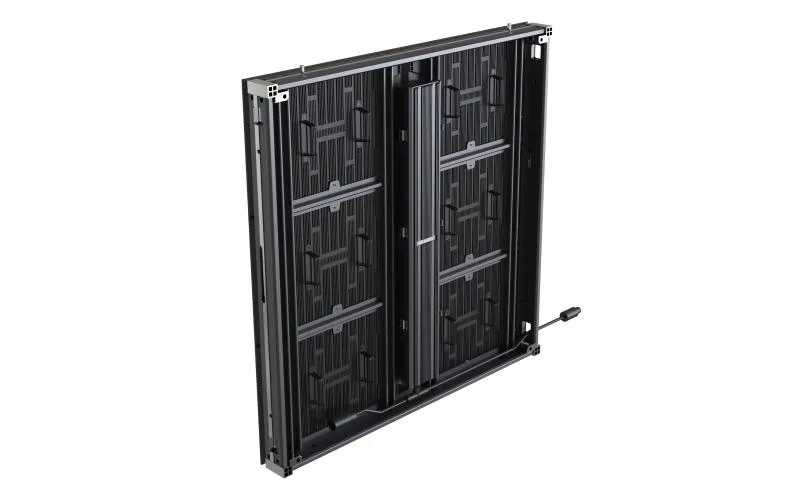

Hikvision DS-D42A0GO-2AAA
Hikvision

Hikvision DS-D42A0GO-2AAA

Model kodu
DS-D42A0GO-2AAA
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Adopt energy-saving scheme, RGB LED IC power supply accurate distribution, energy consumption reduced by 40%+. Well-designed heat dissipation scheme to cope with hot weather without air conditioner. Use aviation plug to transmit power and signal between the cabinet, with excellent sun protection and corrosion resistance. The aluminum cabinet features high flatness of splicing and weighs only 24 kg.. Meet CE/CB and other international certification standards, stable and reliable quality

Teknik özellikler

Modules Component 3 × 2
Resolution 96 × 96
Pixel Configuration SMD Triad LED
Pixel Pitch Category P10
Pixel Pitch 10 mm
Lamp Bead Dimensions 2727
Dimensions (W × H × D) 960 mm × 960 mm × 100 mm (37.795'' × 37.795'' × 3.973'')
Area 0.9216 m²
Weight 27.6 Kg
Pixel Density 10000 dots/m²
Maintenance Method Front/Rear maintenance
Waterproof Level IP66
Component Material Aluminum Profile
White Balance Brightness 9000 nit (Factory preset brightness) 10000 nit (Peak)
Color Temperature 9300K adjustable
Viewing Angle Horizontal 160°, vertical 130°
Contrast Ratio ≥ 8000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Frame Frequency 50/60 Hz
Refresh Rate Up to 7680 Hz
Grey Level 14~16 bit adjustable
Lamp Encapsulation 2727(gold wire)
Control System Hikvision
Power Supply 110~220 VAC ± 15%
Max. Consumption ≤488 W/m² （9000nits）
Average Consumption ≤163 W/m² （9000nits）
Working Temperature -40 ℃ to 60 ℃ (-40 ℉ to 140 ℉)
Working Humidity 10%~95%RH (No condensation)
Storage Humidity 10%~95%RH (No condensation)
Storage Temperature -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
Gross Weight 32.35 kg /1 in 1
Package Dimension (W × H × D) 1140 (W) mm × 244 (H) mm × 1068 (D) mm
Lifespan Lamp 100,000 hours
