Hikvision DS-D42B01-N
Hikvision

Hikvision DS-D42B01-N

Model kodu
DS-D42B01-N
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Loading capacity up to 650,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels. 2x Gigabit Ethernet ports. Allows for play content imported from a USB drive and firmware upgrade over USB

Teknik özellikler

Brightness Control 1-100 Levels
Frame Frequency 30HZ-60HZ
Grey Level 256
Display Color 1 Billion
Processing Depth 8bit
Image Scaling Support
Product Model DS-D42B01-N
Chassis Height 0.9U
Chassis Width 3.12U
Average Consumption ≤18W
Number of power interfaces 1
Power interface specifications 100-240V~，50/60Hz，0.6A
Working Temperature -20℃～+60℃
Storage Humidity 0%RH～80%RH
Working Humidity 0%RH～80%RH
Storage Temperature -40℃～+80℃
Packaging Size (W × H × D) 385.0mm×280.0mm×75.0mm
Net Weight 1228.9g
Gross Weight 1648.5g
Dimensions (W × H × D) 274.3mm×139.0mm×40.0mm
Packing List 1x Wi-Fi omnidirectional antenna 1x AC power cord 1x Quick Start Guide 1x Packing list"
Product Type LED Controller
Audio Input Interface(s) NA
Audio Input Interface Type NA
Video Input Interface(s) 1
Video Input Interface Type NA
Max. Input Resolution NA
Video Input Resolution NA
Video Input Processing Characteristics NA
Max. Output Resolution 0.65 Million
Loading Capacity for Video Output to LED Single port with load 650000 Width 64~4096 Height 64~4096
LED Loading Interfaces 2
LED Loading Interface Type RJ45
Number of video ring pass output interfaces NA
Video looping output interface type NA
Video looping output resolution NA
Audio Output Interface(s) 1
Audio Output Interface Type 1 LINE OUT 3.5mm audio out
Screen NA
Key SWITCH

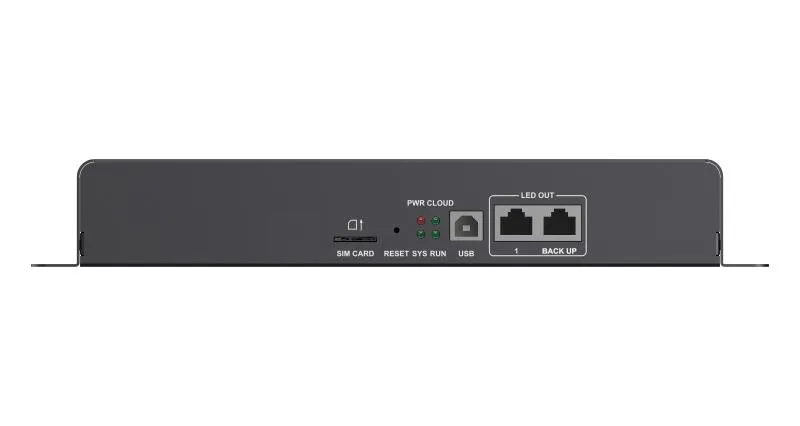

pilot lamp PWR:RED, Staying on-The power supply is working properly SYS:GREEN, Flashing once every 2s-The operating system is functioning normally Staying on/off-The operating system is malfunctioning CLOUD:GREEN Staying on-The DS-D42B01-N is connected to the Internet and the connection is available Flashing once every 2s-The DS-D42B01-N is connected to VNNOX and the connection is available Flashing once every second-The DS-D42B01-N is upgrading the operating system Flashing once every 0.5s-The DS-D42B01-N is copying the upgrade package. RUN:GREEN Flashing once every second-The FPGA has no video source Flashing once every 0.5s-The FPGA is functioning normally Staying on/off-The FPGA loading is abnormal

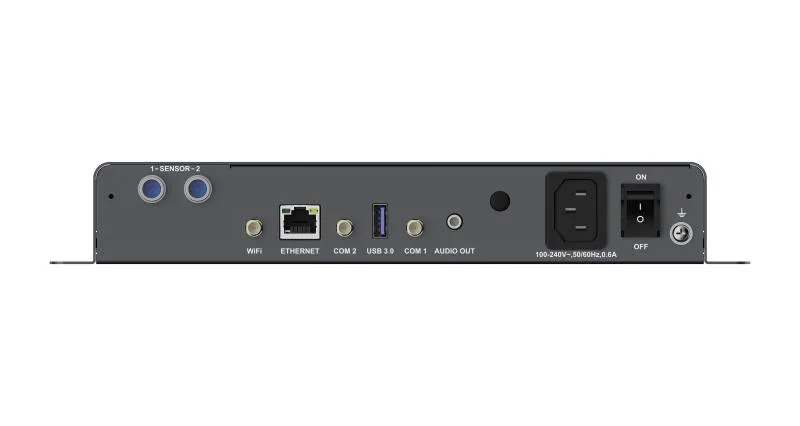

Control network port "1 RJ45, 10M/100M/1000M adaptive Ethernet ports Used to connect to external networks, can support multi-device network cascade management"
3D interface NA
IR input NA
Serial Interface 1XGigabit Ethernet port
Light perception 2XSENSOR
USB 1XUSB 3.0
On-off Switch

Dokümanlar

Data Sheet - LED controller
