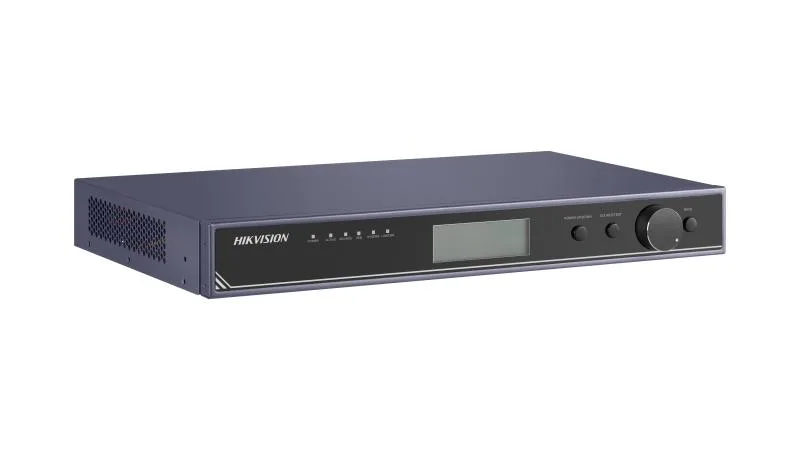

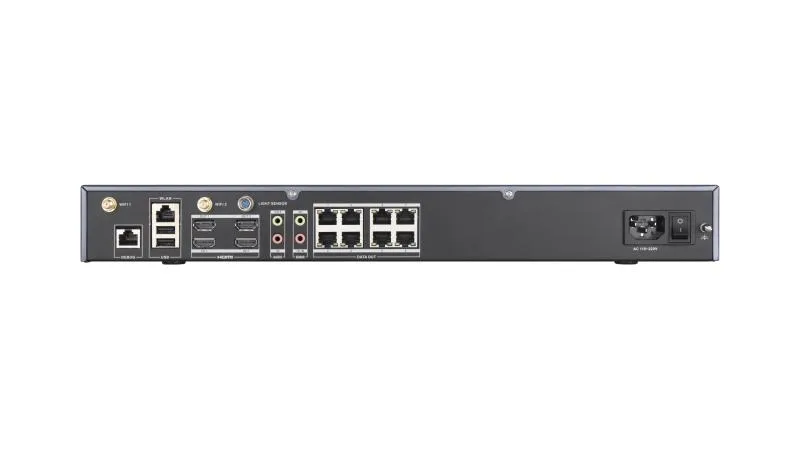

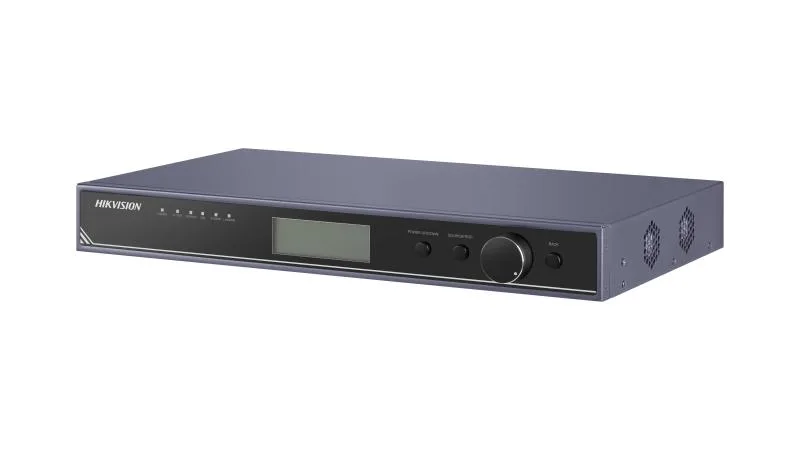

Hikvision DS-D42C08-H
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
8 Gigabit Ethernet output ports, with up to 4096 × 2160@30 Hz signal input.. Up to 3840 × 1080@60 Hz signal input. Point-to-point display for 8 network interfaces.. Automatic source search: Enabled by default.. 3D synchronized signal input and output interface: 3D signal accessible, 3840 × 1080@60 Hz input and output for each card.. Audio device access: Audio device accessible, with audio input and output interfaces.. Light sensor extension: Realize light sensor adjustment with no need to add a multi-functional card.. Dual-mode remote control expansion interfaces: Infrared and USB RF Wi-Fi expansion interfaces, remote control enabled.. Competent with load capacity: 5 MP.. Cloud upgrade: Remote cloud online upgrade accessible.. Strip display: Single line super long subtitle display with the content being left-justified, right-justified, centered, or scrolled.. Scene management: Scenes customizable and switchable.. Multi-controller cascade display realizes better synchronization.. 3480 Hz high refresh rate and nanosecond response time ensure smooth video pictures.
Teknik özellikler
| Brightness Control | 1-100 Levels |
|---|---|
| Frame Frequency | 25HZ-120HZ |
| Grey Level | 1024 |
| Display Color | 1 Billion |
| Processing Depth | 10bit |
| Image Scaling | Support |
| Product Model | DS-D42C08-H |
| Chassis Height | 1U |
| Chassis Width | Full Width |
| Average Consumption | ≤31W |
| Number of power interfaces | 1 |
| Power interface specifications | 100～240 VAC, 50/60 Hz |
| Working Temperature | 0°C ~ 50°C |
| Storage Humidity | 10% ～ 90% |
| Working Humidity | 10% ～ 90% |
| Storage Temperature | -10°C ~ 50°C |
| Packaging Size (W × H × D) | 538mmx261mmx118mm |
| Net Weight | 2.4KG |
| Gross Weight | 4.13KG |
| Dimensions (W × H × D) | 440 mm × 200 mm × 44.5 mm |
| Packing List | AC power cord*1, 1U chassis accessory kit*1, Manual*1, Foot pad assembly*1 |
| Product Type | LED Controller |
| Audio Input Interface(s) | 2 |
| Audio Input Interface Type | 1 HDMI inline + 1 line-in |
| Video Input Interface(s) | 2 |
| Video Input Interface Type | 1 HDMI1.4 + 1 DVI (optional) |
| Max. Input Resolution | 1080P |
| Video Input Resolution | Maximum supported resolution: 2048*1269@60Hz Minimum supported resolution: 320*180@60Hz Customizable resolution, total resolution not more than 260W@60 Limit width: 320~4096 Alignment: 4 alignment Ultimate height: 180~4096 Alignment: 1 alignment Support HDCP1.4 Does not support interlaced signal input |
| Video Input Processing Characteristics | Processing depth 8/10bit Sampling format: RGB:444 YUV:444 YUV:422 |
| Max. Output Resolution | 5.2 Million |
| Loading Capacity for Video Output to LED | Single mesh port with load 65W Width 480~7680;Alignment: 2 Alignment Height 270~4320;Alignment: 1 alignment |
| LED Loading Interfaces | 8 |
| LED Loading Interface Type | RJ45 |
| Number of video ring pass output interfaces | 1 |
| Video looping output interface type | HDMI1.4 |
| Video looping output resolution | 2048*1269@60Hz |
| Audio Output Interface(s) | 2 |
| Audio Output Interface Type | 1 HDMI loop out +1 LINE OUT 3.5mm audio out |
| Screen | Digital Tube |
| Key | ""+"": brightness increase "-": brightness decrease "Source": switch the signal source" |
| pilot lamp | PWR: Power indicator STAT:Status indicator ASYNC: Internal Android source status light SYNC: External source status light |
| Control network port | 2 RJ45, 10M/100M/1000M adaptive Ethernet ports Used to connect to external networks, can support multi-device network cascade management |
| 3D interface | 1 SYNC for 3D signal configuration, 3-Core S-terminal |
| IR input | 1 x 3.5mm cradle Support infrared remote control access |
| Serial Interface | 1, 1 debug serial port (RJ45) |
| Light perception | 1 light-sensitive aviation head |
| USB | 2 x USB 2.0 |
| On-off | Switch |
