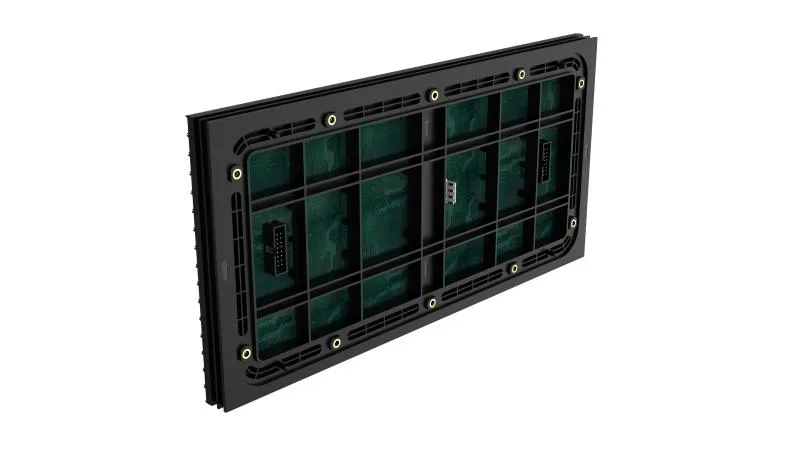

Hikvision DS-D43QA0CA-1PH

Markaya göre filtrele

Hikvision DS-D43QA0CA-1PH
Hikvision

Hikvision DS-D43QA0CA-1PH

Model kodu
DS-D43QA0CA-1PH
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports seamless image stitching in any direction, size and shape and displays stitched images uniformly and consistently without black lines. Uses the ultra-high refresh rate to display delicate and smooth video images. High brightness and high contrast. Support IP65

Teknik özellikler

Pixel Configuration SMD Triad LED
Pixel Pitch Category P10.0
Pixel Pitch 10 mm
Dimensions (W × H × D) 320 mm × 160 mm x 19 mm
Resolution 32 × 16
Pixel Density 10000 dots/m²
Maintenance Method Back maintenance
Signal Source Interface HUB75E
Module Flatness 0.2 mm
Waterproof Level IP65 (Front)
White Balance Brightness 4500cd/㎡
Color Temperature 2000～14000K adjustable
Viewing Angle Horizontal 140°, vertical 120°
Contrast Ratio ≥ 5000:1
Color Uniformity ≤ ± 0.003Cx，Cy
Brightness Uniformity ≥ 97％
Driving Method Constant current driving
Frame Frequency 60 Hz
Refresh Rate Up to 3840 Hz
Grey Level Up to 14 bit
Lamp Encapsulation 2727
Control System DS-D42C08-H DS-D42C16-H
Power Supply 110~220 VAC ± 15%
Max. Consumption ≤ 500 W/m² (4500nits)
Average Consumption ≤ 170 W/m² (4500nits)
Working Temperature -20 ℃ to 50 ℃ (-4 ℉ to 120 ℉)
Working Humidity 10%~80%RH
Storage Humidity 10%~90%RH
Storage Temperature -20 ℃ to 60 ℃ (-4 ℉ to 140 ℉)
Package Dimensions (W × H × D) 634 (W) mm × 410 (H) mm × 380 (D) mm (25 '' × 16 '' × 15 '')
Net Weight 0.56 kg
Weight 0.56 kg

Dokümanlar

Data Sheet - DS-D43QA0CA-1PH,outdoor,10.0mm,320*160mm,3840hz
