Hikvision DS-DT60P-02HDI12NO/U

Markaya göre filtrele

Hikvision DS-DT60P-02HDI12NO/U
Hikvision

Hikvision DS-DT60P-02HDI12NO/U

Model kodu
DS-DT60P-02HDI12NO/U
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

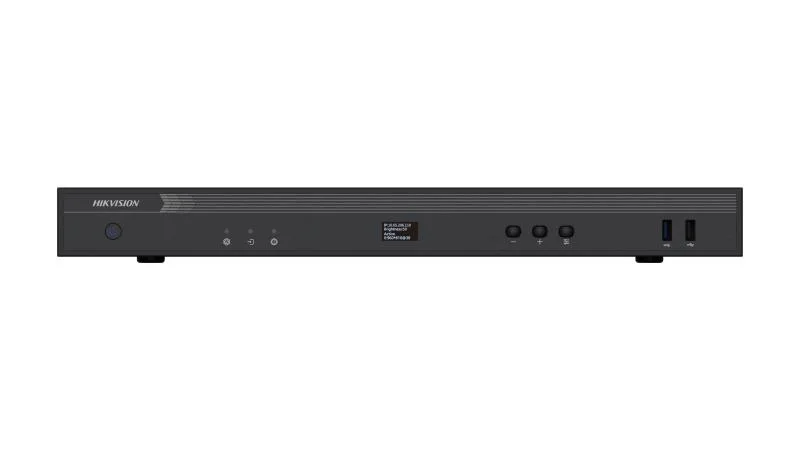

Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.. Adopts the 1 U rackmount chassis and industrial grade chassis system.. Provides buttons on the front panel to change brightness and other parameters.. Provides indicators on the front panel to indicate the power status, signal access status, and running status.. Supports 2 channels of video signal input. The DVI resolution is 1920 × 1200@60 Hz. The HDMI 2.0 resolution is 4096 × 2160@60 Hz.. Supports the RGB and YUV 444 image loading output without image quality loss.. Supports 12 channels of loading output with the maximum loading capacity of 7.8 MP. The maximum width is 8192 pixels and maximum height is 8192 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.. Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.. Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.. Supports opening the signal source windows on the display and roaming window.. Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.. Supports the video wall configuration and window visualization.. Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.. Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.. Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.. Supports custom EDID settings.. Supports dual backup of the power supplies and dual backup of LED controller network ports.. Supports custom cable alignment without rectangular frame limit.. Supports the operation through the client or the LED controller web page.. Supports configuring the background.. Supports configuring the startup logo.. Supports configuring the screen dehumidification.. Supports using the remote control to control the screen to display the remote UI menu.. Supports adjusting the brightness, contrast, hue, and other parameters of the output image.. Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display. Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.. Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.. Supports eye protection mode to protect the vision of the viewer.. Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.. Supports viewing the loading relationship between the device and LED screen.. Supports viewing abnormal screen positioning during running.. Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.. Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection. Supports connecting to the central control device and IoT device through RS-485 port.. Supports docking device command and managing device by using the control network port and the protocols such as OTAP.. Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.. Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.. Supports HDMI 2.0 and DVI loop output. The maximum HDMI loop output is 4096 × 2160@60 Hz and the maximum DVI loop output is 1920 × 1200@60 Hz.. Supports frame rate self-adaption ranging from 25 Hz to 120 Hz for image collection.. Supports WonderCast application via PC, mobile devices, screen casting devices, etc.. Supports program playback via USB flash drive.

Teknik özellikler

Brightness Control 1 to 100 tunable (level-by-level white balance)
Input Frame Rate 25 Hz to 120 Hz
Grey Level 256
Display Color 16 MP
Processing Depth 8 bit
Image Scaling Supported
Product Model DS-DT60P-02HDI12NO/U
Chassis Height 1 U
Chassis Width 440 mm (17.32 inch)
Light Sensor Port Supported
Average Consumption ≤42 W
Power Interface Quantity 1
Power Interface 100 to 240 VAC, 50/60 Hz
USB Interface 1 channel of USB 2.0 + 1 channel of USB 3.0
Serial Interface 1 × debugging serial port (4-pin connector) + 1 × RS-485 central control serial port (green Phoenix contact) + 1 × RS-485 serial port for light perception (green Phoenix contact) Baud rate: 115200, data bit: 8
Control Network Port 2 × 10/100/1000 Mbps auto-sensing Ethernet port (RJ-45),Connects to the external network.
Open Windows 3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window
Layers per Device 7
Scenes 10
Background Images 1
Background Resolution Min.: 640 × 480, Max.: 1920 × 1200
Background Format JPG/JPEG
Subtitles 1
Subtitle Width 32760
Subtitle Font Supports Xiaomi font and custom font
Screen 128 × 64, OLED screen
Working Temperature -10°C to 50°C
Storage Humidity 10% to 90%
Working Humidity 10% to 90%
Storage Temperature -10°C to 50°C
Packaging Size (W × H × D) 589 mm × 103 mm × 410 mm (23.19 inch × 4.06 inch × 16.14 inch)
Net Weight 3.369 kg (7.427 lb)
Gross Weight 4.560 kg (10.053 lb)
Dimensions (W × H × D) 440 mm × 44.5 mm × 320.8 mm (17.32 inch × 1.75 inch × 12.63 inch)
Packing List 1 × AC power cord, 1 × mounting bracket, 2 × RS-485 green Phoenix contact for central control device, 1 × regulatory compliance and safety information manual, 3 × bar antenna, 1× RF remote control
Product Type LED controller
Audio Input Interfaces 2
Audio Input Interface Type 1 channel of HDMI 2.0 + 1 channel of embedded Android
Video Input Interfaces 3
Video Input Interface Type 1 HDMI2.0 + 1 DVI + 1 embedded Android
Max. Video Input Resolution HDMI 2.0: 4K; DVI: 1080p
Video Input Resolution DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60 Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.,Embedded Android: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 2.6 MP@60 Hz Max. width: 144 to 4096, alignment: 2 alignment Max. height: 144 to 4096, alignment: 1 alignment Supports HDCP 1.4. Interlacing signal input is not supported.
Video Input Processing Feature Processing depth: 8 bit Sampling format: RGB: 444 YUV: 444 YUV: 422 YUV: 420
Built-in Android Resolution 1080p
Max. Video Output Resolution Mini loading mode: 7800000 Standard loading mode: 13000000
Loading Capacity for Video Output to LED Mini loading mode: Single port load 650000, Width 144 - 8192, Alignment: multiple of 2, Height 64 - 8192, Alignment: multiple of 1, Max. load does not exceed 7800000; Standard loading mode: Single port load 2925000, Width 144 - 8192, Alignment: multiple of 2; Height 64 - 8192, Alignment: multiple of 1; Max. load does not exceed 13000000
LED Loading Interfaces 12
LED Loading Interface Type RJ-45
Video Loop Output Interface 1 channel of HDMI 2.0 + 1 channel of DVI
Video Loop Output Resolution DVI port: Max. resolution: 1920 × 1200@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution, total resolution not exceeding 2.6 MP@60 Hz. Max. width: 144 to 4096, width must be a multiple of 2. Max. height: 144 to 4096, height must be a multiple of 1. Supports HDCP 1.4,HDMI 2.0 port: Max. resolution: 4096 × 2160@60 Hz Min. resolution: 320 × 180@60 Hz Supports custom resolution. Total resolution should be no more than 8.84 MP@60Hz Max. width: 144 to 8192, alignment: 2 alignment Max. height: 144 to 8192, alignment: 1 alignment Supports HDCP 2.2.
Video Live View Output Interfaces 1
Type of Video Live View Output Interface HDMI 1.4
Video Live View Output Resolution 720p@60 Hz
Loading Mode Mini loading mode: Single port max load 650000 Standard loading mode: Single port max load 2925000
Audio Output Interfaces 1
Audio Output Interface 3.5 mm audio output
System Android 12
Memory Capacity 4 GB
Storage Capacity 32 GB
CPU 4-core 64-bit ARM cortex-A55 2.0 GHz
Wi-Fi STA 2.4 GHz, AP 2.4&5 GHz
Bluetooth Bluetooth 4.0
Antenna 3 × bar antenna
Remote Control Supports IR remote control and RF remote control
Button +: increase brightness -: decrease brightness Source: change signal source
Power Switch Button switch
Program Material Type Video, image, webpage, document, clock, text, and background music
Video Playback Performance 1-channel 4096 × 2160@60 Hz, 4-channel 1920 × 1080@60 Hz, 6-channel 1280 × 720@60 Hz
WonderCast Client Supported
Indicator Active: The device is running. Source: The signal source is accessed. Error: The device operation exception occurs.
Power Switch On: The device is started and running. Off: The device is not powered on or is not started.
IR Input 1 × 3.5 mm connector Supports the access of IR remote control.
