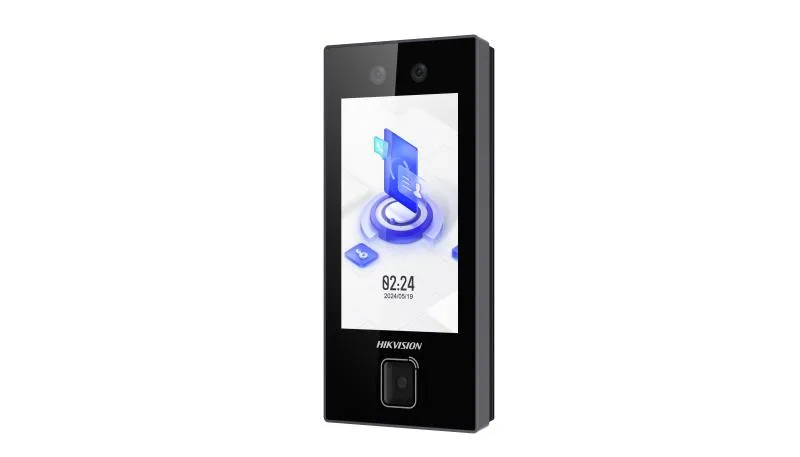

Hikvision DS-K1T344MBWX-QRE1

Markaya göre filtrele

Hikvision DS-K1T344MBWX-QRE1
Hikvision

Hikvision DS-K1T344MBWX-QRE1

Model kodu
DS-K1T344MBWX-QRE1
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Supports 4.5-inch LCD touch screen, 2 Mega pixel wide-angle lens, and built-in M1 card reading module. Max.3000 faces capacity, and Max.3000 cards. Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%. Supports face, card, PIN, and QR code authentication. Two-way audio with client software, indoor station, and main station.. Supports mobile web and PC web for configuration. Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)

Teknik özellikler

Operating system Linux
Screen size 4.5-inch
Resolution 480 × 854
Type LCD
Operation method Touchable
Lens × 2
Video standard PAL (Default) and NTSC
Bluetooth Support
Wired network 10/100 Mbps self adaptive
Wi-Fi Support
Alarm input 2
Alarm output 1
PoE IEEE802.3at, standard PoE
Network interface 1
RS-485 1
Wiegand 1, supports Wiegand input, single direction
Lock control 1
Exit button 1
Door contact input 1
TAMPER 1
USB 1
User capacity 3000
Card capacity 3000
Face capacity 3000
Event capacity 150000
Card type M1 card;M1 card content
Card reading frequency 13.56 MHz
Face recognition duration ＜ 0.2 s
Face recognition accuracy rate ＞99%
Face recognition distance 0.3 to 1.5 m
Button No physical call button
Power supply 12 VDC, 1 A, standard PoE
Working temperature -30 °C to 60 °C (-22 °F to 140 °F)
Working humidity 10 to 90% (No condensing)
Dimensions 165.2 mm × 75.7 mm × 25 mm (6.5" × 2.98" × 0.98")
Installation Wall mounting
Protective level IP65
Language English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Turkish, French, Traditional Chinese, Kazakh, Uzbek
Weight Gross weight: 0.60 kg (1.33 lbs) Net weight: 0.30 kg (0.66 lbs)
QR code recognition Support scan QR code via QR code module or camera
Face anti-spoofing Support
Two-way audio Support
Audio prompt Support

Dokümanlar

Data Sheet - Value Series Face Access Terminal
