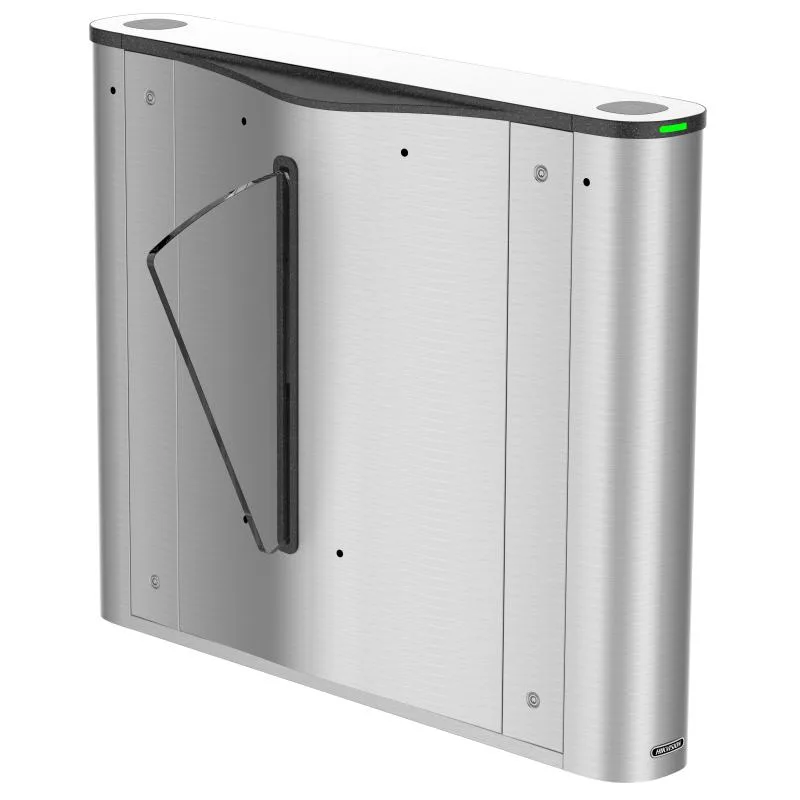

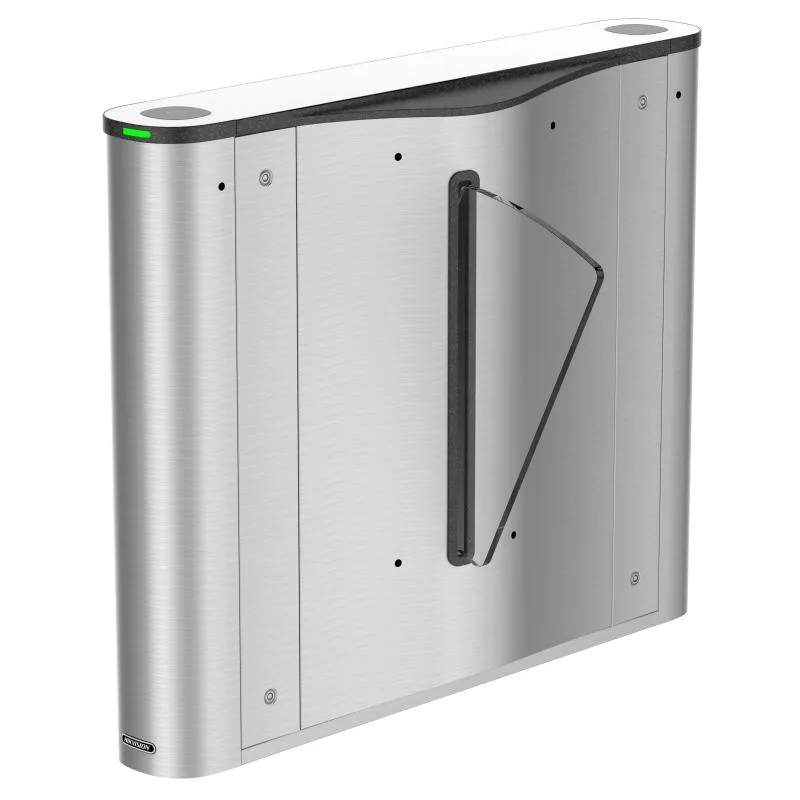

Hikvision DS-K3Y411X

Markaya göre filtrele

Hikvision DS-K3Y411X
Hikvision

Hikvision DS-K3Y411X

Model kodu
DS-K3Y411X
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Permissions validation and anti-tailgating.. Remaining open/closed mode selectable.. The barrier will be open or stop working when people are nipped.. Self-detection, Self-diagnostics, and automatic alarm .. Audible and visual alarm will be triggered when detecting intrusion, tailgating reverse passing, and climbing over barrier.. TCP/IP network communication: The communication data is specially encrypted to relieve the concern of privacy leak.. LED indicates the entrance/exit and passing status.. Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.

Teknik özellikler

MCBF ＞3 million times
Motor Brush motor
Network interface 1
RS-485 4
RS-232 4
Lock output 2
IO input 2
IO output 2
Card capacity 60,000
Event capacity 180,000
Throughput 20 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
Power supply method 100 to 240 VAC, 50 to 60 Hz
IR light detectors 6 pairs
Lane width 600 mm (23.62")
Working temperature -20 °C to 65 °C (-4 °F to 149 °F)
Barrier material Acrylic
Working humidity 0% to 95% (No condensing)
Dimensions With packaging: 1360 mm × 440 mm × 1200 mm (53.54" × 17.32" × 47.24") Without packaging: 1207 mm × 315 mm × 990 mm (47.52" × 12.40" × 38.98")
Pedestal material SUS304 stainless steel
Application environment Indoor and outdoor
Weight Net: approximately 50 kg (left)/64 kg (middle)/52 kg (right) (110.3 lb/141.1 lb/114.7 lb) Rough: approximately 80 kg (left)/94 kg (middle)/83 kg (right) (176.4 lb/207.3 lb/183.0 lb)
Approval CE/FCC/CB/RoHS/REACH/WEEE
Module selection NO
Authentication mode Card;Face
Card type EM;M1
Wall distance 10 mm
Lane width 600
Recommended width 600
Pedestal length 1200 mm
Pedestal width 315 mm
Barrier material Acrylic
Base YES
Base model DS-K3Y411X-BASE
Authentication exclusionary null
Product type Flap barrier
Remote controller type 433 Mhz;868 Mhz

Bu ürünü satan firmalar

1 firma
TESAN İLETİŞİM A.Ş
Bahçelievler, İstanbul
