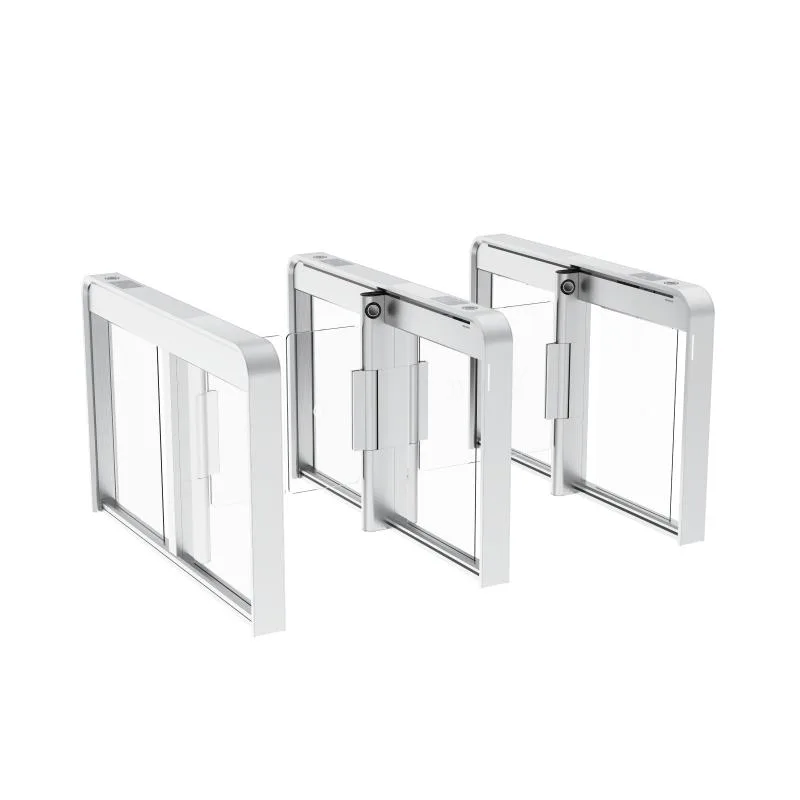

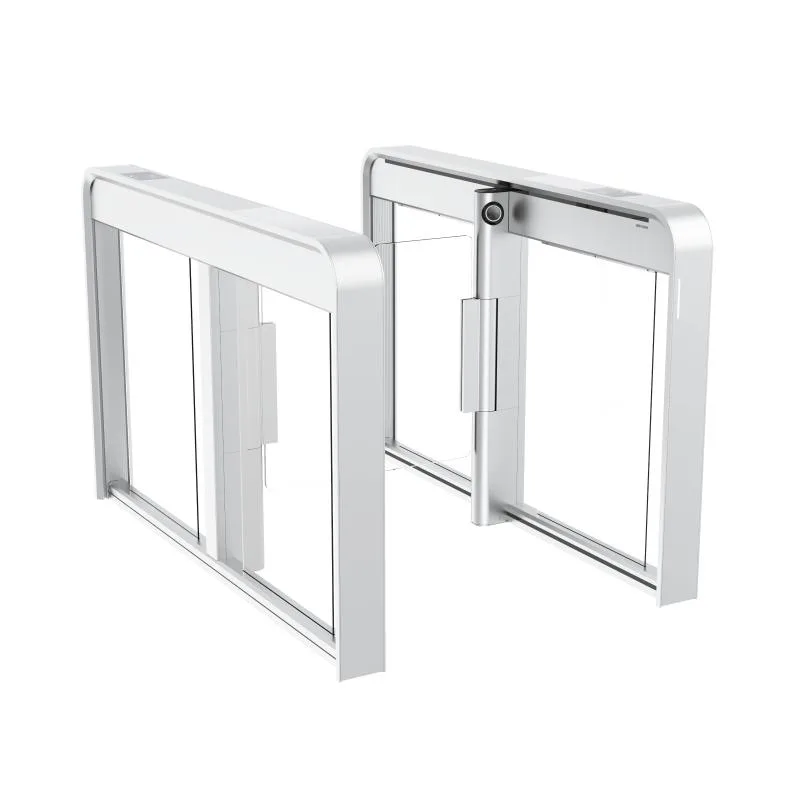

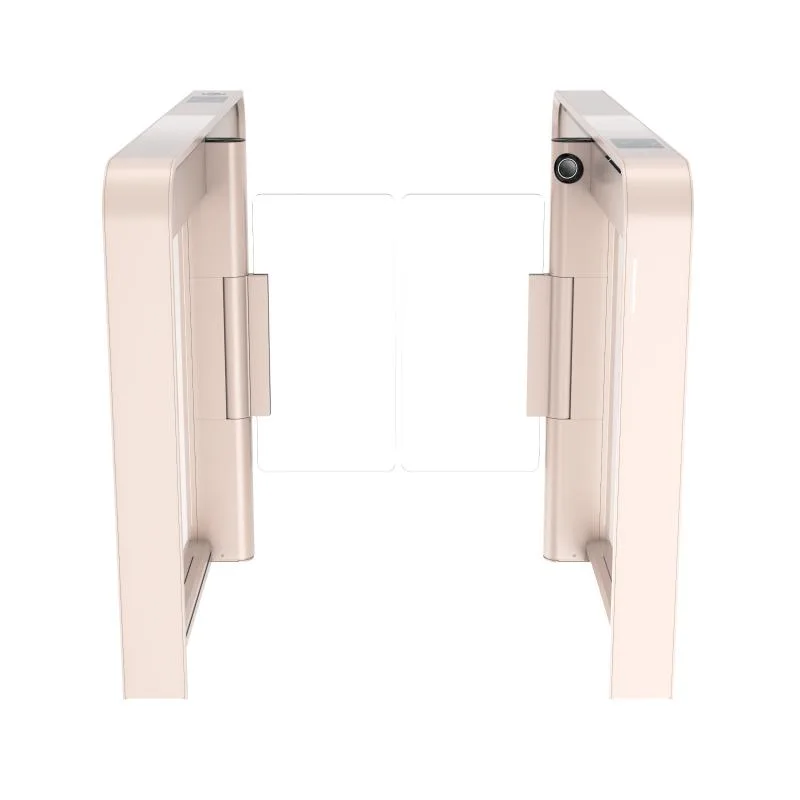

Hikvision DS-K6B630TX

Markaya göre filtrele

Hikvision DS-K6B630TX
Hikvision

Hikvision DS-K6B630TX

Model kodu
DS-K6B630TX
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Aluminum alloy material with optional color (default rose gold).. 6.95-inch display screen and built-in face recognition module.. Supports built-in palm print & palm vein module and QR recognition module (optional).. Support PC & Mobile web configuration and self-diagnosis for maintenance.. AP mode function for mobile phones (Android) to access more easily by a simple touch via NFC tag.. Fire linkage: When the fire signal is triggered, the barrier will be open automatically for emergency evacuation.. 12pcs of dToF sensors.

Teknik özellikler

Motor Servo motor
MCBF ≥ 11 million times
Brake Support
Door open duration 5 to 60 sec
dToF sensor × 12
Screen size 6.95-inch
Operation method Display screen
Type IPS screen
Resolution 600 × 1024
Lens Dual lens
Video compression standard H.264
Resolution 2 MP
FOV Horizontal: 59° Vertical: 108°
WDR Support
Video standard PAL by default, support NTSC
Focal length 2.8mm
Aperture F1.6
Audio compression standard G.711U
Audio compression bitrate 16 Kbps
Audio output Support
Volume adjustment Support
Power output 5.5W
Wired network Support,10M/100M
Wi-Fi For AP mode only
Network interface 1
Exit button Main: 1 Sub: 1
Alarm output 4
Fire alarm input 1
Case input 2
Access controller Support
Supercapacitor Support
Network switch Not supplied
Face capacity 100,000
Card capacity 500,000
Event capacity 1000,000
Palm print and palm vein capacity 10,000
Face recognition distance 0 m to 2 m
Face recognition accuracy rate ＞99%
Face recognition duration ＜200 ms
Card EM card or M1 card or Desfire card (actual corresponding card type refer to product model names)
Card reading frequency 13.56 MHz or 125 KHz
Card reading distance 3cm
Card reading duration ＜1s
Palm print and palm vein Support (optional)
Configuration via PC Web Support
Configuration via mobile Web Support
Hik-Connect Support
Multi-factor authentication Support
Face anti-spoofing Support
Face mask recognition Support
Built-in face recognition Support
Communication protocol ISAPI
Lane width 550 mm to 1100 mm (21.7" to 43.3")
Barrier material 10 mm acrylic glass
Pedestal material Aluminium alloy
Indicator Lane status indicator, barrier light
Power consumption Standby: 70 W Working: 180 W Peak: 280 W
Working temperature -10 °C to 50 °C (14 °F to 122 °F)
Working humidity 10% to 95% (No condensing)
Protective level IP40
Dimensions Without package: 1550 mm × 120 mm × 1002 mm (61.02" × 4.72" × 39.45") With package: 1760 mm × 500 mm × 1225 mm (69.30" × 19.69" × 48.23")
Weight Net: Left: 34.19 kg (75.375 lb) Middle: 42.46 kg (93.6 lb) Right: 34.76 kg(76.63 lb) Gross: Left: 62.91 kg (138.7 lb) Middle: 71.52 kg (157.67 lb) Right: 63.58 kg (140.17 lb)
Power supply method 100 to 240 VAC~, 50/60 Hz, 1.6A
Color Rose gold by default, support Aluminum Natural / Champagne Gold / Space Grey / Obsidian Black by customization.
Language English, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
Interconnecting cable length 5.5m
Lane width 650;750;900;1100
Pedestal length 1550 mm
Module selection YES
Pedestal width 120 mm
Wall distance 20 mm
Base YES
Barrier material Acrylic glass
Application environment indoor
Authentication mode Card;Face;QR code;Palm & Vein
Card type EM;Desfire
Recommended width 650 mm
Base model DS-KSM02/B630
Product type Swing barrier
Remote controller type 433Mhz;868Mhz
Movement Protrusion Width 66 mm
Convert Face NO
Door Height Default(0.85m)
Door wing gap Default:50mm
Integrated Auth Card;Face
