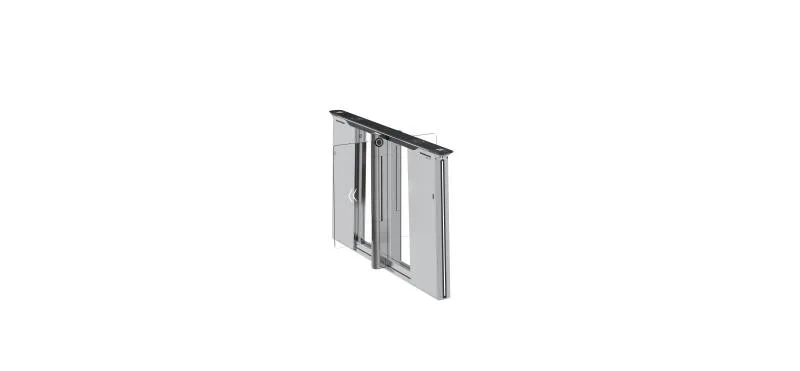

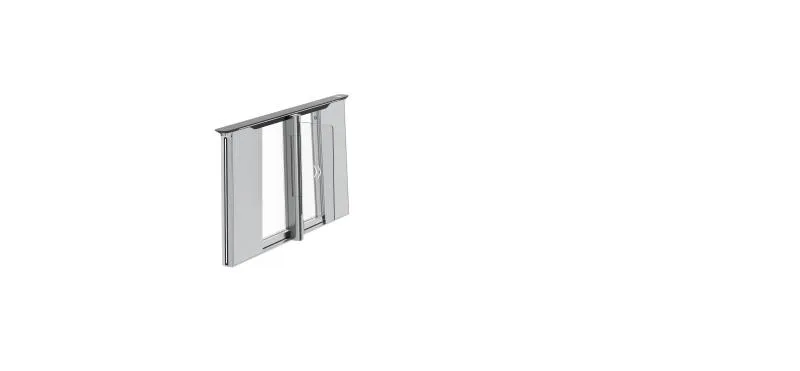

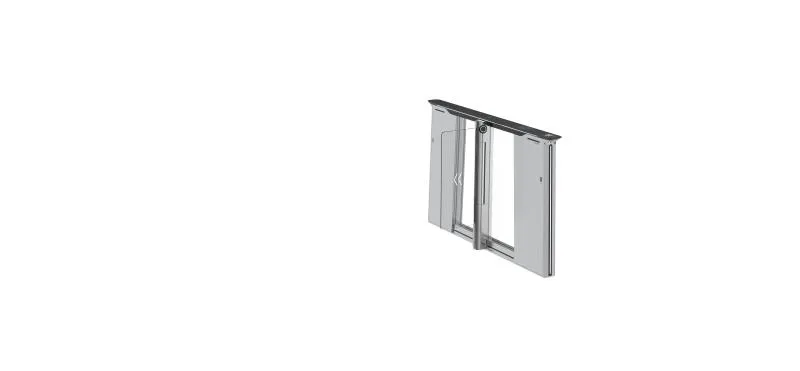

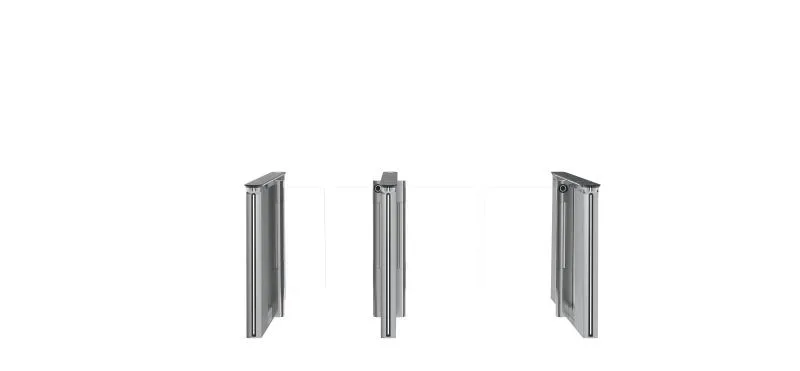

Hikvision DS-K6B961TX

Markaya göre filtrele

Hikvision DS-K6B961TX
Hikvision

Hikvision DS-K6B961TX

Model kodu
DS-K6B961TX
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

6.95-inch display screen and built-in face recognition module.. Supports PC & Mobile web configuration and self-diagnosis for maintenance.. AP mode for mobile phones (Android) to access more easily by a simple touch via NFC tag.. Fire linkage: When the fire signal is triggered, the barrier will be open automatically for emergency evacuation.. Direct-drive servo motor provide a longer lifespan and more silence experience.. Colorful light strips bring better interaction and passing experience.

Teknik özellikler

Motor Direct-Drive servo motor
MCBF ≥ 30 million times
Brake Support
Door open duration 5 to 60 sec
dToF sensor × 24
Screen size 6.95-inch
Operation method Display screen
Type IPS screen
Resolution 600 × 1024
Lens Dual lens
Video compression standard H.264
Resolution 2 MP
FOV Horizontal: 59° Vertical: 108°
WDR Support
Video standard PAL by default, support NTSC
Focal length 2.8mm
Aperture F1.6
Audio compression standard G.711U
Audio compression bitrate 16 Kbps
Audio output Support
Volume adjustment Support
Power output 5.5W
Wired network Support,10M/100M
Wi-Fi For AP mode only
Network interface 2
Lock control NA
Exit button Main: 1 Sub: 1
Alarm output 4
TAMPER 2
RS-485 Main: 1 Sub: 1
RS-232 Main: 1 Sub: 1
Wiegand Main: 1 Sub: 1
USB Main: 1 Sub: 1
Fire alarm input 1
Case input 2
Access controller Support
Supercapacitor Support
Network switch Not supplied
Face capacity 100,000
Card capacity 500,000
Event capacity 1000,000
Face recognition distance 0 m to 2 m
Face recognition accuracy rate ＞99%
Face recognition duration ＜200 ms
Card EM card or M1 card or Desfire card (actual corresponding card type refer to product model name)
Card reading frequency 13.56 MHz or 125 KHz
Card reading distance 3cm
Card reading duration ＜1s
Configuration via PC Web Support
Configuration via mobile Web Support
Hik-Connect Support
Multi-factor authentication Support
Face anti-spoofing Support
Face mask recognition Support
Built-in face recognition Support
Communication protocol ISAPI
Lane width 550 mm to 1100 mm (21.7" to 43.3")
Barrier material 10 mm acrylic glass
Pedestal material SUS304 stainless steel 2.0 mm
Indicator Lane status indicator, authentication indicator and barrier light
Power consumption Standby: 100 W Working: 220 W Peak: 380 W
Working temperature -20 °C to 55 °C (4 °F to 131 °F)
Working humidity 10% to 95% (No condensing)
Protective level IPX4
Dimensions Without package: 1651 mm × 117 mm × 1020 mm (65.0" × 4.6" × 40.2") With package: 1905 mm × 550 mm × 1330 mm (75.0" × 27.1" × 52.4")
Weight Net: Left: 104 kg (229.3 lb) Middle: 133 kg (293.2 lb) Right: 104 kg(229.3 lb) Gross: Left: 162 kg (357.2 lb) Middle: 191 kg (421.1 lb) Right: 162 kg (357.2 lb)
Power supply method Middle:100-120V~/200-240V~,50Hz/60Hz,1.6A; Side: 100-240V~,50Hz/60Hz,0.8A
Language English, Japanese, Thai, Indonesian, Russian, Spain (European), Spain (Latin America), Portugal (Brazil), Arabic, Kazakh, Uzbek, Ukraine
Interconnecting cable length 5.5m
Lane width 650;750;900;1100
Pedestal length 1651.3 mm
Module selection YES
Pedestal width 116.8 mm
Wall distance 20 mm
Base YES
Barrier material Acrylic glass
Application environment indoor
Authentication mode Card;Face;QR code
Card type EM;Desfire
Recommended width 650 mm
Base model DS-KSM01/B961
Product type Swing barrier
Remote controller type 433Mhz;868Mhz
Movement Protrusion Width 62.5 mm
Convert Face NO
Door Height Default(0.94m)
Door wing gap Default:50mm
Integrated Auth Card;Face;QR code
