Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

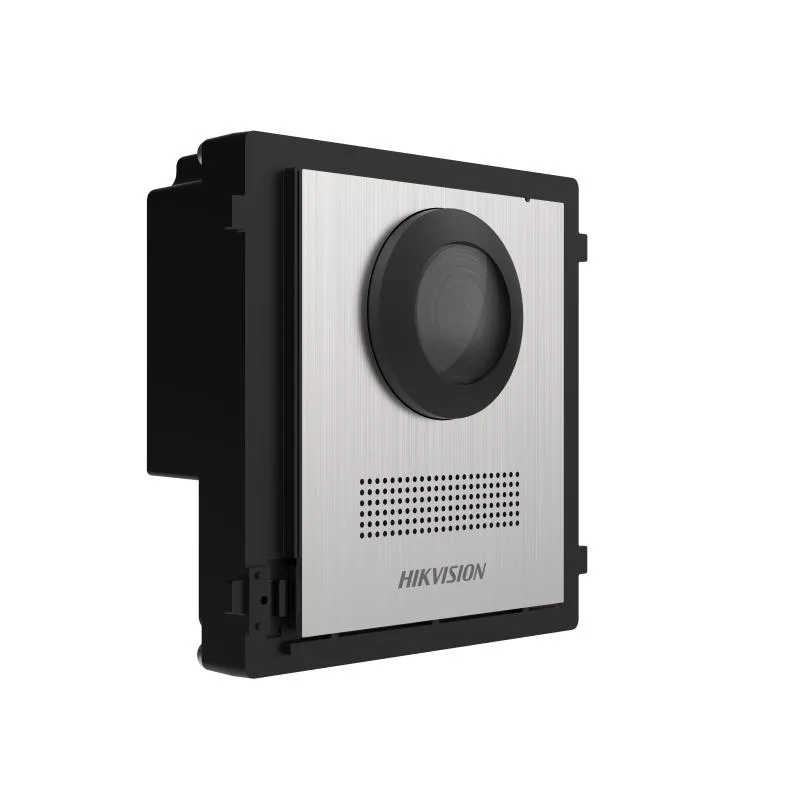

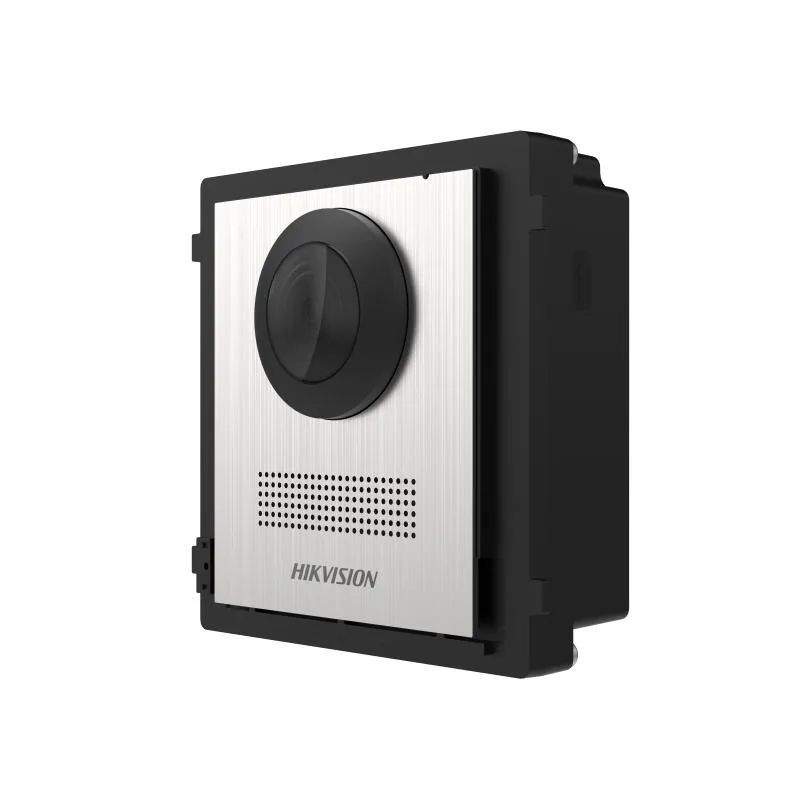

Main unit of modular door station. 2 MP fisheye camera with IR supplement. Two-lock control. Standard PoE power supply. IP65 protection level. Convenient configuration via Web remotely. Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply. Stainless Steel high quality material
Teknik özellikler
| Operating system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Fingerprint capacity | / |
| User capacity | 2000 |
| Card capacity | 6000 |
| Face capacity | NA |
| Linked indoor station capacity | 500 |
| Event capacity | / |
| Sub door station capacity | 16 |
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | NA |
| Bluetooth | NA |
| 3G/4G | NA |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | 1 RJ45 |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 1 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 (2 relay) |
| USB | NA |
| Power interface | 12 VDC Power Input (max to 12 V, 500 mA) |
| Two-wire IP interface | NA |
| Power supply | 12 VDC/PoE ( IEEE 802.3af) |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Button | 0 |
| Protective level | IP65 |
| Installation | Surface mounting & flush mounting |
| Dimensions(L × W × H) | 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") |
| Language | English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak |
| Indicator | 0 |
| Weight | Without package: 0.410 kg With Package: 0.581 kg |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
