Hikvision DS-KD8003-IME1(B)/S
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

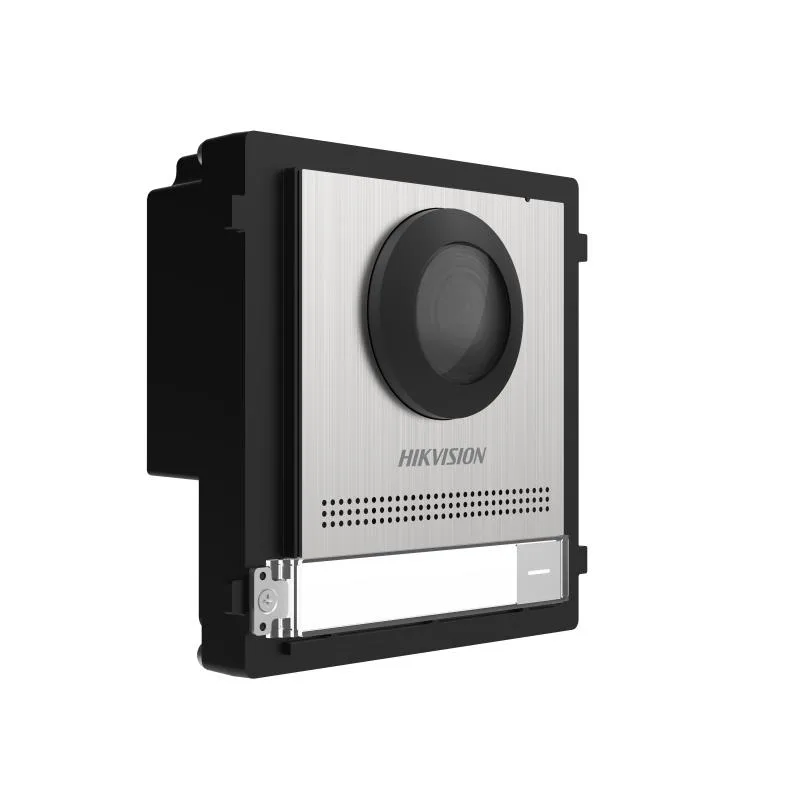

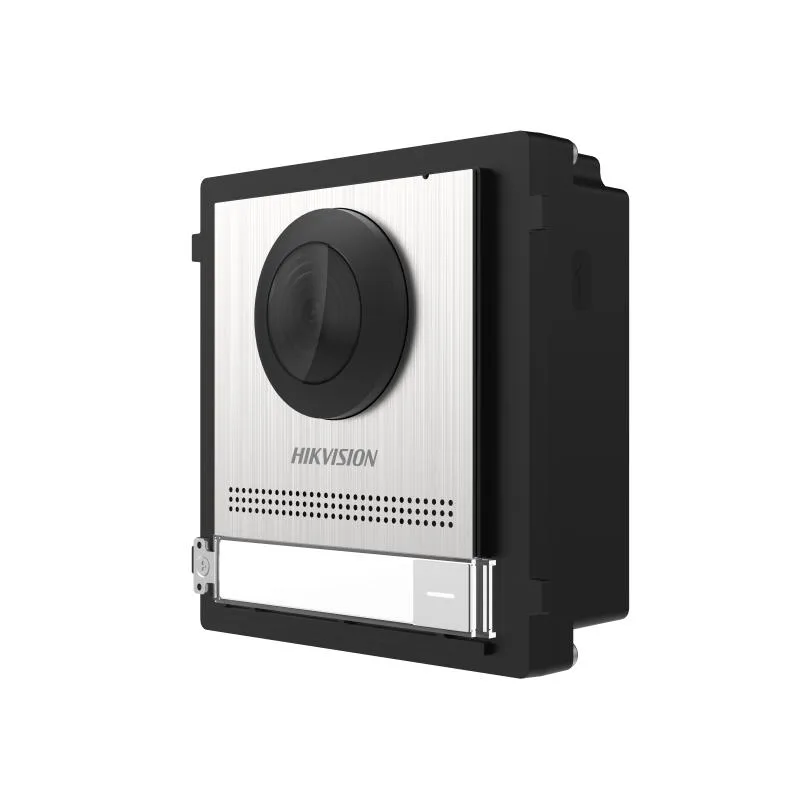

Main unit of modular door station. 2 MP fisheye camera with IR supplement. One call physical button for easier calls. Two-lock control. Standard PoE power supply. IP65 protection level. Convenient configuration via Web remotely. Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply. Stainless Steel high quality material
Teknik özellikler
| Operation system | Linux |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
| Screen size | / |
| Operation method | / |
| Type | / |
| Resolution | / |
| Lens | 2 MP HD camera |
| Resolution | 2 MP |
| FOV | Horizontal: 146°, Vertical: 82° |
| Wide dynamic range (WDR) | Support |
| Supplement light | Low illumination, IR supplement lights |
| Video compression standard | H.264; H.265; MJPEG |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 2000 |
| Face capacity | / |
| Fingerprint capacity | / |
| Card capacity | 6000 |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP, IPV6, ONVIF |
| Wi-Fi | / |
| Bluetooth | / |
| 3G/4G | NA |
| Alarm input | 4 (2 exit buttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| USB | / |
| Wiegand | / |
| TF card | / |
| Alarm output | / |
| Lock control | 2 relays, Max. 30 VDC, 2 A |
| Door contact input | 2 |
| Two-Wire IP interface | / |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | / |
| Weight | Net weight: 410 g Gross weight: 581 g |
| Protective level | IP65 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Battery | / |
| Power supply | 12 VDC, 500 mA, IEEE 802.3af, PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
