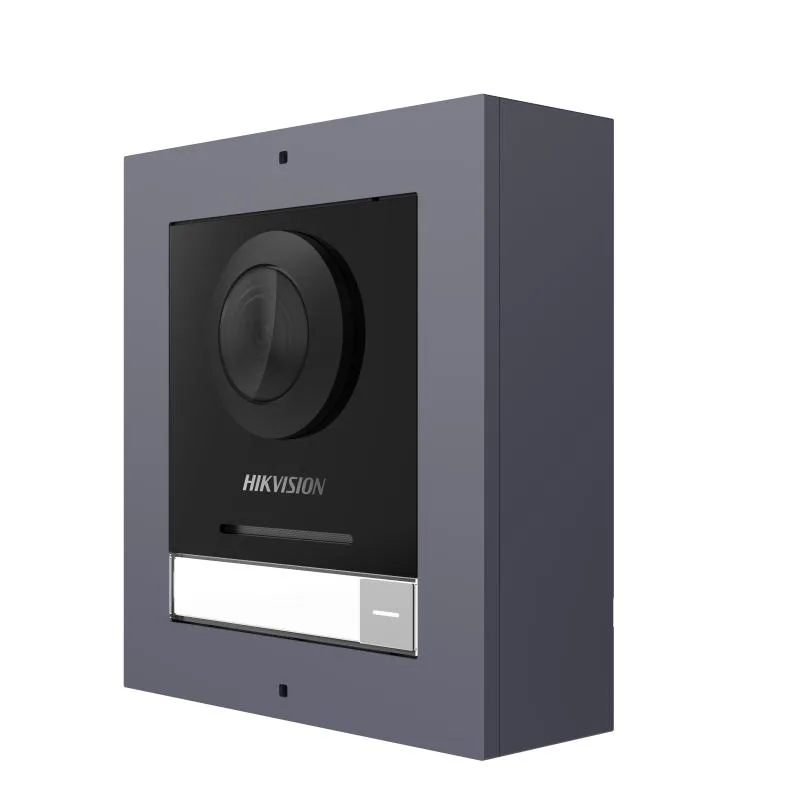

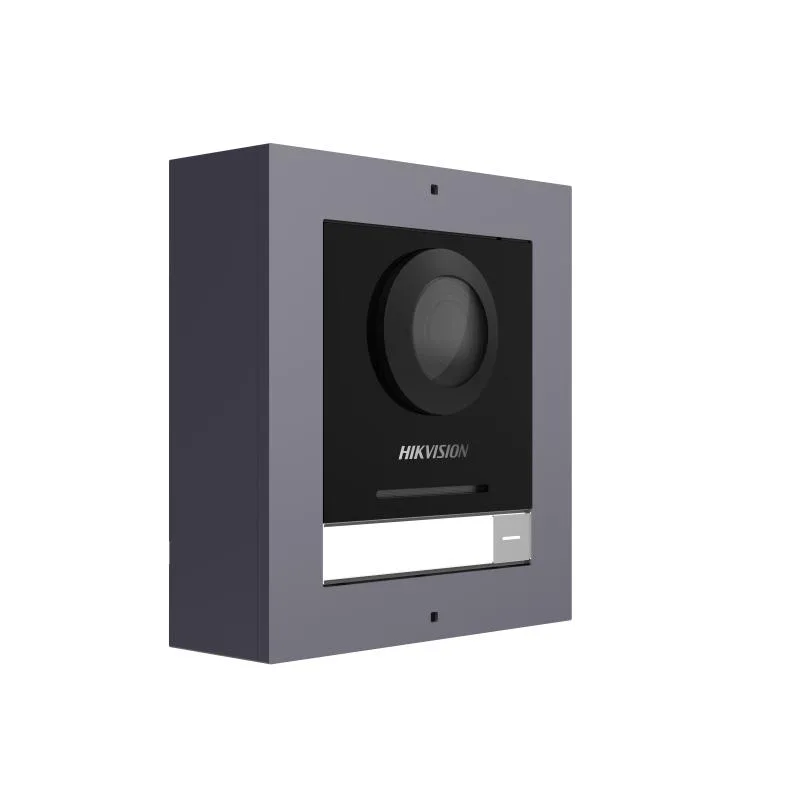

Hikvision DS-KD8003-IME1(B)/Surface

Markaya göre filtrele

Hikvision DS-KD8003-IME1(B)/Surface
Hikvision

Hikvision DS-KD8003-IME1(B)/Surface

Model kodu
DS-KD8003-IME1(B)/Surface
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Surface mounting main unit of modular door station. 2 MP fisheye Camera with IR Supplement. One call Physical Button For easier calls. Two-lock control. Standard PoE power supply. IP65 protection level. Convenient configuration via Web remotely. Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply

Teknik özellikler

Operating system Embedded Linux operation system
ROM 32 MB
RAM 256 MB
CPU Embedded Processor
Screen size NA
Operation method NA
Type NA
Resolution NA
Supplement light Low illumination, IR supplement lights
Video standard H.264
Lens 1
FOV Horizontal: 146°, Vertical: 82°
WDR Support
Resolution 2 MP
Audio input Built-in omnidirectional microphone
Audio compression standard G.711 U, G.711 A
Audio output Built-in loudspeaker
Audio compression bitrate 64 Kbps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Fingerprint capacity /
User capacity 2000
Card capacity 6000
Face capacity NA
Linked indoor station capacity 500
Event capacity /
Sub door station capacity 16
Communication protocol TCP/IP, RTSP
Wired network 10/100 Mbps self-adaptive Ethernet
Wi-Fi NA
Bluetooth NA
3G/4G NA
Alarm input 4 (2 exit butttons and 2 door contacts by default)
Network interface 1 RJ45
TAMPER 1
Exit button 2 (2 for lock control)
Door contact input 2
RS-485 1 (1 for Hikvision's sub module communication)
Wiegand NA
TF card NA
Alarm output NA
Lock control 2 (2 relay, max to 30 V, 2 A)
USB NA
Power interface 12 VDC power output (max to 12 V, 500 mA)
Two-wire IP interface NA
Power supply 12 VDC/PoE ( IEEE 802.3af)
Working temperature -40° C to 60° C (-40° F to 140° F)
Working humidity 10% to 95%
Button 1
Protective level IP65
Installation Surface mounting
Dimensions(L × W × H) Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") Cover:117 × 107 × 4 mm (4.61" × 4.21" ×0.16") Installation Frame:117 × 107 × 32.7mm (4.61" × 4.21" ×1.29")
Language English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak
Indicator 0
Weight Without package: 0.600 kg With Package: 0.865 kg
Battery /
Application environment Outdoor
Power consumption ≤ 5 W

Dokümanlar

Data Sheet - KD8 Series Pro Modular Door Station How To - KD8 Series Pro Modular Door Station
