Hikvision DS-KH6320-WTDE1 - Hibrit kayıt cihazı

Markaya göre filtrele

Hikvision DS-KH6320-WTDE1 - Hibrit kayıt cihazı
Hikvision

Hikvision DS-KH6320-WTDE1 - Hibrit kayıt cihazı

Model kodu
DS-KH6320-WTDE1
Sistem
Kamera sistemi
Kategori
Hibrit kayıt cihazı

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

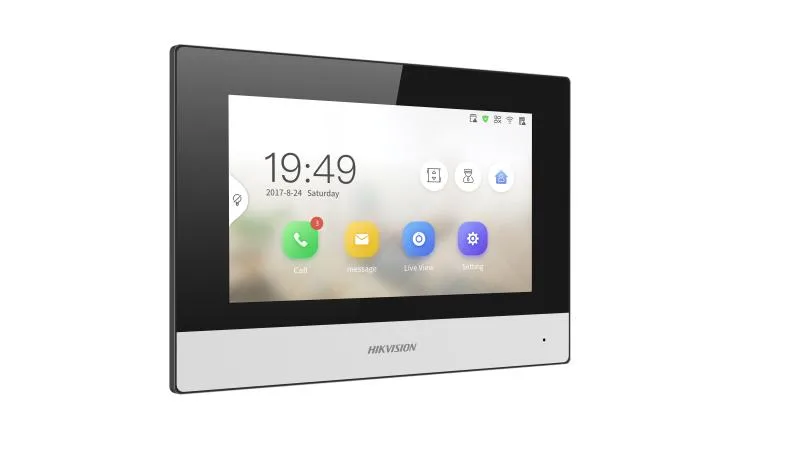

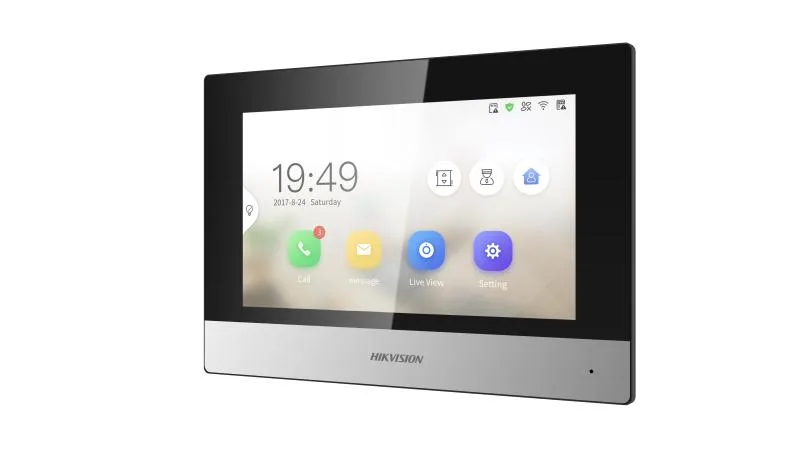

7-inch TFT touch screen with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control. Receive calls, open the door and live view remotely. Easy to use without PC. Easy wizard for quick set up. Configure the whole system on one touch screen. Live view of the door station and cameras in public areas. Support voice messages when no response from the indoor station. Receive alarms by linkage with a alarm system and notify the center to handle in time. Elevator access control

Teknik özellikler

Operation system Linux
ROM 32 MB
RAM 128 MB
Processor Embeded high performance processor
Screen size 7-inch
Operation method Capacitive touch screen
Type Colorful TFT
Resolution 1024 × 600
Lens /
Resolution /
FOV /
Wide dynamic range (WDR) /
Focal length /
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711 U、G.711 A、G.722.1
Audio output 1 built-in loudspeaker
Audio compression bitrate 64 Kbps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Message capacity 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events
Notice capacity 200
Linked network camera capacity 16
Linked indoor extensions capacity 16
Linked doorphone capacity 2 analog doorphones, 15 network doorphones
Network protocol TCP/IP, SIP, RTSP
Wi-Fi 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
Bluetooth /
3G/4G /
Zigbee /
Alarm input 2
Network interface 1 RJ-45 10/100 Mbps self-adaptive
TAMPER /
RS-485 1 RS-485 (Half duplex)
USB /
TF card Support TF card, up to 128 G
Alarm output 2
Lock control 2 relays, Max. 30 VDC 0.3 A
Four-Wire interface 2
Button /
Installation Surface mounting
Indicator /
Weight Net weight: 340 g (0.75 lb) Gross weight: 709 g (1.56 lb)
Protective level /
Working temperature -10 °C to 55 °C (14 °F to 122 °F)
Working humidity 10% to 90% (no-condensing)
Dimension (W × H × D) 200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9")
Battery /
Power supply 12 VDC, IEEE802.3af, standard PoE
Application environment Indoor
Power consumption ≤ 5 W
Language English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese

Dokümanlar

Data Sheet - KH6 Series IP-Based Indoor Station Quick Start Guide - KH6 Series IP-Based Indoor Station Operation Manual - KH6 Series IP-Based Indoor Station Configuration Manual - KH6 Series IP-Based Indoor Station R0 Indoor Station Firmware V2.2.124_build260814 Release Note - KH6 Series IP-Based Indoor Station
