Hikvision DS-KH6320Y-WTPE2

Markaya göre filtrele

Hikvision DS-KH6320Y-WTPE2
Hikvision

Hikvision DS-KH6320Y-WTPE2

Model kodu
DS-KH6320Y-WTPE2
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

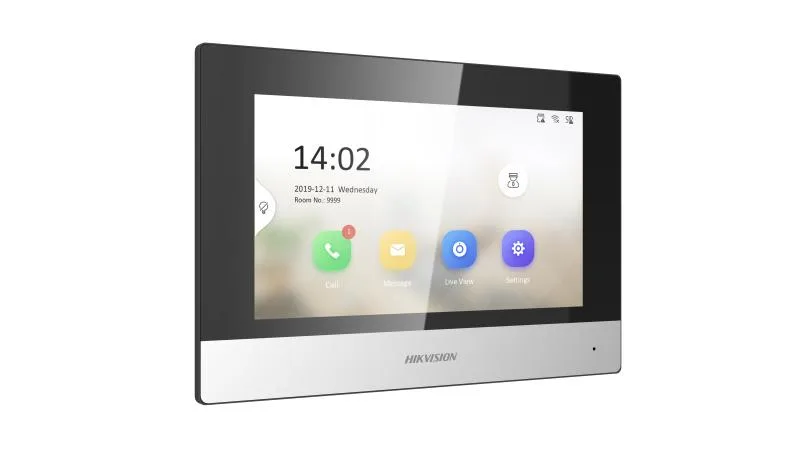

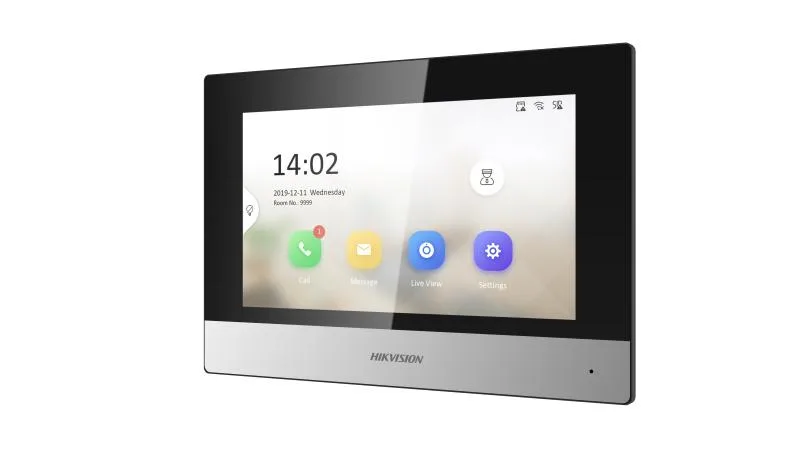

7’ touch screen 2-Wire IP indoor station with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control: receive calls, open the door and live view remotely. Easy wizard for quick set up. Live-view of the door station and cameras in public areas. Support voice messages when no response from the indoor station

Teknik özellikler

Operating system Embedded Linux operation system
ROM 32 MB
RAM 128 MB
CPU Embedded processor
Screen size 7-inch
Operation method Capacitive touch screen
Type Colorful TFT screen
Resolution 1024 × 600
Lens /
FOV /
WDR /
Resolution /
Focal length /
Audio compression standard G.711 U G.711 A
Audio input 1* Built-in omnidirectional microphone
Audio output 1* Buit-in loudspeaker, 8Ω
Audio compression bitrate 64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Event capacity 2 MB RAM (without TF card) for events
Linked network camera capacity 16
Linked indoor extensions capacity 0
Notice capacity 200
Linked doorphone capacity /
Communication protocol TCP/IP, SIP2.0, RTSP
Wired network 1* 10 Mbps through 2-wire interface
Wi-Fi standard Wi-Fi 802.11 b/g/n, 2.400-2.4835 GHz
Bluetooth version /
3G/4G standard /
Zigbee /
Alarm input 8-ch alarm inputs
TAMPER /
RS-485 1
USB /
TF card Max to 32 GB (Reserved)
Alarm output 0
Two-wire IP interface 1
Button 0
Installation Surface mounting
Indicator 0
Weight 327 g
Protective level /
Power supply method Two-wire interface
Working temperature -10 °C to 50 °C (14 °F to 122 °F)
Working humidity 10% to 90% (no-condensing)
Dimensions 200 mm × 140 mm × 23.6 mm (7.87" × 5.51" × 0.93")
Battery /
Power supply 24 VDC, 1.5 A
Application environment Indoor
Power consumption ≤ 8 W
Language English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Portuguese, Slovak

Dokümanlar

Data Sheet - Two-wire indoor station Quick Start Guide - Two-wire indoor station User Manual - Two-wire indoor station
