Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

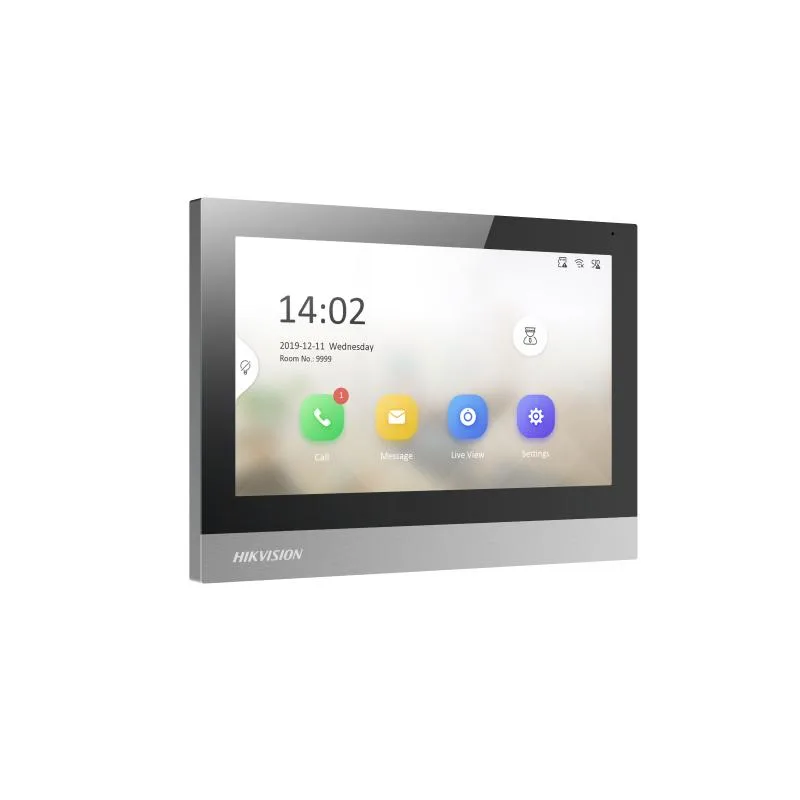

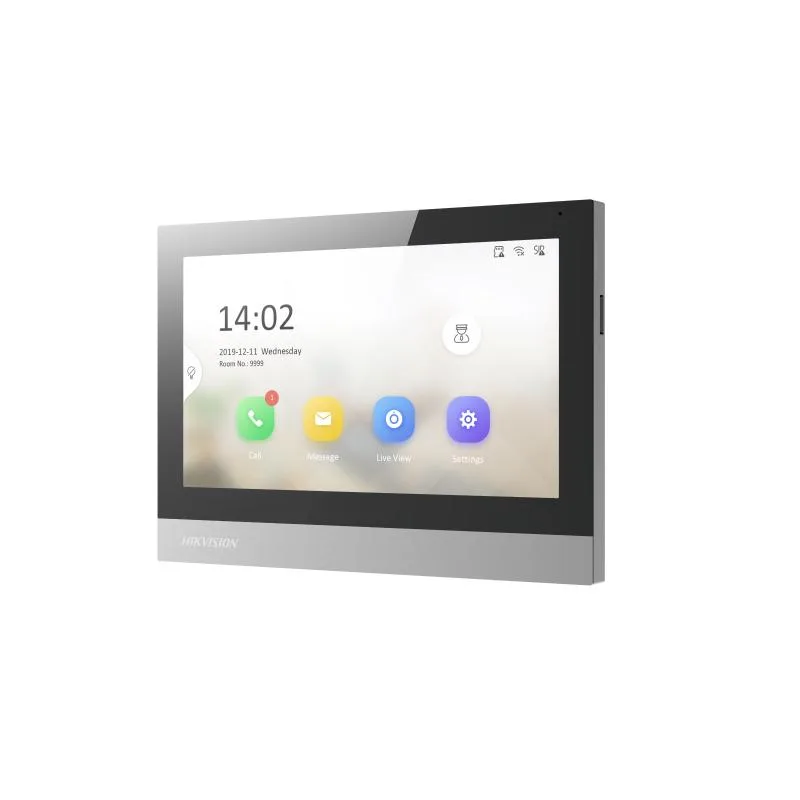

7-inch TFT touch screen with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control. Receive calls, open the door and live view remotely. Standard IEEE802.3at PoE power supply and power the lock. Supports up to 16 indoor extensions linkage. Elevator access control. Supports surface and flush mounting. Rich interfaces: alarm in, RS-485, relays, TF slot
Teknik özellikler
| Operation system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024*600 |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | H.265；H.264 |
| Focal length | / |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 16/32/64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | / |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | WiFi 802.11b/g/n |
| Wireless network | 1 RJ-45 10/100Mbps self-adaptive |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | / |
| Lock control | 4 relays, Max. 30 VDC 1A |
| Power supply output | Max. 12 VDC 0.5 A |
| Debugging port | 1 |
| Relay | 4 |
| Button | / |
| Installation | Flush mounting, surface mounting, table mounting |
| Indicator | / |
| Weight | Without package: 366.7 g (0.808 lb) |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86") |
| Battery | / |
| Power supply | IEEE802.3at, Standard PoE,12 VDC, 1.5 A |
| Application environment | Indoor |
| Power consumption | ≤ 12 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Material | Plastic casing |
