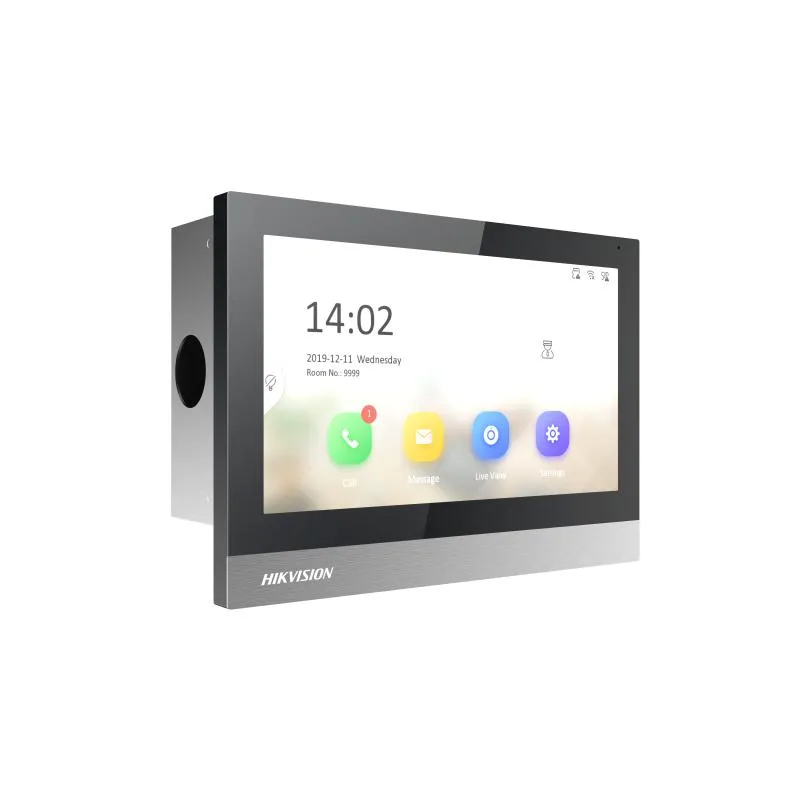

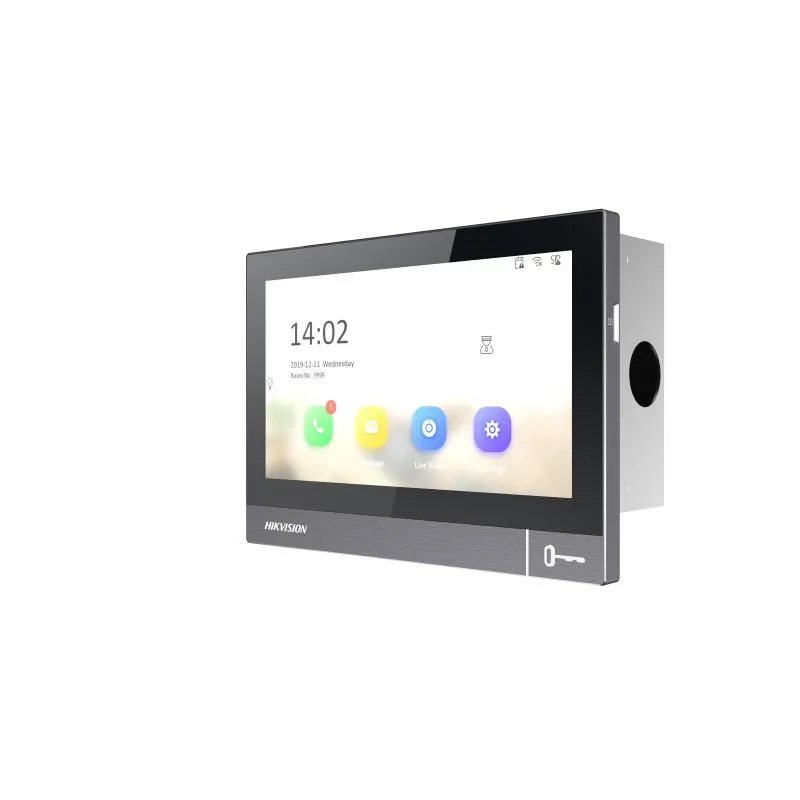

Hikvision DS-KH8380-WTE1/Flush
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
7-inch TFT touch screen with 1024 × 600 resolution. Convenient Hik-Connect APP Mobile Control. Receive calls, open the door and live view remotely. Standard IEEE802.3at PoE power supply and power the lock. Supports up to 16 indoor extensions linkage. Elevator access control. Supports surface and flush mounting. Rich interfaces: alarm in, RS-485, relays, TF slot
Teknik özellikler
| Operation system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024*600 |
| Lens | / |
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | H.265；H.264 |
| Focal length | / |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 16/32/64 Kps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | / |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | WiFi 802.11b/g/n |
| Wireless network | 1 RJ-45 10/100Mbps self-adaptive |
| Bluetooth | / |
| 3G/4G | / |
| Zigbee | / |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF card | Support TF card, up to 128 G |
| Alarm output | / |
| Lock control | 4 relays, Max. 30 VDC 1A |
| Power supply output | Max. 12 VDC 0.5 A |
| Debugging port | 1 |
| Relay | 4 |
| Button | / |
| Installation | Flush mounting, surface mounting, table mounting |
| Indicator | / |
| Weight | Without package: 366.7 g (0.808 lb) |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 178.4 mm × 126.4 mm × 21.8 mm (7.02" × 4.98" × 0.86") |
| Battery | / |
| Power supply | IEEE802.3at, Standard PoE,12 VDC, 1.5 A |
| Application environment | Indoor |
| Power consumption | ≤ 12 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Material | Plastic casing |
