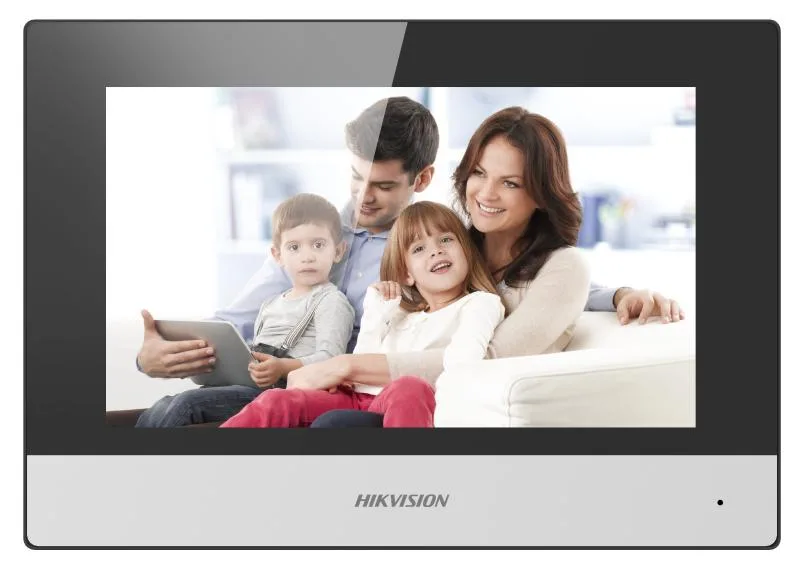

Hikvision DS-KIS602(B)
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
IP video intercom for villa or house. One call button for easier calls. Stores messages and captured pictures in the TF card. Convenient Hik-Connect APP Mobile Control. Including: DS-KD8003-IME1(B)/Surface × 1, DS-KH6320-WTE1 × 1, 4-port standard PoE switch × 1, DS-KABD8003-RS1 x 1, Administrator card x 1, Key fob x 5, PSUx1
Teknik özellikler
| Operation system | Embedded Linux operation system |
|---|---|
| Flash | 32 MB |
| RAM | 256 MB |
| Camera | 2MP HD camera |
| Night vision | Low illumination IR supplement mode:3 m |
| Backlight compensation | Support |
| Digital noise reduction | Support |
| WDR | Support |
| Field of view | Horizontal: 146°, Vertical: 82° |
| Video Compression Standard | H.264; H.265; MJPEG |
| Motion detection | Support |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1 |
| Audio compression Rate | 64 Kbps |
| Network protocol | TCP/IP, RTSP, IPV6,ONVIF |
| Wired network | 10/100 Mbps Ethernet |
| Network interface | 1 RJ45 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Debugging port | 1 |
| Lock control | 2 (2 relay, max to 30 V, 2 A) |
| TAMPER switch | 1 |
| Power interface | 12 VDC power output (max to 12 V, 500 mA) |
| Power consumption | ≤ 5 W |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimension | Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") Cover: 117 × 107 × 4 mm (4.61" × 4.21" ×0.16") Installation Frame: 117 × 107 × 32.7mm (4.61" × 4.21" ×1.29") |
| Installation | Surface mounting |
| Protection level | IP65 |
| Indicator | 0 |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Operation system | Embedded Linux operation system |
| Memory | 128 MB |
| Flash | 32 MB |
| Display screen | 7-inch colorful TFT screen |
| Display resolution | 1024 × 600 |
| Operation method | Capacitive touch screen |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio quality | Noise suppression and echo cancellation |
| Audio compression standard | G.711 U, G.711 A |
| Audio compression Rate | 64 Kbps |
| Wired network | 10/100 Mbps self-adaptive |
| Wireless network | Wi-Fi 802.11 b/g/n |
| Protocol | TCP/IP, SIP, RTSP |
| RS-485 | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 |
| Alarm input | 8-ch alarm inputs |
| Relay output | 2 |
| TF card | Max to 32 G, SD 2.0 or lower version |
| Power consumption | ≤ 6 W |
| Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working humidity | 10% to 90% |
| Dimension (L x W x H) | 200 mm × 140 mm × 23.6 mm (7.9" × 5.5" × 0.9") |
