Hikvision DS-KIS603-P(C)

Markaya göre filtrele

Hikvision DS-KIS603-P(C)
Hikvision

Hikvision DS-KIS603-P(C)

Model kodu
DS-KIS603-P(C)
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

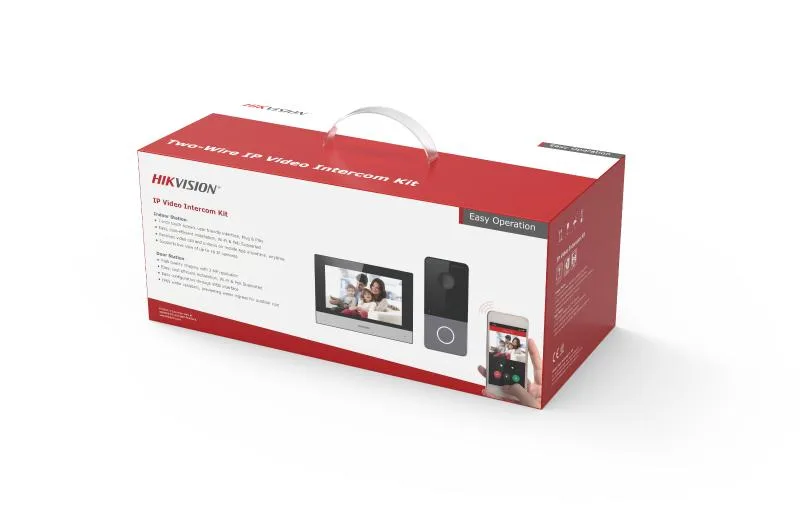

IP video intercom for villa or house. One call button for easier calls. Convenient Hik-Connect APP Mobile Control. Including: DS-KV6113-WPE1(C) x1, DS-KH6320-WTE1 x1, DSKABV6113-RS × 1, Administrator card x 1, Key fob x 5, PSU x2

Teknik özellikler

Operation system Embedded Linux operation system
Flash 32 MB
RAM 256MB
Camera 2MP HD camera
Night vision Low illumination IR supplement mode:3 m
Backlight compensation Support
Digital noise reduction Support
WDR True WDR
Field of view Horizontal: 131° Vertical: 78°
Video Compression Standard H.264; H.265; MJPEG
Stream Main stream: 1080p@25fps, 720p@25fps Sub stream: 720@25fps,480@25fps
Motion detection Support
Flash-avoid frequency 50 Hz, 60 Hz
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio quality Noise suppression and echo cancellation
Audio compression standard G711U、G711A、G726、AAC_LC、AAC_LD、OPUS、G722.1
Audio compression Rate 64 Kbps
Network protocol TCP/IP, RTSP, IPV6,ONVIF
Wired network 10/100 Mbps Ethernet
RS-485 1
Alarm input 4
Debugging port 1
TAMPER switch 1
Power consumption ＜ 10 W
Working temperature -40° C to 53° C(-40° F to 127.4° F)
Working humidity 10% to 95%
Dimension 138 mm × 65 mm × 27 mm
Installation Surface mounting
Protection level IP65
Indicator 2
Power supply IEEE802.3af, standard PoE 12 VDC
Operation system Embedded Linux operation system
Memory 128 MB
Flash 32 MB
Display screen 7-inch colorful TFT screen
Display resolution 1024 × 600
Operation method Capacitive touch screen
Audio input Built-in omnidirectional microphone
Audio output Built-in loudspeaker
Audio quality Noise suppression and echo cancellation
Audio compression standard G.711 U
Audio compression Rate 64 Kbps
Wired network 10/100 Mbps self-adaptive
Wireless network Wi-Fi 802.11 b/g/n
Protocol TCP/IP, SIP, RTSP
RS-485 1 RJ-45 10/100 Mbps self-adaptive
RS-485 1
Alarm input 8-ch alarm inputs
Relay output 2
TF card Max to 32 G, SD 2.0 or lower version
Power consumption ≤ 6 W
Working temperature -10 °C to 55 °C (14 °F to 131 °F)
Working humidity 10% to 90%
Dimension (L x W x H) 200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")

Dokümanlar

Quick Start Guide - IP Video Intercom Kit R0 Indoor Station Firmware V2.2.124_build260814 Release Note - IP Video Intercom Kit
