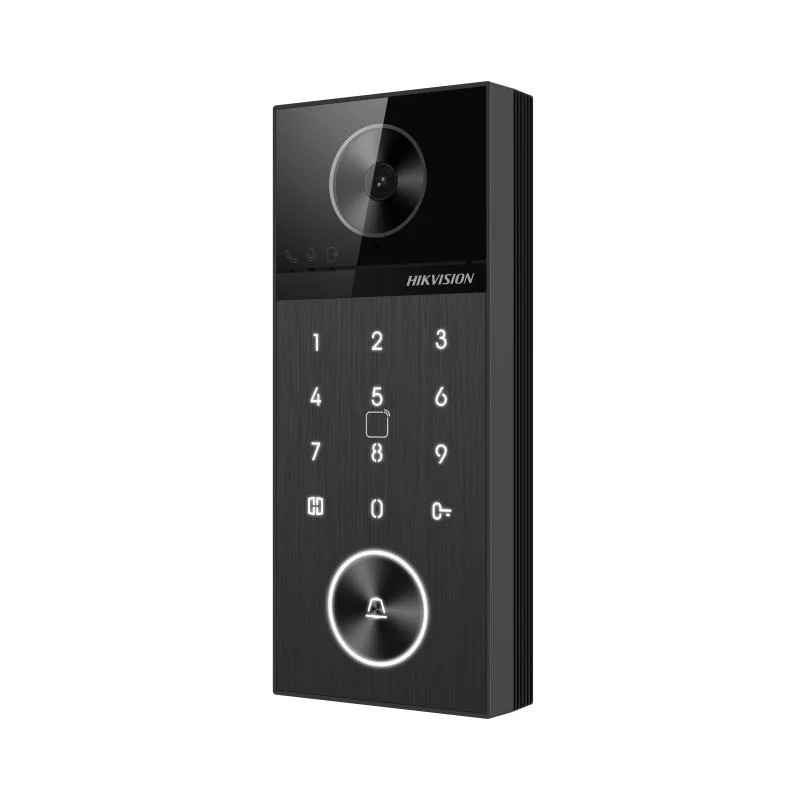

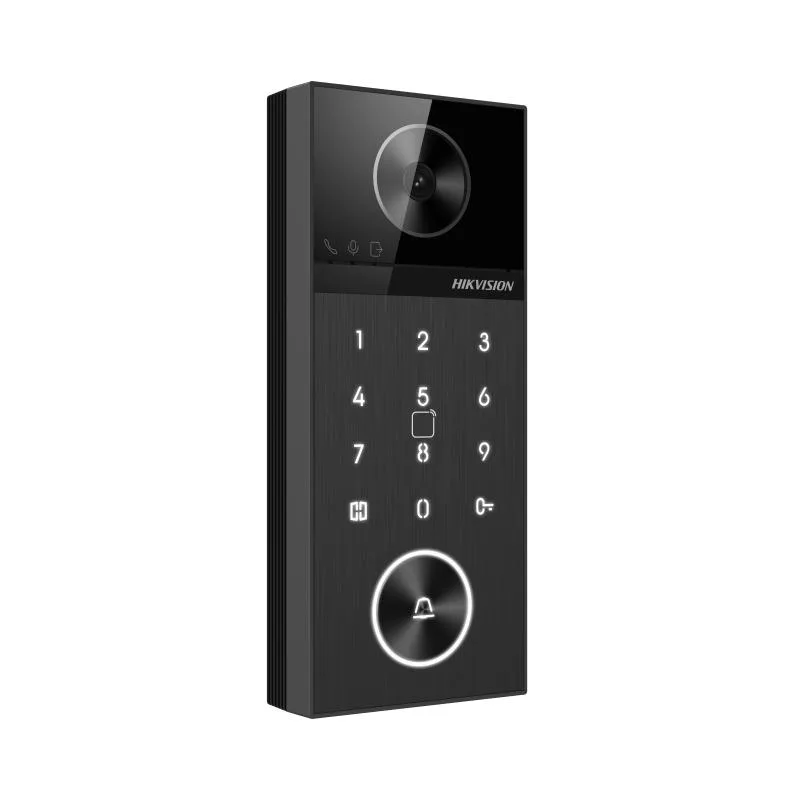

Hikvision DS-KV6124-E1

Markaya göre filtrele

Hikvision DS-KV6124-E1
Hikvision

Hikvision DS-KV6124-E1

Model kodu
DS-KV6124-E1
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

4MP higher resolution with 150° viewing angle. 2 locks control. Multiple unlocking methods: Card, PIN code, Hik-Connect, indoor station. Video recording and playback via Hik-Connect or PC web. Standard IEEE802.3at PoE power supply

Teknik özellikler

Operation system Linux
Processor Embeded high performance processor
Lens 1
Resolution Main stream: 4MP(2688x1520P), 2MP(1920x1080P), 1MP(1280x720P) Sub stream: 2MP(1920x1080P), 1MP(1280x720P), 0.3MP(640x480P)
FOV Horizontal: 150°; Vertical: 75°
Wide dynamic range (WDR) Support 120 dB
Supplement light IR light, up to 3 m
Video compression standard H.264; H.265; MJPEG
Audio input 1 built-in omnidirectional microphone
Audio compression standard G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1, G.729
Audio output 1 built-in loudspeaker
Audio compression bitrate 8~64 Kps
Audio quality Noise suppression and echo cancellation
Volume adjustment Adjustable
Audio Performance 50cm 80dB (Maximum: 50cm 83dB)
Audio Sample Rate 16kHz、8kHz
User capacity 2000
Face capacity /
Card capacity 6000
Network protocol TCP/IP, RTSP, ipv6,onvif
Wi-Fi /
Bluetooth /
3G/4G /
Wi-Fi Protocol /
Wi-Fi Type /
Authentication mode Card, PIN code, Hik-Connect, indoor station
Card reading frequency 13.56 MHz
Card reading distance M1card：2 to 2.5 cm
Card type M1 Card
Mobile APP Hik-Connect
Motion Detection Support
Playback Support
Call Elevator Support
Smart Features Sound Classification Detection: Scream, Glass Breaking Sound, Crying Sound (Recommended Detection Distance: 3 m)
Alarm input 4, (include Exit button and Door contact input)
Network interface 1 RJ-45, 10/100 Mbps self-adaptive
TAMPER 1
Exit button 1
RS-485 1
USB /
Wiegand /
TF card Support TF card, up to 128 G
Alarm output /
Lock control 2 relay, Max. 30 VDC 2 A
Door contact input 1
Supported TF Format FAT32;exFAT
Button 1 physical button
Installation Surface mounting
Indicator 3
Weight With package: 273g (0.61 lb),Without package: 431 g (0.95 lb)
Protective level IP65
Working temperature -40 °C to 60 °C (-40 °F to 140 °F)
Working humidity 10% to 90% (no-condensing)
Dimension (W × H × D) 164 mm × 69 mm × 24.7 mm (6.46" × 2.72" × 0.97")
Battery /
Application environment Outdoor
Power consumption ＜ 10 W
Language English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish
Power supply 12 VDC, 1.2 A,IEEE 802.3 at, standard PoE
Material Front Shell and Rear Shell Material: Plastic Viewing Window Panel Material: Glass
Power Supply Output Max. 12 VDC, 1 A

Dokümanlar

Data Sheet - Villa door station How To - Villa door station
