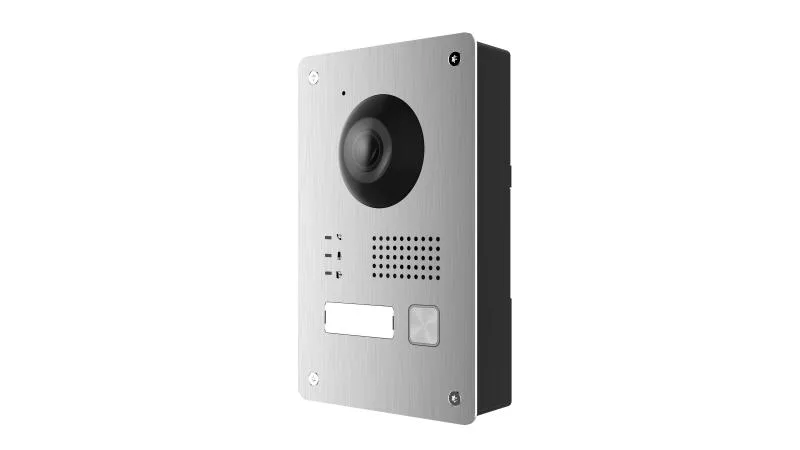

Hikvision DS-KV8103Y-IMPE2
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
High quality imaging with 2 MP resolution. One call physical button for easier calls. Two-lock control. IP65 protection level. Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply. High-quality stainless steel panel
Teknik özellikler
| Operating system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded MCU Processor |
| Screen size | / |
| Operation method | / |
| Type | / |
| Resolution | / |
| Lens | 2MP HD camera |
| Resolution | Main stream: 1280*720P, 1920*1080p Sub stream: 640*480 |
| FOV | Horizontal: 140° Vertical: 85° |
| WDR | Support |
| Supplement light | Low illumination IR supplement distance:3 m |
| Video compression standard | H.264 |
| Audio compression standard | G.711 U, G.711 A |
| Audio input | 1* Built-in omnidirectional microphone |
| Audio output | 1* Built-in loudspeaker, 8Ω |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | / |
| Face capacity | / |
| Fingerprint capacity | / |
| Event capacity | 200 |
| Linked indoor station capacity | 1 |
| Communication protocol | TCP/IP, RSTP, SIP2.0 |
| Wired network | Support, 2-Wire wiring |
| Wi-Fi standard | / |
| Bluetooth version | / |
| 3G/4G standard | / |
| Alarm input | 2 (Support Exit button or door contact input) |
| Network interface | 1*10 Mbps through 2-wire interface |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | / |
| USB | / |
| Wiegand | / |
| TF card | / |
| Alarm output | 1*12 V/500 mA output |
| Lock control | 2 |
| Door contact input | 2 |
| Power interface | 1 |
| Button | 1 |
| Installation | Surface mounting, flush mounting |
| Indicator | 3 |
| Weight | 545 g |
| Protective level | IP65 |
| Working temperature | -40° C to +60° C(-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Dimensions | 169 × 110 × 31 mm (6.54” × 4.33” × 1.22”) |
| Battery | / |
| Power supply | From indoor station |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
