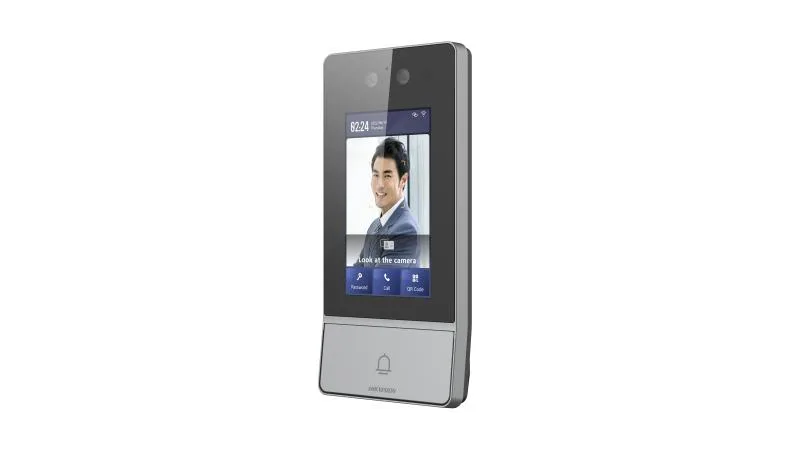

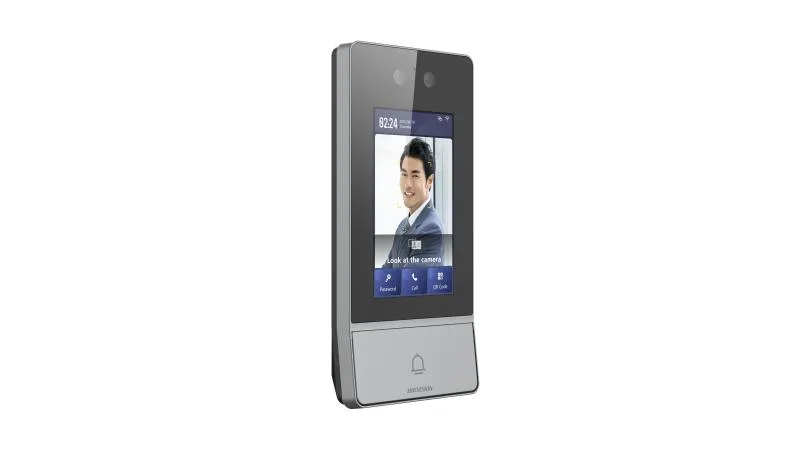

Hikvision DS-KV9503-WBE1
Markaya göre filtrele
ABB
Absen
Ajax
APart Audio
Aruba
Aselsan
AselsanNET
Astor Şarj
ASUS
Atlas Turnike
Bawcon
Biwin
Bosch
Bticino
BULLWARK
CamBox
CAME
Cenova
Commax
Dahua
Dayline
Dayzip
Decon
Dell
DSC Alarm
EATON
Endikal
Eşarj
EZVIZ
FAAC
Fanvil
Finder
Formrack
Fujitron
Gigaset
Global
GVD
Hikvision
HiLook
Hochiki
HP
Imou
Inform
Inter-M
Jabra
Kamera Kutusu
Karel
Lande
Legrand
Leyard
LifeSmart
Mavili
Multitek
Netelsan
NETGEAR
Neutron
Nice
Notifier
Omada
Osram
Özak
Panasonic
Paradox
Philips
Proxsen
QNAP
Rapoo
Reyee
Ruijie
Schneider Electric
Seagate
Suprema
Teknim
Teknosec
Teletek
Tenda
Tescom
Tiandy
TOA
Toshiba
TP-Link
Ttec
Ubiquiti
Unilumin
Uniwiz
UNV
Vestel
vGUARD
Westa
Western Digital
Wisetech
ZES
ZKTeco
ZYXEL
Eşleşen marka yok.
Ürün açıklaması
Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.
4.3-inch colorful LCD screen with 800 × 480 resolution. 2 × 2 MP camera with IR supplement. One-touch physical button for easier calls. Standard PoE power supply. IK08 & IP65 higher protection level. Multiple authentication methods: Face, Pin code, Card, QR code, Bluetooth. Call directly to Hik-Connect APP without indoor station
Teknik özellikler
| Operation system | Linux |
|---|---|
| ROM | 4 GB |
| RAM | 1 GB |
| Processor | Embeded high performance processor |
| Screen size | 4.3-inch |
| Operation method | Capacitive touch screen |
| Type | IPS |
| Resolution | 800 × 480 |
| Luminance | 425 cd/m² |
| Lens | 2 |
| Resolution | 2 × 2 MP |
| FOV | Horizontal: 88°, Vertical: 44° |
| Wide dynamic range (WDR) | Support 120 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | Main stream and sub stream: H.264 Third stream: H.265 |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711u、G.711a、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | G.711u、G.711a、Opus：64kbps；G.722.1、G.726：32kbps；AAC-LD、AAC-LC：16kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| User capacity | 20000 |
| Face capacity | 10000 |
| Fingerprint capacity | / |
| Card capacity | 100000 |
| Message capacity | / |
| Linked indoor station capacity | 500 |
| Sub door station capacity | 16 |
| Network protocol | TCP/IP, RTSP |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | Support：2.0 |
| 3G/4G | / |
| Card reading frequency | 13.56 MHz |
| Face recognition distance | 0.3 to 2 m |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition duration | ＜ 0.2 s per person |
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Reserved |
| Lock control | 2 relays, Max. 30 VDC 2 A |
| Door contact input | 2 |
| Button | 1 physical button |
| Installation | Surface mounting |
| Indicator | / |
| Weight | Net weight: 0.405 kg Gross weight: 0.752 kg |
| Protective level | IP65, IK08 |
| Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 182 mm × 85 mm × 26 mm (7.16" × 3.34" × 1.01") |
| Battery | / |
| Power supply | 12 VDC, 1.5 A,IEEE802.3af, Standard PoE |
| Application environment | Outdoor |
| Power consumption | ≤ 6 W |
| Language | English,French,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek |
