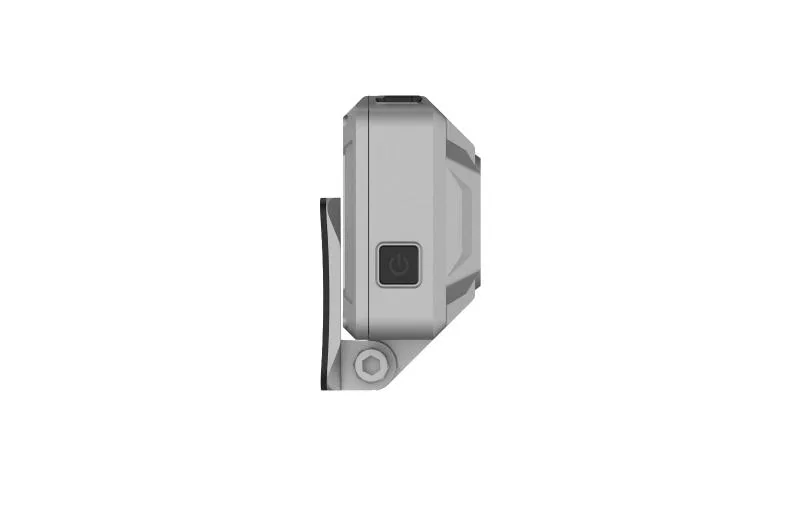

Hikvision DS-MCH208

Markaya göre filtrele

Hikvision DS-MCH208
Hikvision

Hikvision DS-MCH208

Model kodu
DS-MCH208
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

Up to 1080p/30 fps recording resolution. H.264/H.265. High brightness white light supplement.. Wide-range lens with 84° horizontal FOV. IP67. The battery is non-removable

Teknik özellikler

CPU Single core, 32 bit, Main frequency: 0.96 GHz
Image Sensor 1/3" progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.5 Lu×@ (F2.0, AGC ON)
White Light 2 white light(s)
Focal Length 4.15 mm
FOV Horizontal FOV: 84° Vertical FOV: 52° Diagonal FOV: 102°
Aperture F2.0
Video Format PS, MP4
Sub Stream 30 fps (720 × 576)
Video Compression H.264, H.265
Main Stream 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 720 × 576)
Audio Compression for Video Recording G722_1,AAC
Audio Compression for Group Intercom G711_A,G711_MU,G722_1
Audio Bit Rate G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps)
Image Format JPEG
Image Resolution 5 MP, 16 MP, 30 MP, 40 MP
RAM 128 MB
ROM 32 GB
Bluetooth BT4.0
Wi-Fi Frequency Band 2.412 to 2.472 GHz
Cellular Network Only available for models with /GLE: FDD -LTE: B1/B3/B5/B7/B8/B20 TDD -LTE: B38/B40/B41
Positioning Mode GPS
Wi-Fi Protocol 802.11 a/b/g/n
Protocol HTTPS, RTSP, NTP, FTP
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Encryption AES128，AES256
Watermark Supported
Audio Type 1 built-in mic(s),1 speaker(s)
Indicator 2 Indicator(s) for Charging/Working/Recording
SIM Card Only available for models with /GLE :1 (Nano-SIM)
Button Power, Picture capture, SoS
Charging Interface Type-C
USB USB 2.0
Laser Positioning Supported
Basic Event SOS alarm
Smart Event Fall detection
Operating System Linux
Power 5 VDC, 2.0 A, max. 10 W
Client HikCentral Pro, HikCentral Master Lite
Speaker 1 Built-in speaker, Max. power consumption: 1.3 W, Max. sound pressure level: 96dB (10 cm)
MIC Supported
Gyroscope Supported
Operating Condition Temperature: -20 °C to +55 °C (-4 °F to +131 °F) Humidity: 90% or less (non-condensing)
Dimension 55 mm × 55 mm × 31 mm (2.2" × 2.2" × 1.2")
Weight 110 g (without mounting) (0.24 lb.)
Vibration Motor Not supported
Battery Duration Up to 12 h in 720p resolution¹
Capacity 3300 mAh
Battery Type Lithium-ion battery, integral
Charging Time ≤ 4 h
RF EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G); EN 55032:2015; EN 61000-3-2:2014; EN 61000-3-3:2013; EN 50130-4:2011 +A1:2014);
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67
Warranty 2 years for the device without battery, 1 year for the battery
