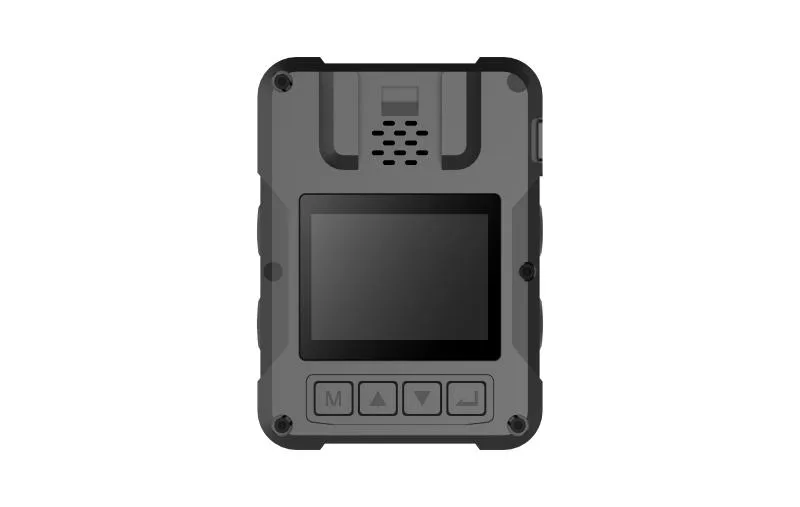

Hikvision DS-MCW406

Markaya göre filtrele

Hikvision DS-MCW406
Hikvision

Hikvision DS-MCW406

Model kodu
DS-MCW406
Sistem
Kamera sistemi

Ürün açıklaması

Türkçe çevirisi hazırlanıyor, şimdilik üretici sitesindeki İngilizce metin gösteriliyor.

2688*1520 2K HD recording. IR function to recognize the facial features in the captured picture even in dim environment. Realtime status transmitted to central platform via Wi-Fi connection (only for DS-MCW406/64G/GPS/WIFI(O-STD) and DS-MCW406/64G/GPS/WIFI/NS(O-STD)). Small size, light weight, and convenient to carry.

Teknik özellikler

CPU Single core, 32 bit, Main frequency: 0.96 GHz
Image Sensor 1/3" progressive scan CMOS
Max. Resolution 2688 × 1520
Min. Illumination Color: 0.07 Lu×@ (F2.0, AGC ON), 0 Lux with supplement light
Day & Night Switch IR Cut Filter Automatically
Zoom 4x Digital
Focal Length 2.4 mm fixed lens
FOV Horizontal FOV: 129° Vertical FOV: 70° Diagonal FOV: 140°
Aperture F2.0
Video Format PS, MP4
Pre-record & Post- record Pre-record: 10 s; Post-record: 60 s
Sub Stream 30 fps (1280 × 720, 720 × 576)
Video Compression H.264, H.265
Main Stream 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720, 720 × 576)
Audio Compression for Video Recording G722_1,AAC
Audio Compression for Audio Recording PCM
Audio Compression for Group Intercom G711_A,G711_MU,G722_1
Audio Bit Rate G711_A(64 kbps) ,G711_MU(64 kbps),G722_1(16 kbps) ,AAC(64 kbps),PCM(128 kbps)
Image Format JPEG
Image Resolution 5 MP, 16 MP, 30 MP, 40 MP
Image Stabilization Algorithm Not supported
Touchscreen Not supported
Screen Size 1.77"
Display Resolution 128 × 160
Screen Brightness Typical value: 400 cd/m²
RAM 128 MB
ROM Default 64 GB, 128/256 GB optional
IR Range Up to 10 m
IR Wavelength 850 nm
Wi-Fi Frequency Band 2.412 to 2.472 GHz
Bluetooth Not supported
Wi-Fi Protocol 802.11 a/b/g/n
Positioning Mode GPS
NFC Not supported
Protocol HTTPS, RTSP, NTP, FTP
API ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP
Watermark Supported
Audio Type 1 built-in mic(s),1 speaker(s)
USB USB 2.0
Indicator 2 Indicator(s) for Charging/Working/Recording/Exception
Button Power, Recording, Audio recording, Picture capture, Menu, Up, Down, Enter
Charging Interface Type-C
Smart Functions Not supported
Group Intercom Not supported
Operating Condition -20 °C to 55 °C (-4 °F to 131 °F). Humidity 95% or less (non-condensing)
Power 5 VDC, 2.0 A, max. 10 W
Dimension 85 mm × 59 mm × 30 mm (3.4" × 2.3" × 1.2")
Weight 125 g (without mounting) (0.27 lb.)
Operating System Linux
Client Hik-Connect, HikCentral Pro, HikCentral Master Lite
MIC Supported
Speaker 1 Built-in speaker, Max. power consumption: 1 W, Max. sound pressure level: 87dB (10 cm)
Vibration Motor Not supported
Gyroscope Not supported
Battery Type Lithium-ion battery, integral
Capacity 2500 mAh
Charging Time ≤ 3 h
Battery Duration Up to 12 h in 720p resolution¹
RF EN 300 328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G);
EMC CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014
Safety CB: IEC 62368-1: 2014+A11, IEC 62368-1: 2018 CE-LVD: EN 62368-1: 2014/A11: 2017, EN IEC 62368-1:2020+A11:2020 CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Drop Test MIL-STD-810G, 2 m drop test
Warranty 2 years for the device without battery, 1 year for the battery
